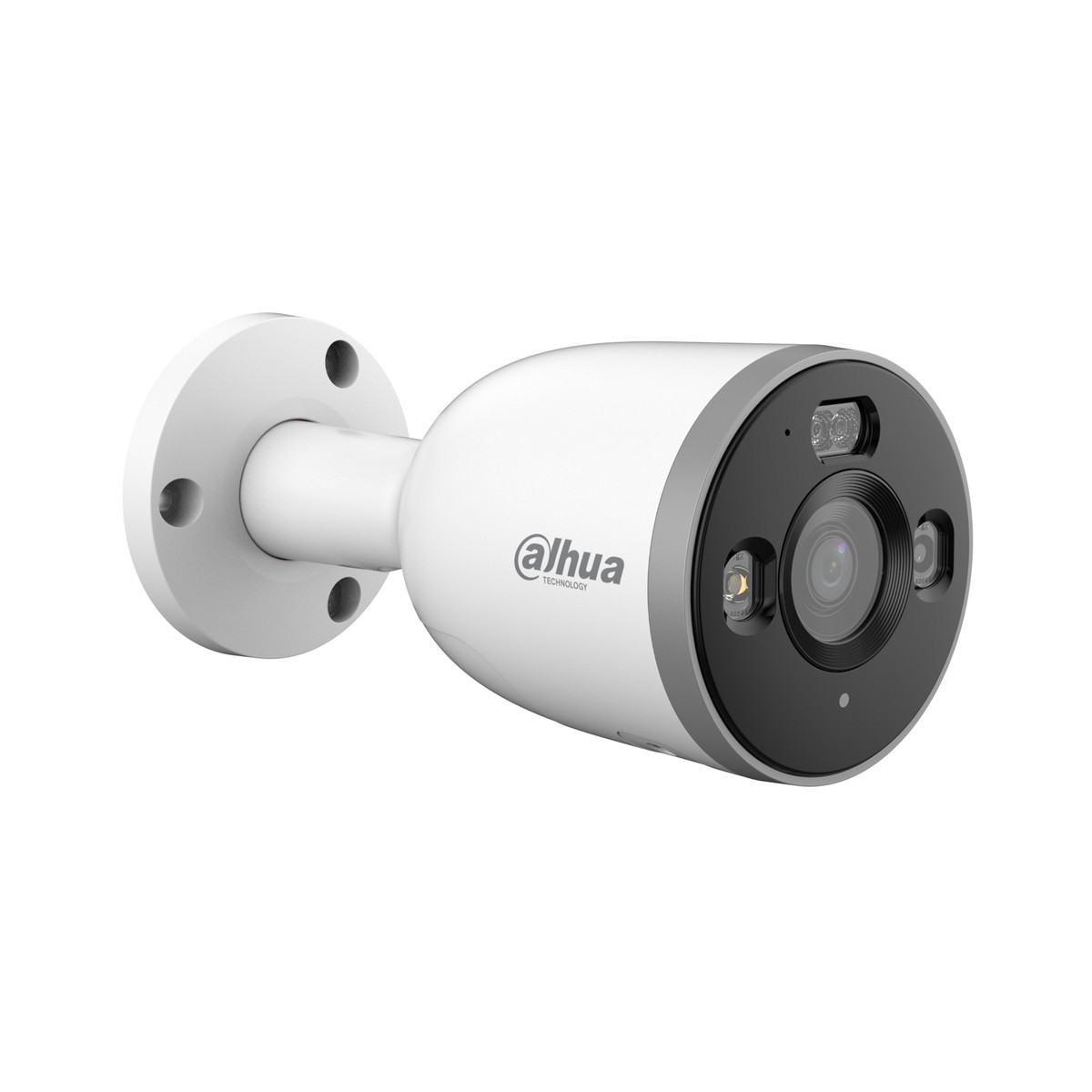

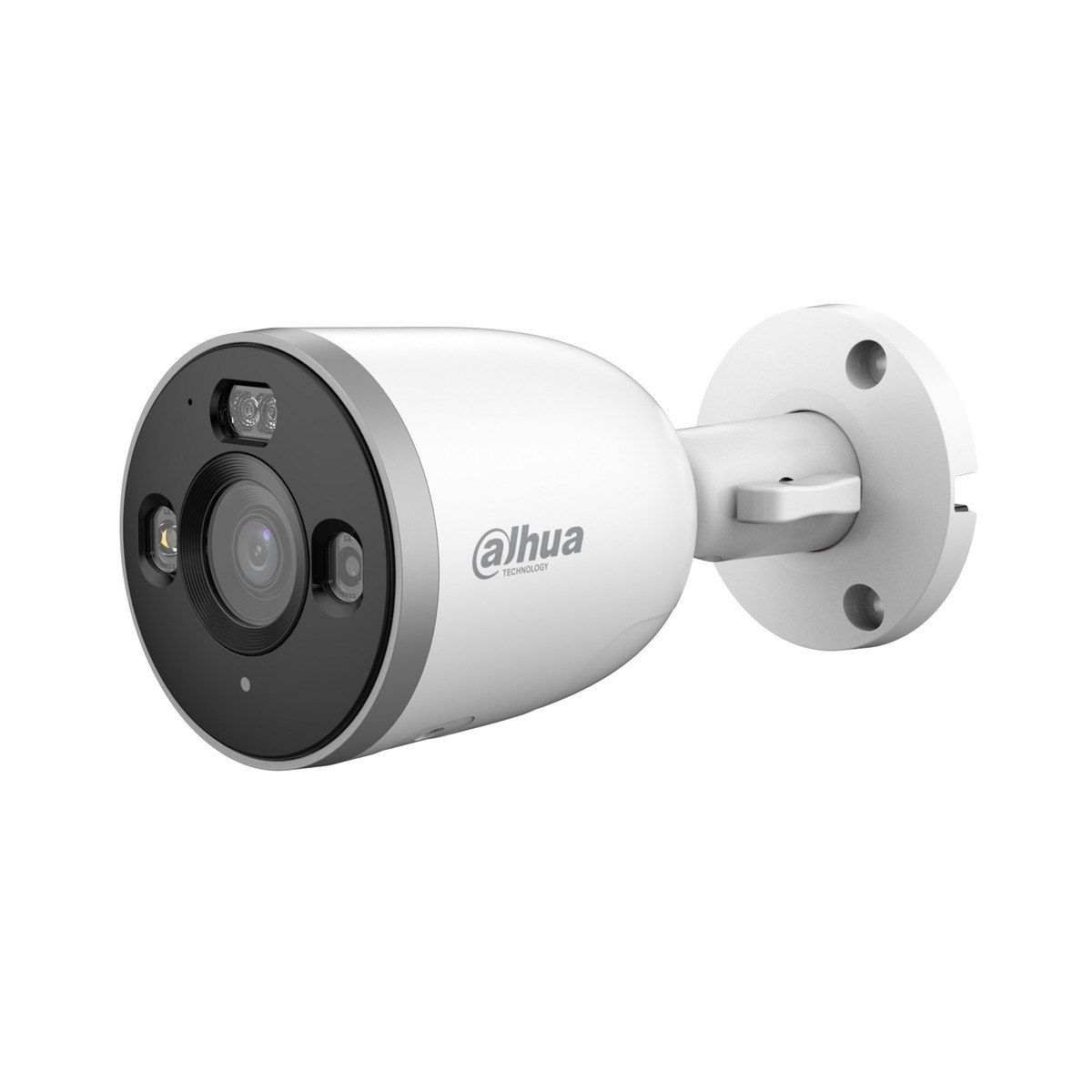

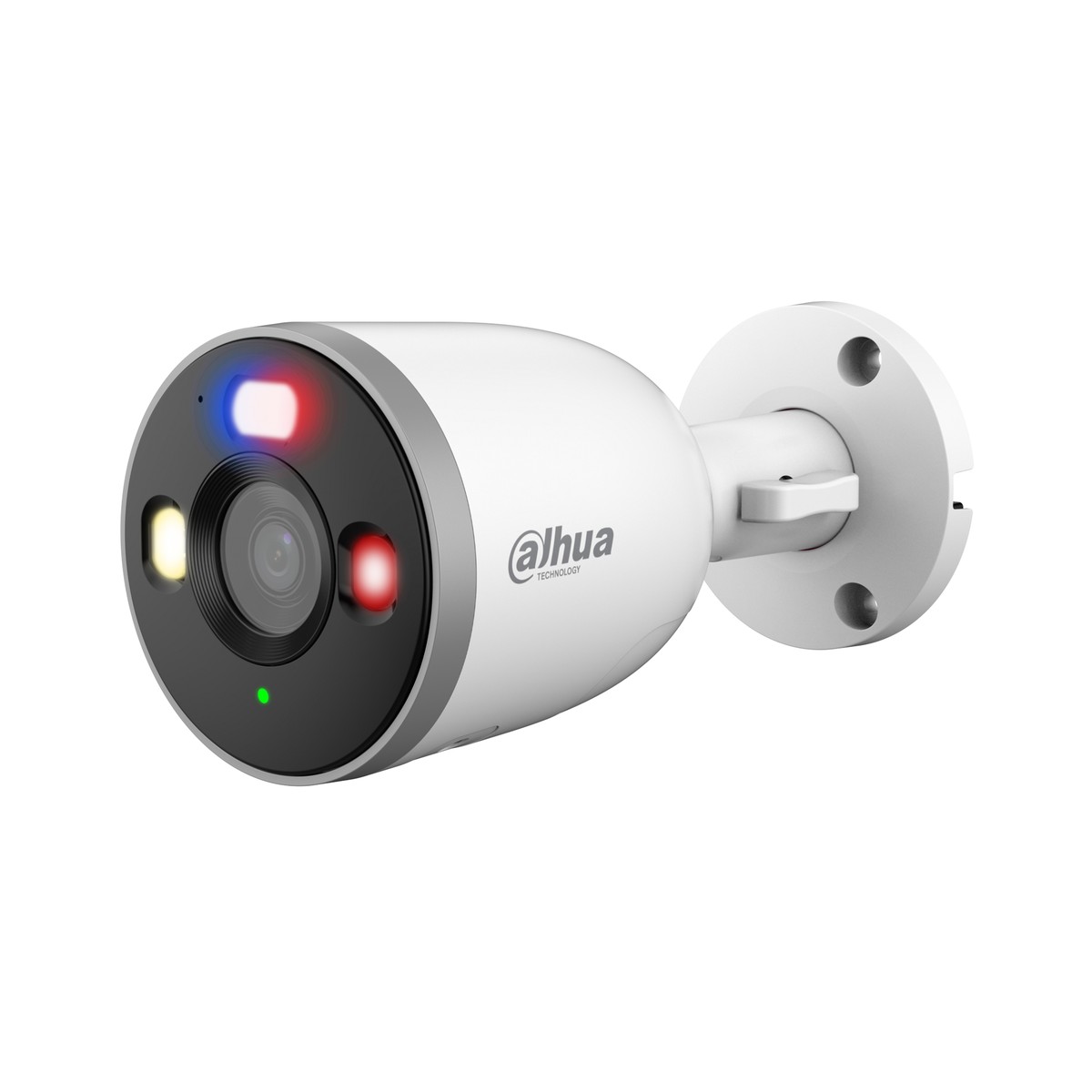

Telecamera bullet IP/Wi-Fi con deterrenza attiva, resistente a polvere e acqua, sensore CMOS 1/2.7″, risoluzione 5 MP (2880×1620) a 25/30fps, H.265/H.264, ottica fissa 2.8 mm F1.6 (H 104°), luminosità 0.007 lux F1.6 (0 lux con illuminatore acceso), portata IR e luce calda fino a 30 m, ICR, DWDR, rilevamento persone e veicoli, motion detection 4 aree, microfono e speaker integrati, 1 porta RJ45 10/100 Mbps, Wi-Fi IEEE 802.11b/g/n/ax 2.4 GHz con abbinamento Bluetooth, ONVIF (Profile S/G/T), alimentatore incluso
Datasheet
| Wi-Fi 6 | |
| Fast pairing with Bluetooth | Seamless integration of speed and anti-interference |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 |
| Min. Illumination | (B/W, 30 IRE) 0 lux (Illuminator on) Up to 30 m (98.43 ft) (IR) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (IR LED); 1 (Warm light) Tilt: 0°–90° |
| Angle Adjustment | Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 104°; V: 56°; D: 124° |
| Field of View | 3.6 mm: H: 89°; V: 48°; D: 104° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio And Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 Main stream: 2880 × 1620@(1-25/30 fps) sub stream: 640 × 360@(1-25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 32 kbps–4096 kbps; |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic Tools: Documents: Power: Position Map × 1 QR Code × 1 Power Adapter × 1 Screw Package × 1 Quick Start Guide × 1 Waterproof Connector Legal and regulation × 1 information × 1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, |
| Wi-Fi | EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android;iOS |
| Certifications | |
| Power Supply | 12 VDC Basic: 2.4 W (12 VDC); |
| Power Consumption | Max.: 7.5 W (12 VDC) (H.265 + warm light intensity + sound and light alarm) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 158.3 mm × Φ76.8 mm (6.23" × Φ3.02") |
| Net Weight | 0.34 kg (0.75 lb) |
