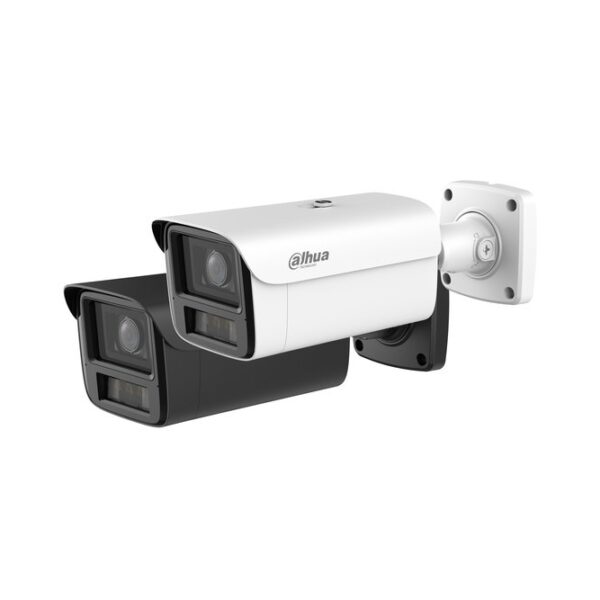

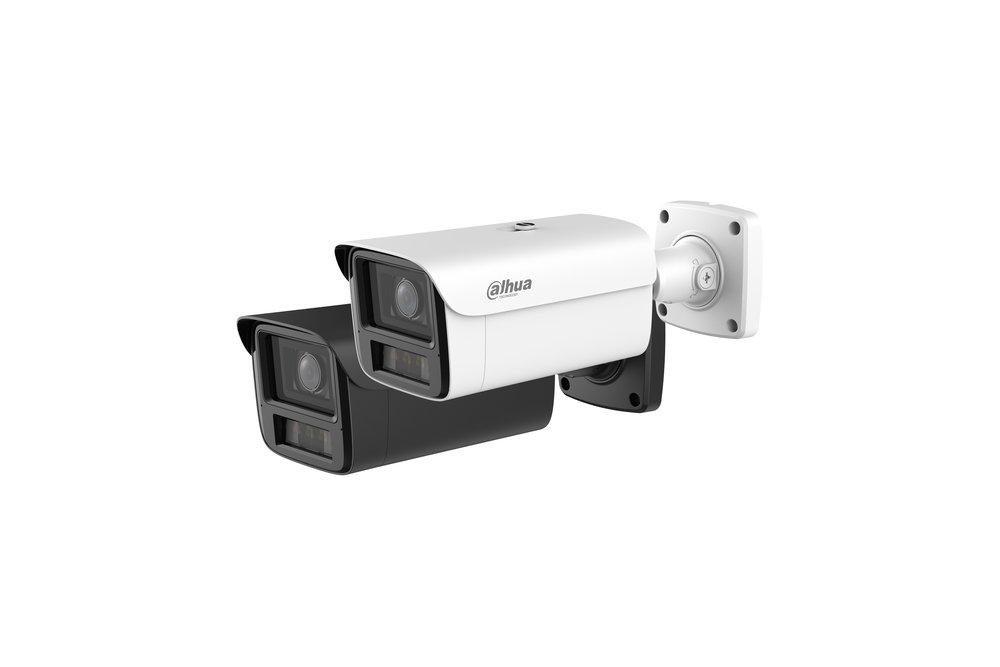

Telecamera bullet IP AI Xinghan WizMind WizColor con Smart Dual Light e deterernza attiva e heater da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, AI Coding, H.265+, ICR, ottica motorizzata 2.7~12 mm ƒ1.2, luminosità 0.0006 lux ƒ1.2 (0 con IR On), portata IR/warm light fino a 60 m, 1 porta RJ-45 10/100 Mbps, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio con doppio microfono e speaker integrati, 1 RS485, privacy mask 4 mosaici o 8 blocchi colorati, 3D NR, WDR 120 dB, EPTZ, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), face detection, people counting, heat map, metadati video, slot micro SD card (max. 1 TB), alimentazione 12 Vdc/PoE+/ePoE <24.2 W
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.0006 lux@F1.2 (Color, 30 IRE) |
| Min. Illumination | 0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 60 m (196.85 ft) (IR) |
| Illumination Distance | Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm-12 mm |
| Max. Aperture | F1.2 |
| Field of View | H: 98°–48°; V: 52°–27°; D: 117°–55° |
| Iris Control | Auto |
| Iris Control Type | P-Iris |
| Close Focus Distance | 0.16 m (0.53 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard syste m (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| EPTZ | Yes Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people |
| IVS (Perimeter Protection) | gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, |
| AcuPick | animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 |
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting |
| People Counting | report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle |
| Video Metadata | attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 4 streams 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960× 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 3 kbps–16384 kbps |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 130 dB |
| Scene Self-adaptation (SSA) | Yes Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| Image Rotation | 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC |
| Security | filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted |
| Security | warning |
| Function | |
| Defog (Glass Heating) | mist from the glass to keep images clear Warm light warning |
| Light Warning | Flash/Solid on duration: 5 s–30 s Flash frequency: high, medium, low Offers 11 sound alarms and supports importing 10 custom sound alarms. |
| Sound Warning | Sound: 0–100 Play times can be set from 1 to 10. |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA |
| Alarm Output | 50 VAC 12 VDC power output, max. current 165 mA, peak |
| Power Output | current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 5.3 W (12 VDC); 6.4 W (PoE) Max. (IR on + siren and light active deterrence + |
| Power Consumption | intelliegece on+ glass heating): 21.3 W (12 VDC); 24.2 W (PoE) Heating: 3.2 W (12 VDC); 3.6 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | requirements. They perform reliably in areas up to 2 km (1.24 mi) from the coast, as well as in regions prone to acid rain exposure. *Professional Protection: The products are fitted with premium-level anti-corrosion protection, making them ideal for use in sensitive environments such as chemical plants, docks, and coastlines. |
| Structure | |
| Casing Material | Metal 302.6 mm × 110.8 mm × 99.1 mm (11.91" × 4.36" × |
| Product Dimensions | 3.90") (L × W × H) |
| Net Weight | 1.65 kg (3.64 lb) |
| Gross Weight | 2.21 kg (4.87 lb) |
| Ordering Information | |
| Type | Model Description 8MP WizColor Vari-focal DH-IPC-HFW5859Z-ZHE-PV- |
| IP CAMERA | Bullet WizMind Network PRO |
| Camera | |
| Accessories (Optional) | DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/1TB MicroSD Card |
| Accessories | |
| DH-PFA121 | DH-PFA152-E DH-PFM320D-EN |
| Water-proof Junction Box | Pole Mount Bracket DC12V2A power adapter |
| DHI-TF-P100/1TB | G3416GW PFM900-E |
| MicroSD Card | G3/4" Water Joint Integrated Mount Tester 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
