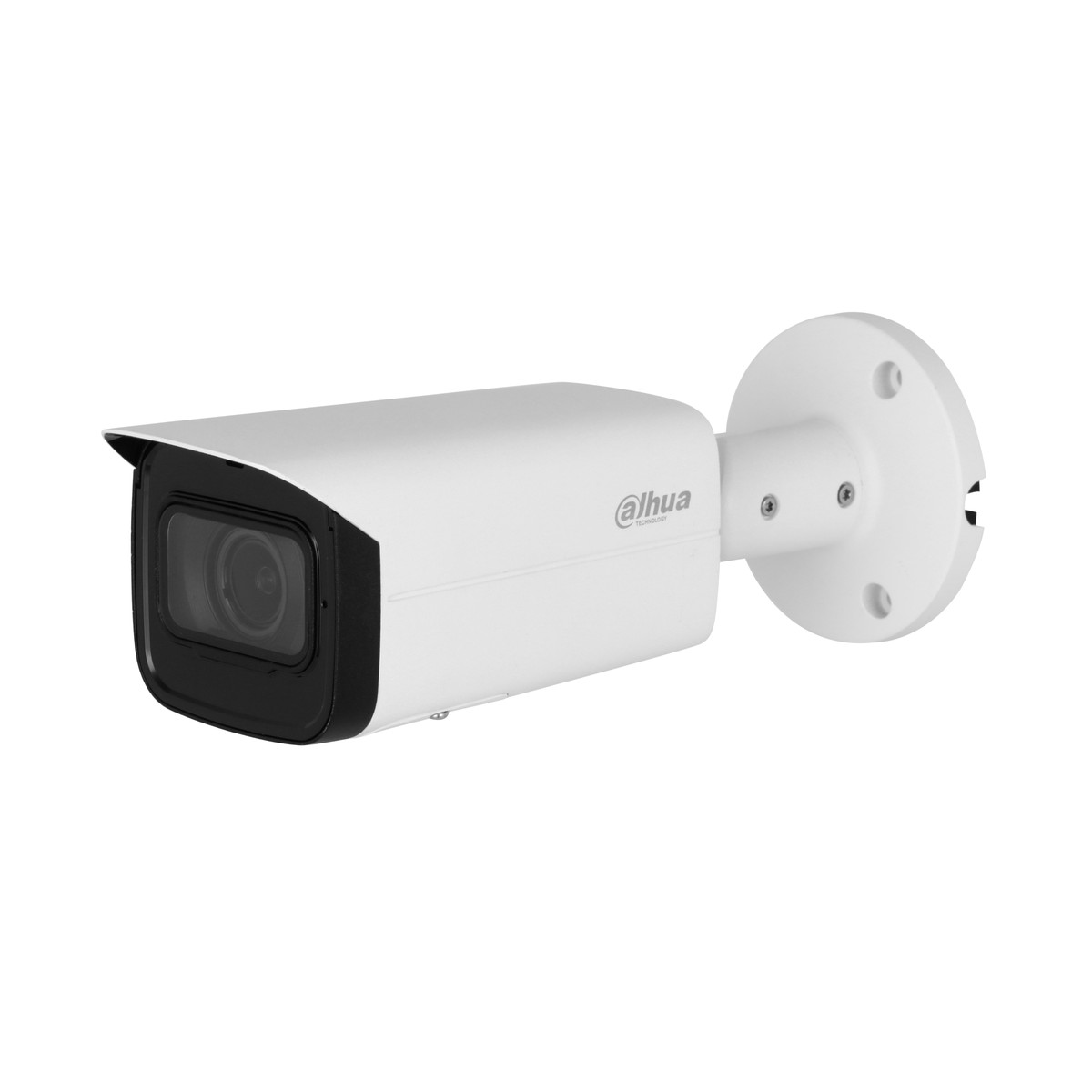

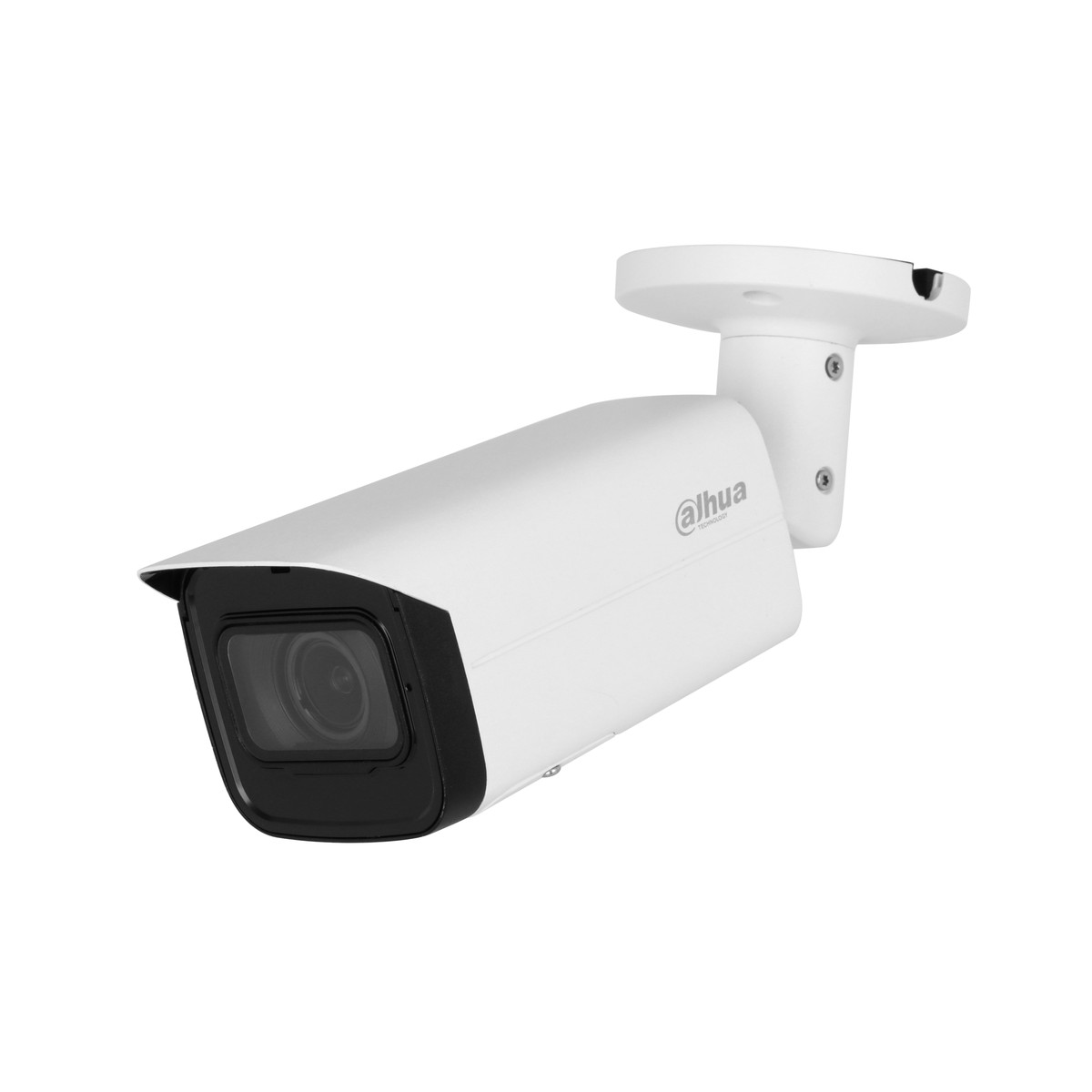

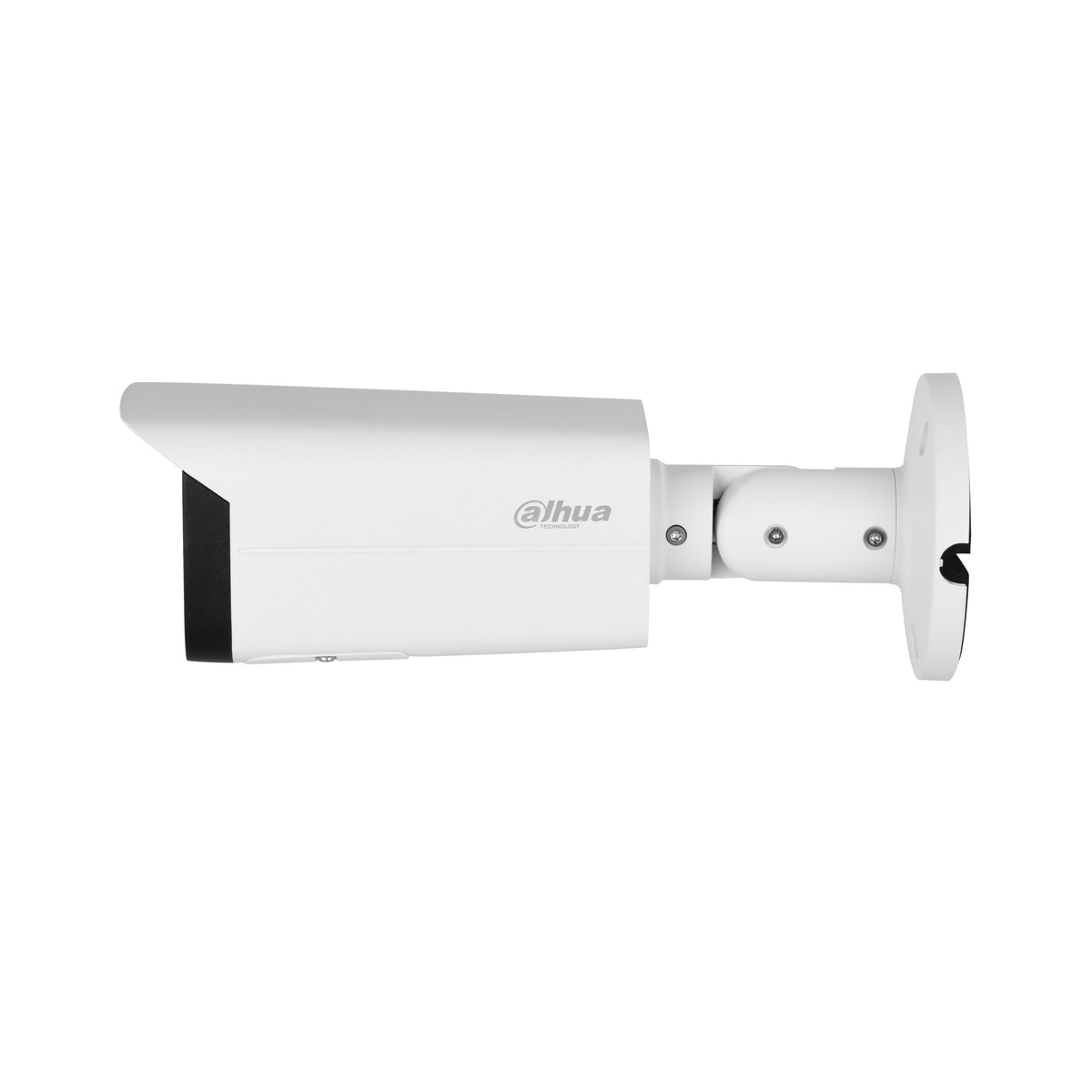

Telecamera bullet IP AI WizSense, sensore CMOS progressivo 1/2.8″, risoluzione 8 MP (3840×2160) a 25/30 fps, AI coding H.265/H.264, Smart H.265+/H.264+, ROI, ottica motorizzata varifocale 2.7~13.5 mm F1.5 (angolo orizzontale 109°~30°), luminosità 0.007 lux F1.5 (0 lux con IR acceso), portata IR fino a 60 m, WDR, 3D NR, HLC, BLC, AFSA anti-flicker, IVS con classificazione uomo/veicolo, SMD 4.0, AI SSA, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio, microfono integrato, micro SD card fino a 256 GB, IP67, alimentazione 12 Vdc/PoE
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.007 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | 56 dB > |
| Illumination Distance | Up to 60 m (196.85 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 Horizontal: 109°–30° |
| Field of View | Vertical: 56° –17° Diagonal: 131° –35° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | accurate detection of vehicle and human) |
| AI SSA | Yes With AI NVR, quickly pick up the human/vehicle targets |
| Quick Pick | that users are interested in from SMD events Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) Smart H.265+ |
| Smart Codec | Smart H.264+ AI H.265 |
| AI Coding | AI H.264 Main stream: 3840 × 2160 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Video Frame Rate | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p |
| Resolution | (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR H.264: 3 kbps–8192 kbps |
| Video Bit Rate | H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | |
| AFSA | Yes 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | -ZS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; |
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | IOS; Android |
| Port | |
| Audio Input | 1 channel (RCA port) (Only – ZAS supports) |
| Audio Output | 1 channel (RCA port) (Only – ZAS supports) 1 channel in: wet contact, 5 mA 3 V–5 VDC (Only – ZAS |
| Alarm Input | supports) 1 channel out: wet contact, 300 mA 12 VDC (Only – ZAS |
| Alarm Output | supports) |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) Basic: 4 W (12 VDC); 4.9 W (PoE) |
| Power Consumption | Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal 244.1 mm × 79.0 mm × 75.9 mm |
| Product Dimensions | (9.61" × 3.11" × 3.00") (L × W × H) |
| Net Weight | 820 g (1.81 lb) |
| Gross Weight | 1090 g (2.40 lb) |
| Ordering Information | |
| Type | Model Description 8MP IR Vari-focal Bullet WizSense DH-IPC-HFW3841T-ZAS-S2 Network Camera |
| 8MP Camera | 8MP IR Vari-focal Bullet WizSense DH-IPC-HFW3841T-ZS-S2 Network Camera PFA130-E Junction Box PFA135 Junction Box PFA152-E Pole Mount |
| Accessories | |
| (Optional) | PFM321D 12 VDC 1 A Power Adapter PFM900-E Integrated Mount Tester TF-P100 TLC SD Card |
| Optional: | |
| PFA130-E | PFA135 PFA152-E Junction Pole |
| Junction | Box Mount |
| PFM321D | PFM900-E TF-P100 |
| 12 VDC 1 A | Integrated TLC SD |
| Power Adapter | Mount Tester |
