Bullet IP AI 180° 2x4 MP 2x3.6 mm LED Full-color mic - immagine 1

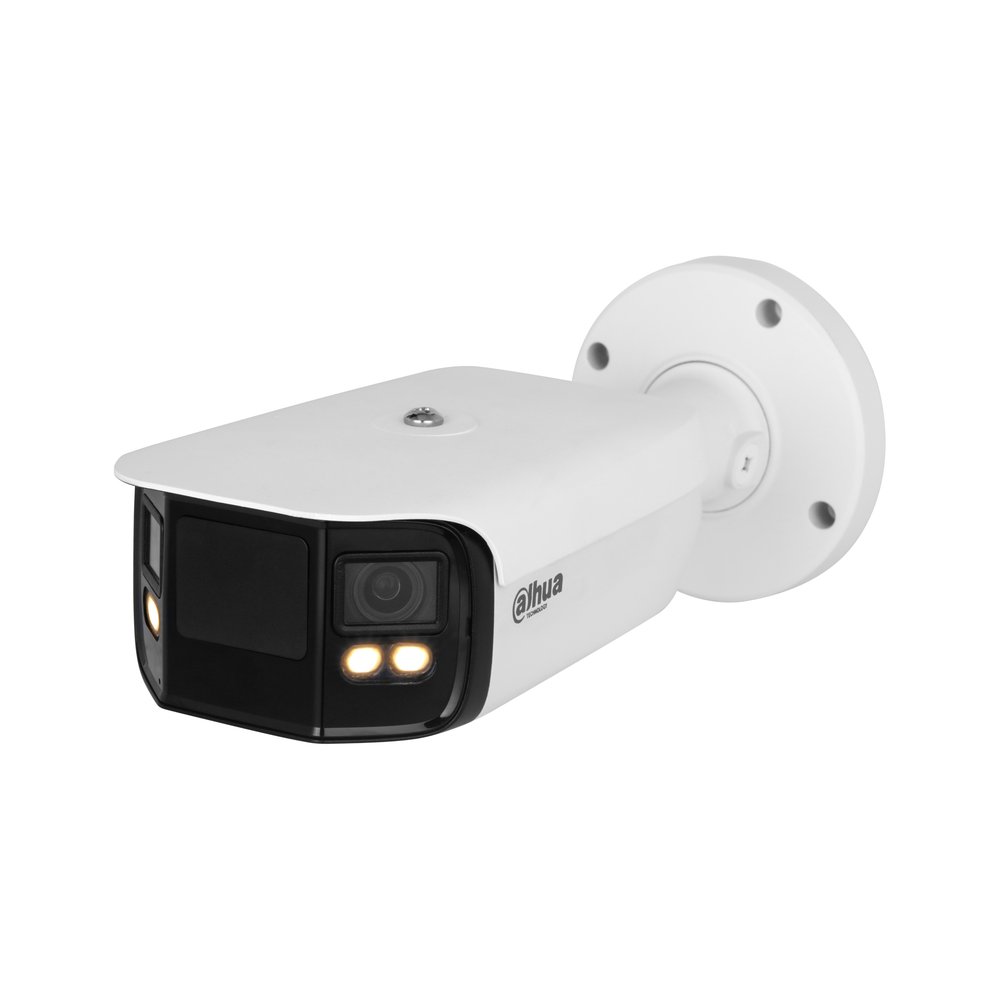

Bullet IP AI 180° 2×4 MP 2×3.6 mm LED Full-color mic

Name: Bullet IP AI 180° 2x4 MP 2x3.6 mm LED Full-color mic
Brand: Dahua
SKU: IPC-PFW5849-A180-E2-ASTE
Price: 673.44 EUR
Availability: BackOrder

Dahua

COD: IPC-PFW5849-A180-E2-ASTE Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

673,44 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.346,88 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera bullet IP AI WizMind Full-color Starlight a doppia ottica splicing (180°) da interno/esterno IP67, 2 sensori CMOS progressivi 1/1.8", risoluzione 2×4 MP a 25fps, H.265+, ottica fissa M16 3.6 mm ƒ1.0, luminosità 0.001 lux ƒ1.0, portata warm light fino a 40 m, 1 porta LAN 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono integrato, 1 porta RS485, privacy mask 4 aree, 3D NR, WDR 140 dB, IVS, heat map, protezione perimetrale, SMD 4.0, people counting, EPTZ, micro SD card (256 GB), alimentazione 12 Vdc/ePoE <11.8 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	Dual 1/1.8" CMOS
Max. Resolution	4096 (H) × 1800 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive Auto/Manual 1/3 s–1/100,000 s
Electronic Shutter Speed	0.0005 lux@F1.0 (Color, 30 IRE)
Min. Illumination	0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	40 m (131.23 ft)
Illuminator On/Off Control	Auto
Illuminator Number	4 (Warm light) Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	3.6 mm H: 180°±10°
Field of View	V: 48°
Max. Aperture	F1.0
Iris Control	Fixed
Close Focus Distance	3.6 m (11.81 ft)
Dori
Distance	(EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	of vehicle and human); loitering detection, people gathering, and parking detection
Heat Map	Yes
Smart Object Detection	Smart abandoned object; smart missing object Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/daily reports. Support the counting of number in area, and 4 rules
People Counting	configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264 WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On:
Video Frame Rate	Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 ×
Resolution	1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)
Bit Rate Control	CBR/VBR H.264: 9 kbps–8192 kbps
Video Bit Rate	H.265: 9 kbps–8192 kbps
Day/Night	Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Network Protocol	Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone
User/Host	20 (Total bandwidth: 80 M)
Storage
Browser	Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channels in: 5 mA 3 V–5 VDC
Alarm Output	1 channel out: 300 mA 12 VDC
Power
Power Supply	12 VDC (±30%)/PoE+ (802.3at)/ePoE Basic: 4.8 W (12 VDC); 5.5 W (PoE)
Power Consumption	Max. (WDR + intelligence + warm light + SPK): 12.3 W (12 VDC); 13.8 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Protection	IP67
Structure
Casing	Metal + plastic 301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" ×
Product Dimensions	4.73") (L × W × H)
Net Weight	1420 g (3.13 lb)
Gross Weight	1570 g (3.46 lb)
Ordering Information
Type	Model Description DH-IPC-PFW5849P-A180- 2×4MP Full-Color Duo Splicing E2-ASTE WizMind Network CAMERA, PAL
8MP Camera	IPC-PFW5849P-A180-E2- 2×4MP Full-Color Duo Splicing ASTE WizMind Network CAMERA, PAL PFA5300R Junction Box PFA157 Pole Mount Bracket
Accessories
(Optional)	TF-P100 MicroSD Memory Card PFM321D 12 VDC 1A Power Adapter
Optional:
PFA5300R	Integrated Pole Mount
Junction Box	Mount Tester Bracket
TF-P100	PFM321D
MicroSD	12V DC 1A
Memory Card	Power Adapter
