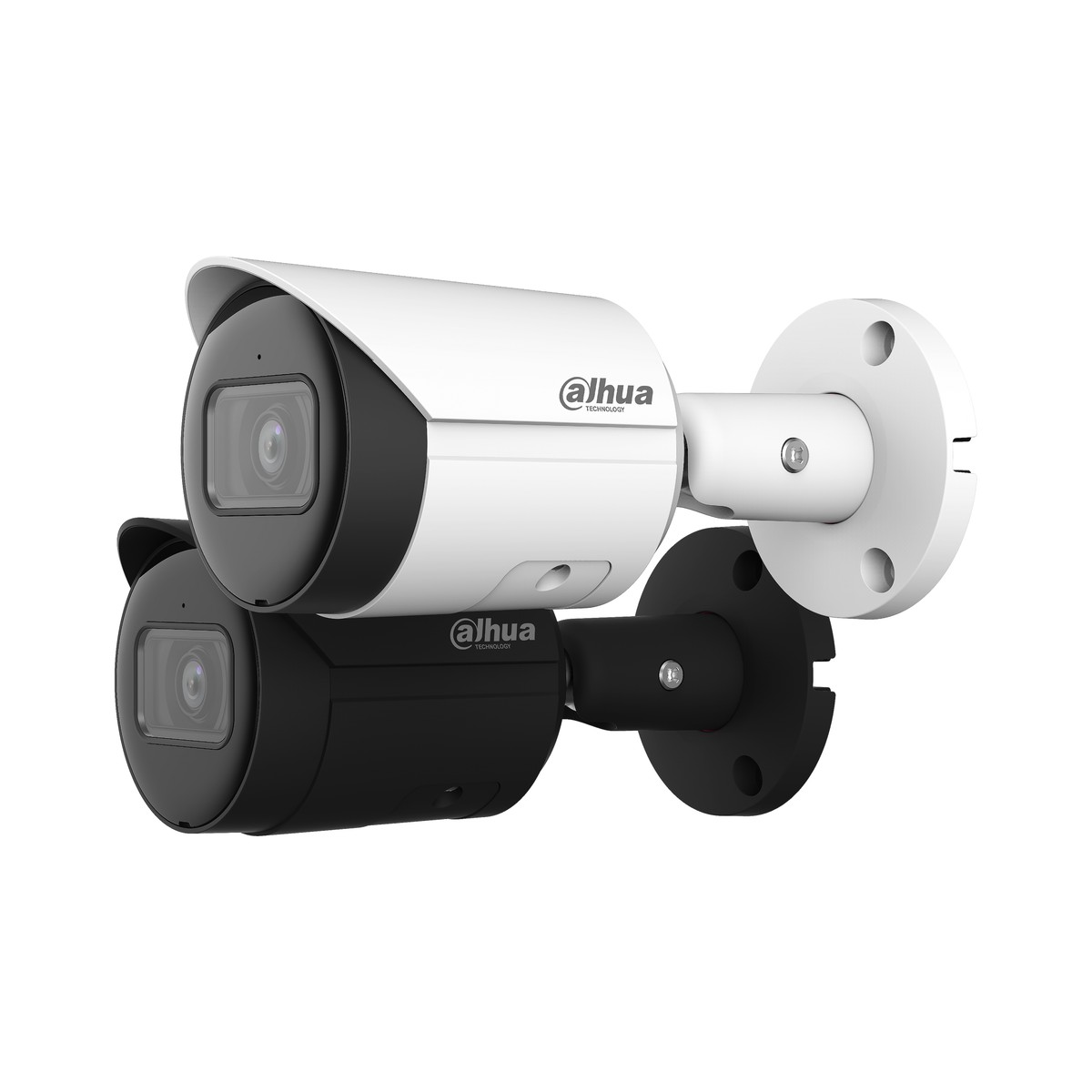

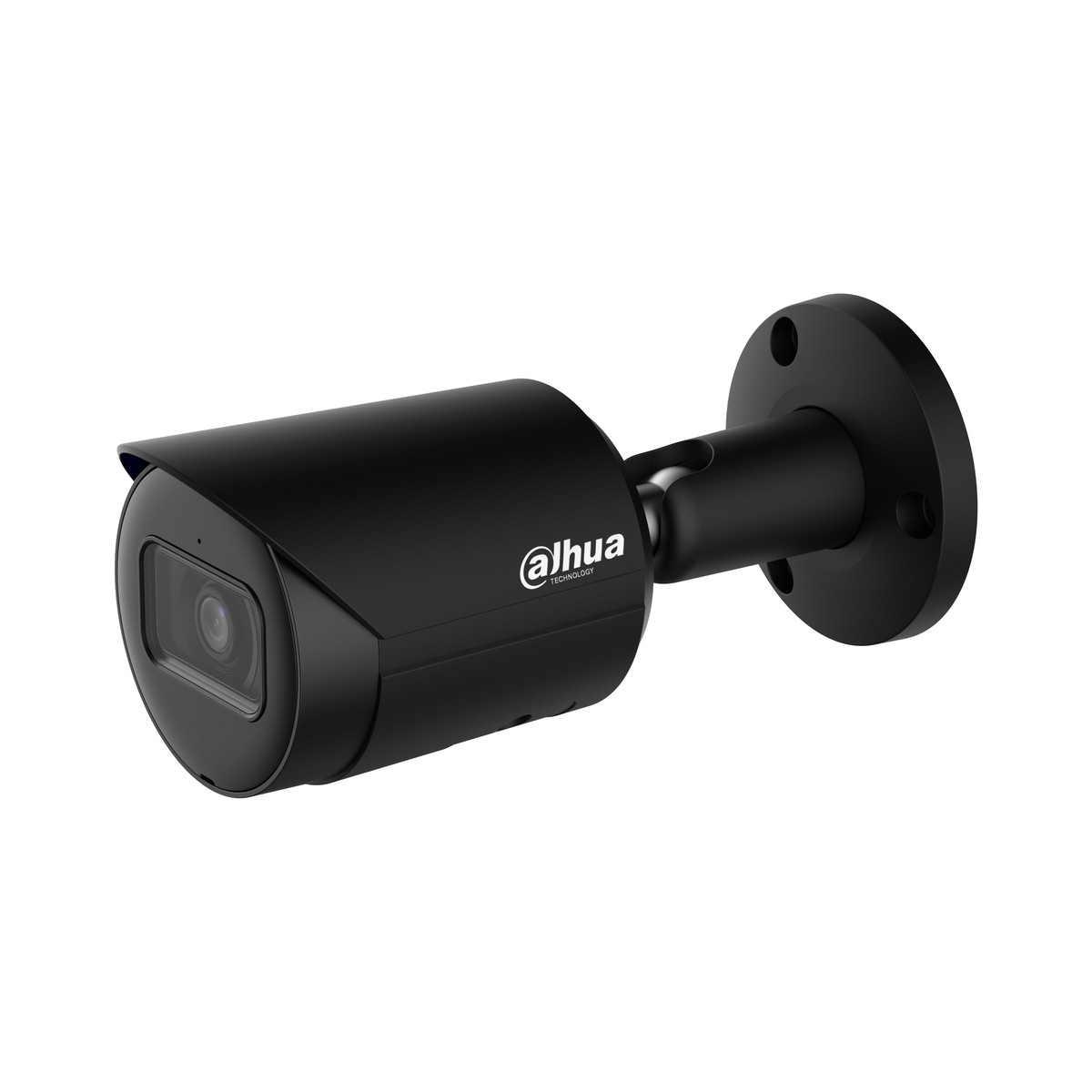

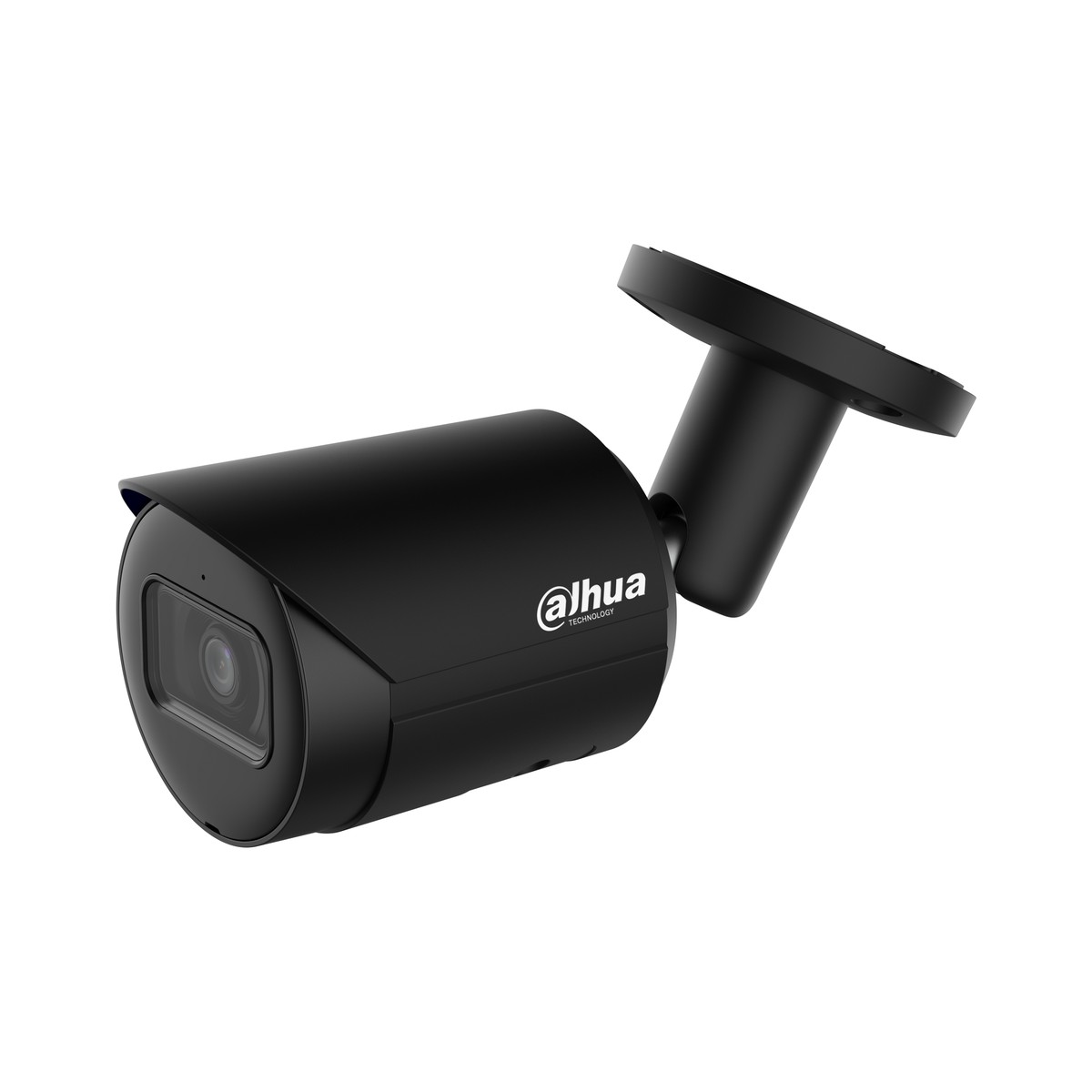

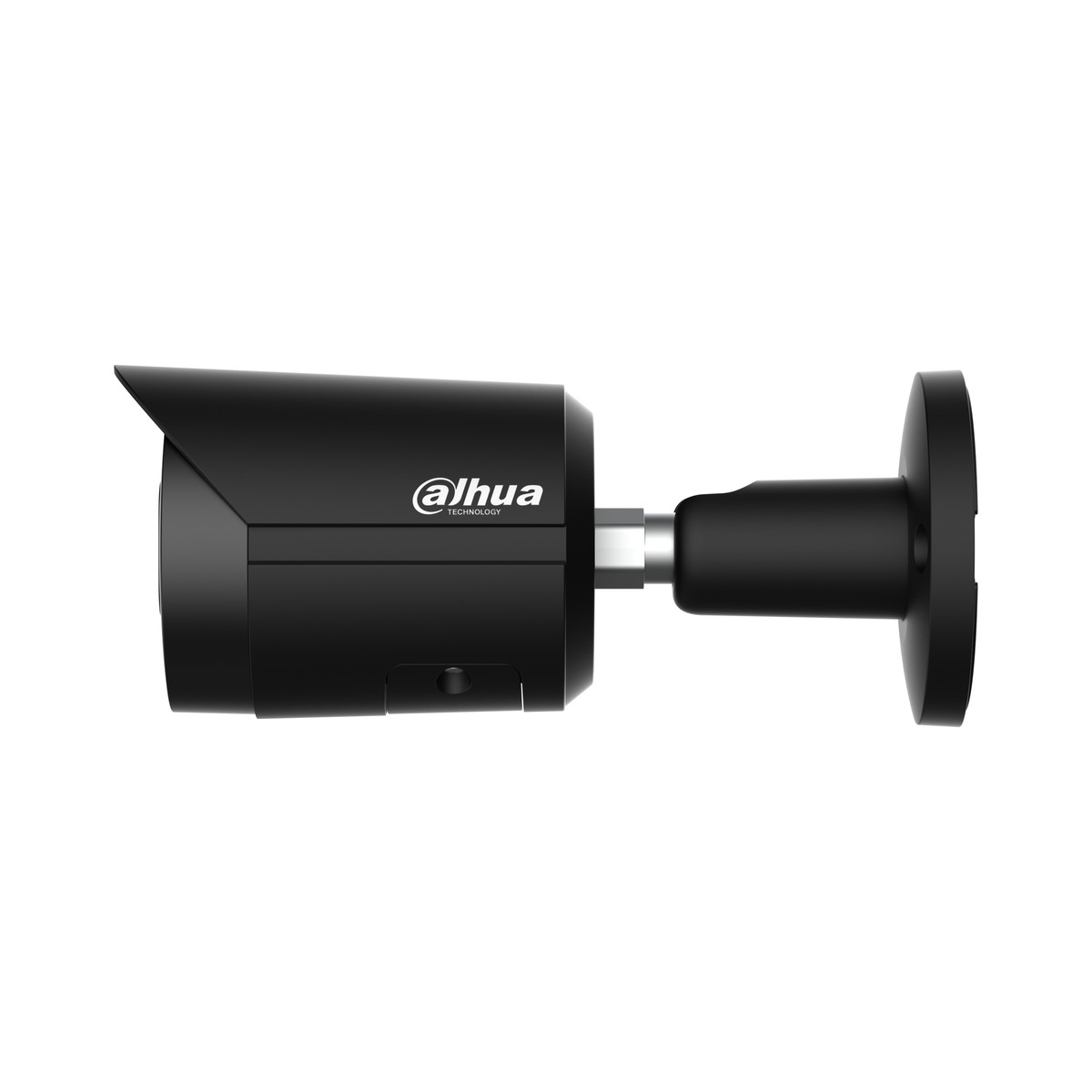

Telecamera bullet IP Starlight da interno/esterno IP67, versione di colore nero, sensore CMOS progressivo 1/2.9″, risoluzione 4 MP a 25 fps, H.265+, ICR, ottica fissa M12 2.8 mm F1.6, luminosità 0.006 lux F1.6 (0 con IR On), portata IR fino a 30 m, 1 porta di rete 10/100 Mbps, microfono integrato, 3D NR, WDR 120 dB, privacy mask 4 aree, IVS (intrusione e attraversamento linea con classificazione uomo/veicolo), SMD Plus, micro SD card (256 GB), alimentazione 12 Vdc/PoE <5.1 W
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.006 Lux@F1.6(Color,30IRE) |
| Min. Illumination | 0.0006 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8mm: H: 95°; V: 52°; D: 114°; |
| Field of View | 3.6mm: H: 78°; V: 41°; D: 94° |
| Iris Control | Fixed 2.8 mm: 0.9 m (2.95 ft); |
| Close Focus Distance | 3.6 mm: 1.6 m (5.25 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 |
| Resolution | × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–6144 kbps |
| Video Bit Rate | H.265: 12 kbps–6144 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted |
| Security | upgrade; Trusted boot; Generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) Basic: 2.5 W (12 VDC); 3.3 W (PoE); |
| Power Consumption | Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal 166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L |
| Product Dimensions | × W × H) |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
| Ordering Information | |
| Type | Model Description 4MP IR Fixed-focal Bullet |
| 4MP camera | DH-IPC-HFW2441S-S WizSense Network Camera PFA134 Junction Box PFA130-E IP66 Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester P100 MicroSD Memory Card |
| Optional: | |
| PFA134 | PFA130-E PFA152-E |
| Junction | IP66 Junction Pole Mount |
| Box | Box Bracket PFM900-E |
| PFM321D | P100 Integrated |
| 12 VDC 1 A | TLC SD Mount Tester |
