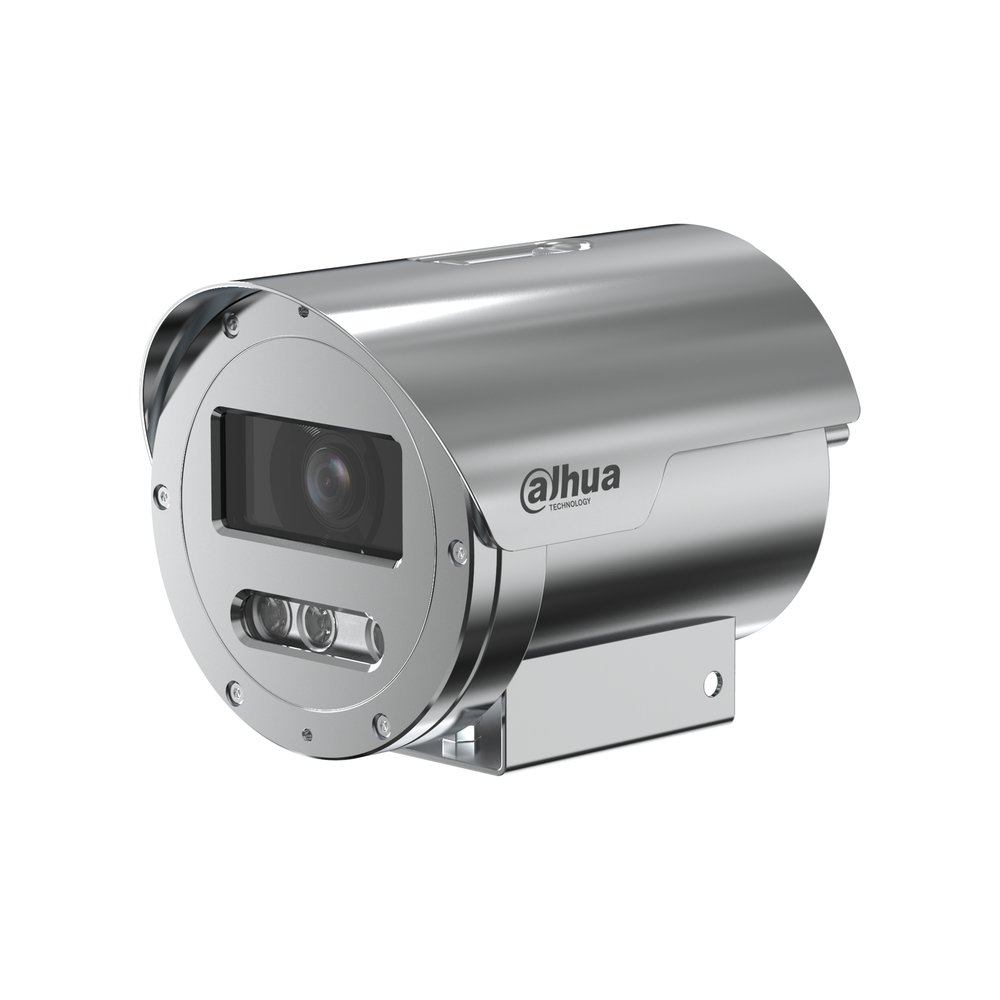

Telecamera bullet IP AI WizMind Starlight da interno/esterno IP68 Explosion-proof ATEX e IECEx con case in acciaio inossidabile 316L, sensore CMOS progressivo 1/2.8", risoluzione 8 MP a 25fps, H.265+, ottica motorizzata 2.7~13.5 mm, luminosità 0.007 lux ƒ1.5, portata IR fino a 50 m, 1 porta LAN 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio, 3D NR, WDR 120 dB, privacy mask 4 aree, IVS (protezione perimetrale), face detection, people counting, heat map, SMD 4.0, Quick Pick, micro SD card (512 GB), alimentazione 12 Vdc/PoE <11.5 W
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128MB |
| RAM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.007 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) |
| Illuminator On/Off Control | Auto; Zoomprio; Manual |
| Illuminator Number | 3 (IR light) |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 109°–30°; V: 56°–17°; D: 131°–35° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identfy) is a standard system (EN-62676-4) for defning the ability of a person viewing the video to distnguish persons or objects within a covered area. The numbers in this table do not reflect intelligent functon distances. For intelligent functon distances, refer to installaton and commissioning manual/project design tool. |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| IVS (Perimeter Protection) | of vehicle and human); loitering detection, people gathering, and parking detection Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes |
| Face Detection | and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | queue management; 4 rules can be set for tripwire, people counting in area and queue management |
| Heat Map | Yes |
| SMD | SMD 4.0 With AI NVR, quickly pick up the human/vehicle targets |
| Quick Pick | that users are interested in from SMD events Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ AI H.265 |
| AI Coding | AI H.264 Main stream: 3840 × 2160@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video Frame Rate | third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p |
| Resolution | (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–16384 kbps |
| Video Bit Rate | H.265: 32 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P ONVIF (Profile S; Profile G; Profile T); CGI; Milestone; |
| Interoperability | Genetec |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS;Android Configuration encryption;trusted execution;Digest;security logs;WSSE;account lockout;syslog;video encryption;802.1x;IP/MAC |
| Cyber Security | filtering;HTTPS;trusted upgrade;trusted boot;firmware encryption;generation and importing of X.509 certification |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5mA 3V–5V DC 1 channel out: dry contact, 1,000mA 30V DC/500mA |
| Alarm Output | 50V AC |
| Power | |
| Power Supply | 12 VDC/PoE Basic: 3.96 W (12 VDC); 4.95 W (PoE) |
| Power Consumption | Max. (H.265+intelligence on +WDR +IR on + auto focus): 9.2 W (12 VDC); 11.5 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% IP68; TVS 2000V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Casing Material | SUS316L optional 215 mm × 142 mm × 151 mm (8.46" × 5.59" × 5.94") (L |
| Product Dimensions | × W × H) |
| Net Weight | 5 kg (11.02 lb) |
| Gross Weight | 6.6 kg (14.55 lb) |
| Ordering Information | |
| Type | Model Description |
| 8MP | 8MP Explosion-proof IR Bullet DH-ECA3A1804-HNR-XB WizMind Network Camera |
| Accessories | |
| (Optional) | CZ300 Explosion-proof Junction Box ZAEX02 Explosion-proof Stuffing Box ZANXG-1.0 Explosion-proof Flexible Tube |
| Optional: | |
| DC12/1A | DH-EXB109 DH-ZAZ100W |
| Power Adapter | Wall Mount Bracket Universal Joint |
| CZ300 | ZAEX02 ZANXG-1.0 |
| Explosion-proof | Explosion-proof Explosion-proof |
| Junction Box | Stuffing Box Flexible Tube |
