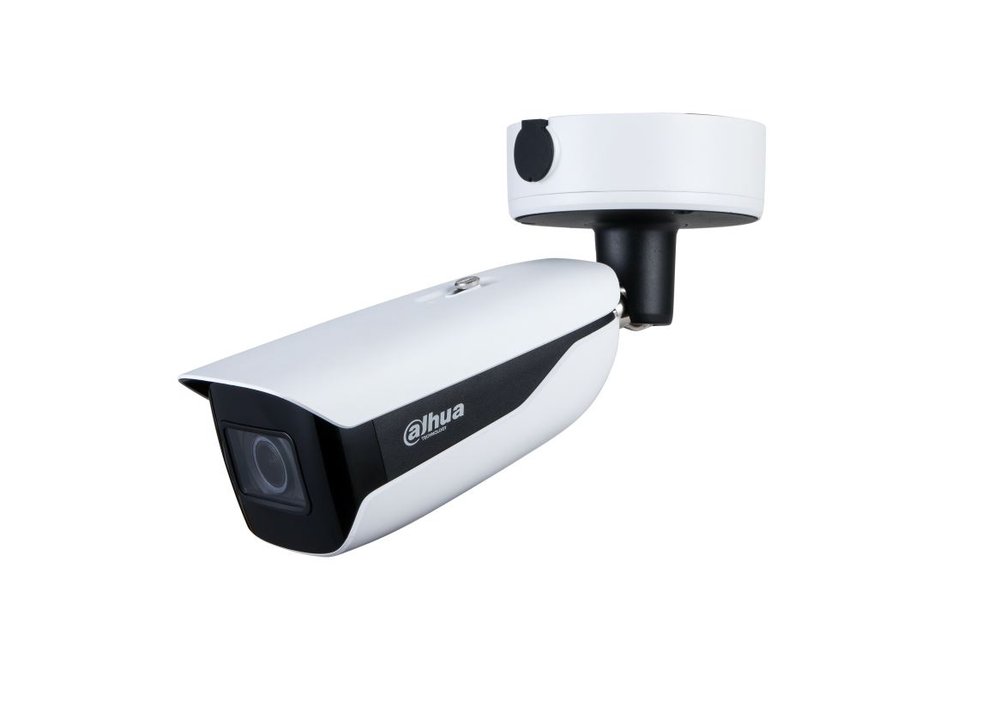

Bullet IP AI 4 MP 2.7~12 mm IR mic anticorrosion heater

Name: Bullet IP AI 4 MP 2.7~12 mm IR mic anticorrosion heater
Brand: Dahua
SKU: IPC-HFW5442H-ZHE-ATC-S3
Price: 726.51 EUR
Availability: BackOrder

Dahua

COD: IPC-HFW5442H-ZHE-ATC-S3 Categoria: Telecamere IP speciali Tag: 4MP

726,51 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 1.453,02 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera IP Bullet WizMind IR varifocale 4MP

> Sensore di immagine CMOS 4 MP 1/1.8″, bassa illuminazione e immagine ad alta definizione.

> Uscita max. 4 MP (2688×1520) @25/30 fps.

I parametri e i datasheet sono forniti solo come riferimento e possono differire dal prodotto reale. Si prega di fare riferimento al prodotto fisico in caso di dubbi.

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	1/1.8" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	4 GB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s 0.0006 lux@F1.2 (Color, 30 IRE)
Min. Illumination	0.0003 lux@F1.2 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	Up to 60 m (196.85 ft) (IR)
Illuminator On/Off Control	Auto; Zoomprio; Manual
Illuminator Number	4 (IR LED) Pan: 0-360°
Angle Adjustment	Tilt: 0-90° Rotation: 0-360°
Lens
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–12.0 mm
Max. Aperture	F1.2
Field of View	H: 114°–48°; V: 59°–27°; D: 143°–56°
Iris Control	Auto
Iris Control Type	P-Iris
Close Focus Distance	1.75 m (5.74 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)	vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long- distance mode. Supports self-learning, it filters out false alarms.
Smart Object Detection	Smart abandoned object; smart missing object
SMD	SMD 3.0
AcuPick	animal,and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA	Yes Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6
Face Detection	attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area
People Counting	and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map	Yes Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Video Metadata	Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. Work together with Smart NVR to perform refine
Smart Search	intelligent search, event extraction and merging to event videos
Smart Sound Detection	Yes
Video
Video Compression	by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264 Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps)
Video Frame Rate	Fourth stream: 720p@ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	4 streams 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M
Resolution	(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H.264: 32 kbps–16384 kbps
Video Bit Rate	H.265: 12 kbps–11008 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	140 dB
Scene Self-adaptation	Yes
(SSA)	Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Stabilization	Electronic Image Stabilization (EIS)
Smart Illumination	Yes
Defog
Image Rotation	(2688×1520 )resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Audio
Built-in MIC	Yes, built-in dual Mic
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event	changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
Network
Network Port	RJ-45 (10/100 Enhancement Base-T)
SDK and API	Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Network Protocol	Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
Interoperability	ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host	20 (Total bandwidth: 80 M)
Storage
Browser	Chrome: Chrome 102 and later Firefox: Firefox 88 and later
Management Software	SmartPSS Lite; DSS; DMSS
Mobile Client	iOS; Android Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted
Security	upgrade; Trusted boot; Generation and importing of X.509 certification
Port
RS-485	1 (baud rate range:1200 bps–115200 bps)
Audio Input	1 channel (terminal)
Audio Output	1 channel (terminal)
Alarm Input	3 channels in: wet contact, 5mA 3V–5V DC 2 channels out: dry contact, 1,000mA 30V DC/500mA
Alarm Output	50V AC
Analog Output	1 channel (CVBS output: BNC)
Power Output	12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply	12 VDC/24 VAC/PoE+ (802.3at)/ePoE When the power adapter and PoE provide power at
Dual Power Backup	the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 3.7 W (12 VDC); 4.7 W (24 VAC); 5 W (PoE) Max. (Focus+WDR+ Intelligence on+IR on): 12.9 W (12
Power Consumption	VDC); 15.1 W (24 VAC); 16.1 W (PoE) Heating: 3 W (12 VDC); 3.6 W (24 VAC); 3.8 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	10%–95% (RH), non-condensing
Protection	IP67; IK10 Moderate Protection (Only supported by -ATC model) *The products feature high-grade anti-corrosion protection, making them well-suited for environments
Anti-corrosion Level	with standard corrosion resistance requirements. They perform reliably from 2 km (1.24 mi) and above in coastal areas and in locations prone to acid rain exposure .
Structure
Casing Material	Metal + plastic 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" ×
Product Dimensions	5.32") (L × W × H)
Net Weight	1.6 kg (3.53 lb)
Gross Weight	2.4 kg (5.29 lb)
Ordering Information
Type	Model Description 4MP IR Vari-focal Bullet WizMind DH-IPC-HFW5442H-ZHE Network Camera
Accessories
(Optional)	PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card
Optional:
PFA154	Anti-corrosion 12 VDC 2A
Pole Mount	Pole Mount Power Adapter
Bracket	Bracket
PFM900-E	TF-P100
Integrated	MicroSD
Mount Tester	Memory Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
