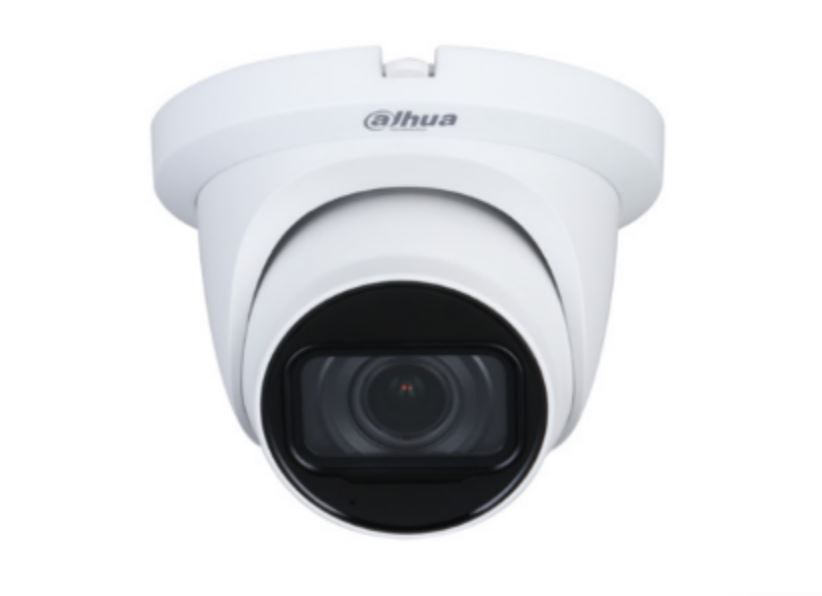

Eyeball HDCVI 5 MP 2.7~13.5 mm IR mic

Name: Eyeball HDCVI 5 MP 2.7~13.5 mm IR mic
Brand: Dahua
SKU: HAC-HDW2501TMQ-Z-A-S2
Price: 163.48 EUR
Availability: BackOrder

Dahua

COD: HAC-HDW2501TMQ-Z-A-S2 Categorie: Telecamere analogiche, Videosorveglianza Tag: 5MP

163,48 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 326,96 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera eyeball HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica motorizzata 2.7~13.5 mm ƒ1.6, luminosità 0.001 lux (0 con IR On), portata IR fino a 60 m, 3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, OSD, alimentazione 12 Vdc <7.9 W

Datasheet

Scheda Tecnica

Manuali

Manuale Utente

Functions
V4.001.0000001.0.R.200908 or later version.	Starlight
Camera
Image Sensor	1/2.7 inch CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive PAL: 1/3 s–1/100,000 s
Electronic Shutter Speed	NTSC: 1/4 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Illumination Distance	60 m (196.9 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2 Pan: 0°–360°
Pan/Tilt/Rotation Range	Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Auto Focus	Yes
Mount Type	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.6 Horizontal: 31.4°–113°
Field of View	Vertical: 17.6°–58° Diagonal: 36°–138°
Iris Type	Fixed iris
Close Focus Distance	0.8 m (2.6 ft)
Lens
DORI distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Video
Frame Rate	TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440);
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/HLC/WDR/HLC-Pro
WDR	120 dB
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart Illumination	Yes
Digital Zoom	4x
Defog
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Port
Audio Interface	One channel built-in mic Video output choices of CVI/TVI/AHD/CVBS by one
Video Output	BNC port (DIP Switch)
Power
Power Supply	12V DC ±30%
Power Consumption	Max. 7.9W (12V DC, IR on)
Environmental
Operating Temperature	(non-condensation) –30°C to +60°C (–22°F to +140°F); < 95%
Storage Temperature	(non-condensation)
Protection Grade	IP67
Structure
Casing	Metal dome+metal cover+plastic decorative ring
Camera Dimensions	φ135 mm × 109 mm (φ5.31" × 4.28")
Net Weight	0.53 kg (1.20 lb)
Gross Weight	0.70 kg (1.51 lb)
Ordering Information
Type	Part Number DH-HAC- HDW2501TMQP-Z-A 2.7 mm–13.5 mm 5MP Starlight HDCVI Quick-to-install IR
5MP Camera	Eyeball Camera DH-HAC- HDW2501TMQN-Z-A 2.7 mm–13.5 mm Junction Box PFA13F Wall Mount Bracket PFB211W Pole Mount Bracket PFA152-E
Accessories
Optional:	PFA13F PFB211W PFA152-E
Junction Box	Wall Mount Bracket Pole Mount Bracket PFM320D-015 PFM321D PFM800-4K 12V 1.5A Power Adapter 12V 1A Power Adapter
Passive HDCVI Balun	PFM904
Integrated Mount Tester	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
