Saldi

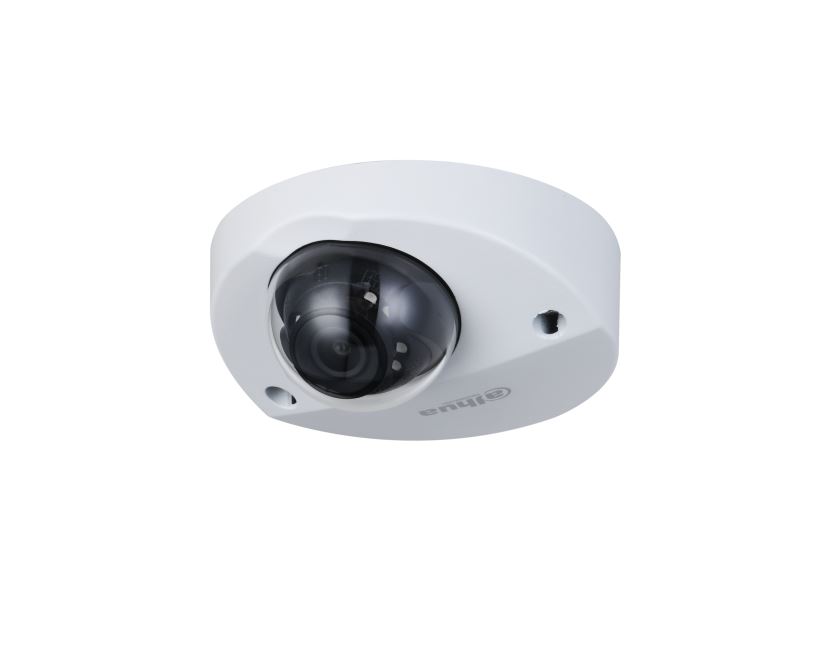

Dome HDCVI 2 MP 2.8 mm IR mic

Name: Dome HDCVI 2 MP 2.8 mm IR mic
Brand: Dahua
SKU: HAC-HDBW2241F-A-S2
Price: 103.09 EUR
Availability: BackOrder

Dahua

COD: HAC-HDBW2241F-A-S2 Categorie: Telecamere analogiche, Videosorveglianza Tag: 2MP

103,09 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 206,18 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera dome HDCVI Starlight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo, risoluzione 2 MP a 25fps, ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 30 m, 2/3D NR, WDR 130 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, Super Adapt, OSD, alimentazione 12 Vdc <2.7 W

Datasheet

Scheda Tecnica

Manuali

Disegni

Disegni Dimensionali

Camera
Image Sensor	2MP CMOS
Max. Resolution	1920 (H) × 1080 (V)
Pixel	2MP
Scanning System	Progressive PAL: 1/25 s–1/100,000 s
Electronic Shutter Speed	NTSC: 1/30 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.001 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance	30 m (98.4 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	8 (IR light) Pan: -30°–30°
Pan/Tilt/Rotation Range	Tilt: 0°–80° Rotation: 0°–360°
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	2.8mm; 3.6mm
Max. Aperture	F1.6 2.8 mm: H: 109°; V: 58°; D: 127°
Field of View	3.6 mm: H:86°; V: 46°; D: 101°"
Iris Type	Fixed iris 2.8 mm: 0.7 m (2.3 ft)
Close Focus Distance	3.6 mm: 1.1 m (3.6 ft)
Dori
Distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The num bers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commission ing manual/project design tool.
Video
Frame Rate	TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H
Resolution	1080p (1920 × 1080); 960H (960 × 576 / 960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/WDR/HLC
WDR	130 dB
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart IR	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Port
Video Output	port (DIP Switch)
Audio Input	One channel built-in mic
Power
Power Supply	12 V ±30% DC
Power Consumption	Max 2.7 W (12 V DC, IR on)
Environment
Operating Temperature	densation) –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-con
Storage Temperature	densation)
Protection Grade	IP67; IK10
Structure
Casing	Metal throughout the whole casing
Camera Dimensions	Φ106 mm × 50.3 mm (Φ4.17" × 1.98")
Net Weight	0.33 Kg (0.73 lb)
Gross Weight	0.44 Kg (0.97 lb)
Ordering Information
Type	Model 2MP Starlight HDCVI Fixed IR Dome Camera, DH-HAC- PAL HDBW2241FP-A
2M Camera	2MP Starlight HDCVI Fixed IR Dome Camera, DH-HAC- NTSC HDBW2241FN-A Junction Box PFA139 Wall Mount Bracket PFB204W Pole Mount Bracket PFA152-E Adapter Plate of Mini Dome & Eyeball PFA106
Accessories
(Optional)	Ceiling Mount Bracket of Mini Dome & PFB220C Eyeball Camera Passive HDCVI Balun PFM800-E 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904
Optional:
PFA139	Pole Mount Bracket Wall Mount Bracket
PFA106	PFM800-E PFB220C
Adapter Plate of Mini	Passive HDCVI Balun Ceiling Mount Bracket
Dome & Eyeball Camera	of Mini Dome & Eyeball
Camera
PFM321D	Integrated Mount Tester
12 V 1A Power Adapter	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
