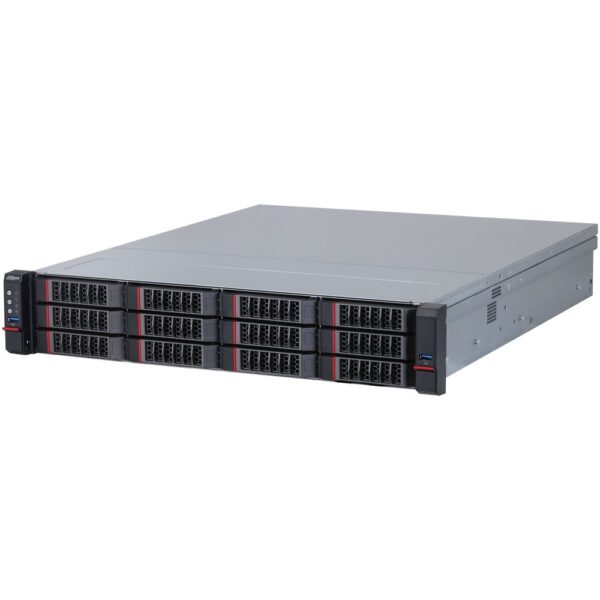

Intelligent Video Suriveillance Server AI WizMind 128 canali IP fino a 32 MP, massima banda 512 Mbps, 5 uscite video (4 HDMI + 1 VGA), 16 ingressi e 8 uscite allarme, 1 ingresso e 1 uscita audio, predisposto per montaggio di 12 Hard Disk SATA (fino a 20 TB cad.) anche in RAID 0/1/5/6/10/50/60, 4 porte USB (2 2.0 e 2 3.0), 1 porta eSATA, 1 porta RS232, 1 porta RS485, 4 porte LAN 10/100/1000/2500 Mbps, 32 canali IVS AI, 32 canali face recognition, 32 canali metadati video, 32 canali AcuPick, 2U, alimentazione ridondante 1+1 240 Vac <200 W (1877 BTU)
Datasheet
Manuali
| System | |
| Main Processor | 64-bit multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP), local GUI |
| AI Card | 2, AI card mode is switchable |
| Ai Applications | |
| AI by Camera | people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection; SMD Face detection; face recognition; entries frequency; |
| AI by Recorder | video metadata (human; vehicle; non-motor vehicle); metadata attributes alarm by recorder; IVS; 1.AI by Recorder: Supports 32-channel 2 MP or 32- channel 4 MP resolution(16-channel for each AI card). |
| AcuPick | 2.AI by Camera: Supports 80-channel 2 MP or 60- channel 4 MP resolution |
| Multimodal Large Models | |
| WizSeek | normal IP camera (1 AI card for AcuPick by recorder, 1 AI card for WizSeek modeling) • Each AI card for WizSeek modeling can analyze 16 targets/s Search Language: English,Traditional Chinese |
| Face Detection | |
| Face Detection | resolution with face detection IP camera; 3. Supports 6 properties: Gender, age, glasses, expression, face mask, and beard |
| Search By Image | |
| Search by Image | human body images, and 1:1 face recognition. |
| Face Recognition | |
| Face Database Capacity | total The human face database and the passerby database share the total capacity and number of face images. 1. AI by Recorder: 32-channel 2 MP or 32-channel 4 MP with normal IP camera(16-channel for each AI card); 80- channel 2 MP or 60-channel 4 MP with face detection IP camera (Totally 80 × 2 MP or 60 × 4 MP face pictures |
| Face Recognition | analyzed per second); 2. AI by Camera: 80-channel 2 MP or 60-channel 4 MP with face recognition IP camera; 3. Supports entries frequency alarm |
| License Plate Database | total |
| Capacity | 2. Supports allowlist and blocklist |
| Vehicle License Plate | Supports 80-channel 2 MP or 60-channel 4 MP |
| Comparison | resolution with ITC |
| Video Metadata | |
| Video Metadata | hat, hairstyle, direction, hold a baby, face mask Vehicle: Plate No., vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament Non-motorized Vehicle: Non-motor vehicle type, non- motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve, length, top color, hat, hair style, face mask |
| Ivs Analytics | |
| IVS | AI by Recorder: climbing detection, tripwire, intrusion, parking detection, crowd gathering, stay detection and loitering detection AI by Camera: tripwire, intrusion, abandoned object, missing object, fast moving, crowd gathering, loitering, parking and fence-crossing |
| Intelligent Task Analytics | |
| Intelligent Task Analytics | devices for analysis |
| Video Diagnosis | |
| Video Diagnosis | change, image freeze, overexposure detection, video loss, noise detection, scene changing, static noise, interference fringe and color cast |
| Intelligent Video Compression | |
| Intelligent Video | streams (ONVIF/RTSP). |
| Compression | 4. Compression Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/1.3 MP/720p/D1. 5. Each AI card supports up to 2-channel 12 MP/4- channel 8 MP/ 6-channel 5 MP/8-channel 4 MP/16- channel 2 MP and below. |
| Industrial Algorithms | |
| Industrial Algorithms | The industrial algorithm is an optional installment. |
| Work Behavior Analysis | (4-channel for each AI card) 2. Rules: AI by Recorder: calling, using mobile phone, sleeping while on duty, leave post detection, smoking and abnormal number of people 1. AI by Recorder: 16-channel 2 MP/4 MP/8 MP (8- channel for each AI card) 2. Rules: AI by Recorder: hat/safety helmet detection, Balaclava, workwear detection (detect by color |
| PPE Detection | attributes or registered database), face mask detection, goggles detection, seatbelt detection, safety vest detection, shoes detection, gloves detection, mask detection, exposed hair detection and arm band detection 1. AI by Recorder: 16-channel 2 MP/4 MP/8 MP (8- channel for each AI card) 2. Rules: AI by Recorder: smart missing object and |
| Smart Object Detection | smart abandoned object 3. Object Type: non-motor vehicles, luggage, bags and boxes 1. AI by Recorder: Without large model (by default): 16-channel 2 MP/4 MP/8 MP (8-channel for each AI card) |
| People Behavior Analysis | With large model(optional): 4-channel 2 MP/4 MP/8 MP (2-channel for each AI card) 2. Rules: AI by Recorder: fighting detection, fall detection, running detection and tailing detection |
| Audio And Video | |
| Access Channel | 128-channel Incoming bandwidth: 512 Mbps |
| Network Bandwidth | Recording bandwidth: 512 Mbps Outgoing bandwidth: 512 Mbps 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p ； 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps 2-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 5-channel 12 MP@20 fps; 6-channel 12 MP @15 fps; 5-channel 8 MP@30 fps; 10-channel 8 MP@15 fps; |
| Decoding Capability | 6-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 9-channel 5 MP@25 fps; 10-channel 4 MP@30 fps; 15-channel 4 MP@20 fps; 16-channel 3 MP @25 fps; 10-channel 1080p@60 fps; 20-channel 1080p@30 fps; 30-channel 720p@30 fps 1-channel VGA output, 4-channel HDMI output, VGA 1/ |
| Video Output | HDMI 1 outputs the same video source. 1st Screen: Max.64-channel 2nd Screen: Max.16-channel |
| Multi-screen Display | 3rd Screen: Max.1-channel 4th Screen: Max.1-channel Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, |
| Third-party Camera Access | Canon, Samsung |
| Compression Standard | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264 |
| Audio Compression | G.711a;G.711u;PCM;G.726 |
| Network | |
| Network Protocol | IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;iSCSI ;IPv6;UPnP;SNMP |
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox Multiple-address mode;Load balance;Fault- |
| Network Mode | tolerance;Link aggregation |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback Search video detection; IO alarm; thermal imaging; |
| Record Mode | intelligent event; all record file |
| Storage Method | Internal HDD |
| Backup Method | HDD, peripheral USB storage device 1. Play; Pause; Stop; Fast forward; Fast backward; Reverse play; Frame by frame; |
| Playback Function | 2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off |
| Storage | |
| Disk Group | Yes |
| Network Disk | iSCSI |
| RAID | RAID0;RAID1;RAID5;RAID6;RAID10;RAID50;RAID60 Supports record control (continuous, event-based, |
| Record Management | scheduled, scheduled & event-based). |
| Alarm | |
| General Alarm | alarm; fire alarm; temperature alarm; temperature difference alarm; hot spot alarm; cold spot alarm IPC offline alarm; storage error; HDD full; IP conflict; MAC conflict; login lock; AI module temperature alarm; |
| Anomaly Alarm | AI module offline; fan malfunction; no HDD; power exception Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; |
| Alarm Linkage | email, and smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels 12 slots, SATA. Max.20 TB/HDD, hot swapping, CMR, |
| Disk Interface | support enterprise-grade HDD |
| eSATA | 1 port |
| RS-232 | 1 port, for debug or COM data transmission 1 port, control peripheral PTZ and so on. Supports |
| RS-485 | various protocols. 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 |
| USB | ports a the rear panel. |
| HDMI | 4 ports. HDMI 1 supports 4K output. |
| VGA | 1 port |
| Network Port | ports |
| Power | |
| Network Port Extension | Ethernet ports; 2 × 10-GbE optical fiber ports (optional) |
| General | |
| Disk Bay | 12 |
| Form Factor | 2U |
| Power Supply | 100–127/200–240 VAC, 50/60 Hz, 5/2.5 A (×2) Working(all HDDs connected): ≤ 250 W (853 BTU/hr) |
| Power Consumption | Working(without HDD): ≤ 120 W (410 BTU/hr) Rated: ≤ 550 W (1877 BTU/hr) |
| Fan | Intelligent speed regulation fan |
| Net Weight | 12.50 kg (27.56 lb) |
| Gross Weight | 18.84 kg (41.54 lb) Chassis: 447.6 mm × 604.3 mm × 87 mm (17.62" × 23.79" × 3.43") (W × L × H) |
| Product Dimensions | Max. size: 482.59 mm (with hanger) × 604.3 mm × 97 mm (with feet mat) (19.00" × 23.79" × 3.43") (W × L × H) With packaging: 602 mm ×239 mm × 872 mm (23.70" × 9.41" × 34.33") (W × H × L) |
| Packaging Dimensions | Protection box: 625 mm × 271 mm × 895 mm (24.61" × 10.67" × 35.24") (W × H × L) |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 5,000 m (16,404.20 ft) |
| Installation | Desktop; Rack ： CE-LVD EN 62368-1 ： ， ， |
| Ordering Information | |
| Type | Model Description |
| Intelligent Video | 128CH 2U Intelligent Video DHI-IVSS7112R-2I |
| Surveillance Server | Surveillance Server Server Cabinet Rail Bracket DHI-RB60 For 12-bay IVSS |
| Accessories (Optional) | 0CH Nonstandard IVSS71XX-I_AIModule Intelligent Video Analysis Module |
| Accessories | |
| Optional: | IVSS71XX-I_AIModule |
| DHI-RB60 | 0CH Nonstandard |
| Server Cabinet Rail | Intelligent Video Analysis |
| Bracket For 12-bay IVSS | Module |
