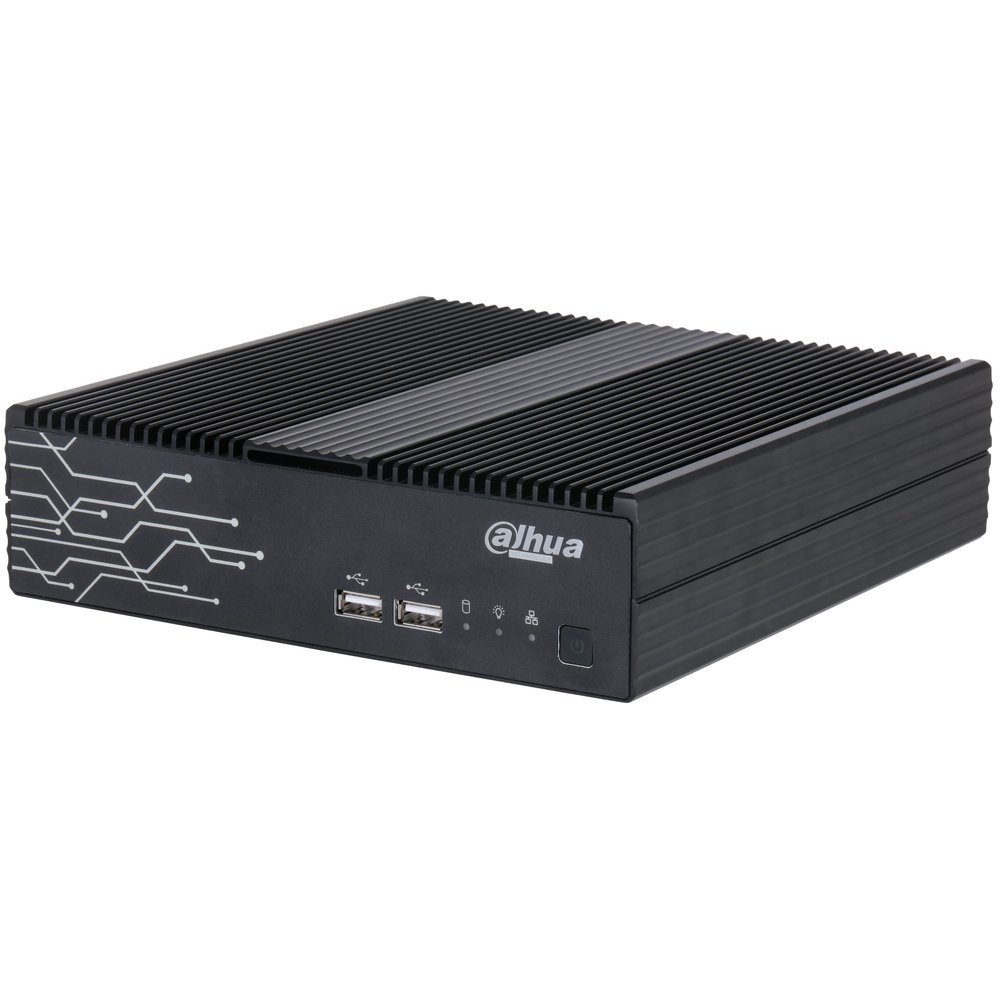

Intelligent Video Device Wide Temperature range AI WizMind 48 canali IP fino a 32 MP (encoding), 4 canali @8 MP/16 canali @1080p (decoding), massima banda 256 Mbps, 4 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 slot SATA3.0 per SSD 2.5" (altezza <9 mm), 1 porta RS232, 1 porta RS485, 4 porte USB (2 2.0 e 2 3.0), 2 porte LAN 10/100/1000 Mbps, 3 uscite video (2 HDMI (1 4K) + 1 VGA), 16 canali IVS AI, 32 canali face recognition, 32 canali confronto targhe, 16 canali metadati video, 16 canali AcuPick, 1U, alimentazione 12 Vdc <12 W, range temperatura di esercizio -35°~+70°
| System | |
| Main Processor | 64-bit high-performance multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP); local GUI |
| AI Card | 1, AI card mode is switchable |
| Ai Applications | |
| AI by Camera | people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection Face detection; face recognition; video metadata |
| AI by Recorder | (human; vehicle; non-motor vehicle); IVS 1. AI by Recorder: Supports 16-channel 2 MP or 16- channel 4 MP resolution. |
| AcuPick | 2. AI by Camera: Supports 32-channel 2 MP or 32- channel 4 MP resolution |
| Multimodal Large Models | |
| WizSeek | modeling) • Each AI card for WizSeek modeling can analyze 16 targets/s Search Language: English,Traditional Chinese |
| Face Detection | |
| Face Detection | channel 4MP resolution 3. Supports 6 properties: Gender, age, glasses, expression, face mask, and beard |
| Search By Image | |
| Search by Image | human body images, and 1:1 face recognition. |
| Face Recognition | |
| Face Database Capacity | total The human face database and the passerby database share the total capacity and number of face images. 1. AI by Recorder: 16-channel 2 MP or 16-channel 4 MP with normal IP camera; 32-channel 2 MP or 32-channel 4 MP with face detection IP camera (Totally 32 × 2 MP |
| Face Recognition | or 32 × 4 MP face pictures analyzed per second); 2. AI by Camera: 32-channel 2 MP or 32-channel 4 MP with face recognition IP camera; 3. Supports entries frequency alarm 1. 50 plate databases with 300,000 plate numbers in |
| License Plate Database | total |
| Capacity | 2. Supports allowlist and blocklist |
| Vehicle License Plate | Supports 32-channel 2 MP or 32-channel 4 MP |
| Comparison | resolution with ITC |
| Video Metadata | |
| Video Metadata | Vehicle: Plate No, Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament Non-motorized Vehicle: Non-motor vehicle type, non- motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve, length, top color, hat, hair style, face mask 4. Supports match or mismatch attributes alarm for video metadata |
| Ivs Analytics | |
| IVS | AI by Recorder: climbing detection, tripwire, intrusion, parking detection, crowd gathering, stay detection and loitering detection AI by Camera: tripwire, intrusion, abandoned object, missing object, fast moving, crowd gathering, loitering, parking and fence-crossing |
| Video Diagnosis | |
| Video Diagnosis | overexposure detection, video loss, noise detection, scene changing, static noise, interference fringe and color cast |
| Intelligent Video Compression | |
| Intelligent Video | streams (ONVIF/RTSP). |
| Compression | 4. Compression Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/1.3 MP/720p/D1. 5. Each AI card supports up to 2-channel 12 MP/4- channel 8 MP/ 6-channel 5 MP/8-channel 4 MP/16- channel 2 MP and below. |
| Industrial Algorithms | |
| Industrial Algorithms | The industrial algorithm is an optional installment. 1. AI by Recorder: Without large model (by default): 8-channel 2 MP/4 MP/8 MP (8-channel for each AI card) With large model(optional): 4-channel 2 MP/4 MP/8 MP |
| Work Behavior Analysis | (4-channel for each AI card) 2. Rules: AI by Recorder: calling, using mobile phone, sleeping while on duty, leave post detection, smoking and abnormal number of people |
| PPE Detection | attributes or registered database), face mask detection, goggles detection, seatbelt detection, safety vest detection, shoes detection, gloves detection, mask detection, exposed hair detection and arm band detection 1. AI by Recorder: 8-channel 2 MP/4 MP/8 MP (8- channel for each AI card) 2. Rules: AI by Recorder: smart missing object and |
| Smart Object Detection | smart abandoned object 3. Object Type: non-motor vehicles, luggage, bags and boxes 1. AI by Recorder: Without large model (by default): 8-channel 2 MP/4 MP/8 MP (8-channel for each AI card) |
| People Behavior Analysis | With large model(optional): 2-channel 2 MP/4 MP/8 MP (2-channel for each AI card) 2. Rules: AI by Recorder: fighting detection, fall detection, running detection and tailing detection |
| Audio And Video | |
| Access Channel | 48-channel Incoming bandwidth: 256 Mbps |
| Network Bandwidth | Recording bandwidth: 256 Mbps Outgoing bandwidth: 256 Mbps 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p 1-channel 32 MP; 1-channel 24 MP; 2-channel 16 MP; 4-channel 8 MP@30 fps; 5-channel 6 MP@30 fps; 6- |
| Decoding Capability | channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16- channel 1080p@30 fps; 36-channel 720p@30 fps 1-channel VGA output, 2-channel HDMI output, VGA 1/ |
| Video Output | HDMI 1 outputs the same video source. Max. 16-channel local live view |
| Multi-screen Display | Max. 16-channel PCAPP live view ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, |
| Third-party Camera Access | Canon, Samsung |
| Compression Standard | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264 |
| Audio Compression | G.711a;G.711u;PCM;G.726 |
| Network | |
| Network Protocol | IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;IPv6; UPnP;SNMP |
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox Multiple-address mode;Load balance;Fault- |
| Network Mode | tolerance;Link aggregation |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback Search auto; manual; video detection; IO alarm; |
| Record Mode | thermal imaging; intelligent event; all record file |
| Storage Method | Internal HDD |
| Backup Method | HDD, peripheral USB storage device 1. Play; Pause; Stop; Fast forward; Fast backward; Reverse play; Frame by frame; |
| Playback Function | 2. Full-screen; Backup (clip and file); Snapshot; Digital zoom; Audio on and off |
| Storage | |
| Record Management | scheduled, scheduled & event-based) |
| Alarm | |
| General Alarm | alarm; temperature alarm; temperature difference alarm; hot spot alarm; cold spot alarm IPC offline alarm; storage error; HDD full; IP conflict; MAC conflict; login lock; AI module temperature alarm; |
| Anomaly Alarm | AI module offline; fan malfunction; no HDD; power exception Record; snapshot (full image); alarm uploading; remote device alarm output; camera audio; buzzer; log; preset; |
| Alarm Linkage | email, and smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels |
| Port | |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| Disk Interface | 1 slot, SATA, supports 2.5" SSD (height ≤9 mm) |
| RS-232 | 1 port |
| RS-485 | 1 port 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 |
| USB | ports at the rear panel. |
| HDMI | 2 ports. Port 1 supports 4K output. |
| VGA | 1 port |
| Network Port | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports |
| General | |
| Disk Bay | 1 |
| Form Factor | 1U |
| Power Supply | 12 VDC, 7 A 10 W (without HDD, idling) |
| Power Consumption | 12 W(all HDDs connected) |
| Net Weight | 1.53 kg (3.38 lb) |
| Gross Weight | 2.65 kg (5.85 lb) Chassis: 194 mm × 200 mm × 52 mm (7.64" × 7.87" × |
| Product Dimensions | 2.05") (W × D × H) With packaging: 299 mm × 164 mm × 281 mm (11.77" × |
| Packaging Dimensions | 6.45" × 11.06") (W × D × H) |
| Operating Temperature | –35 °C to +70 °C (–31 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | ≤5,000 m (16,404.20 ft) |
| Installation | Desktop; Rack ： CE-LVD EN 62368-1 ： ， ， |
| Ordering Information | |
| Type | Model Description |
| INTELLIGENT VIDEO | 48CH 1U INTELLIGENT DHI-IVD5148WT-1I |
| DEVICE | VIDEO DEVICE |
