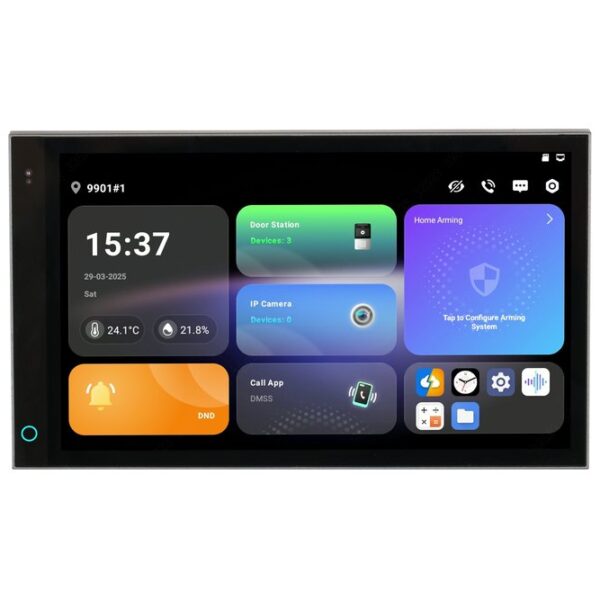

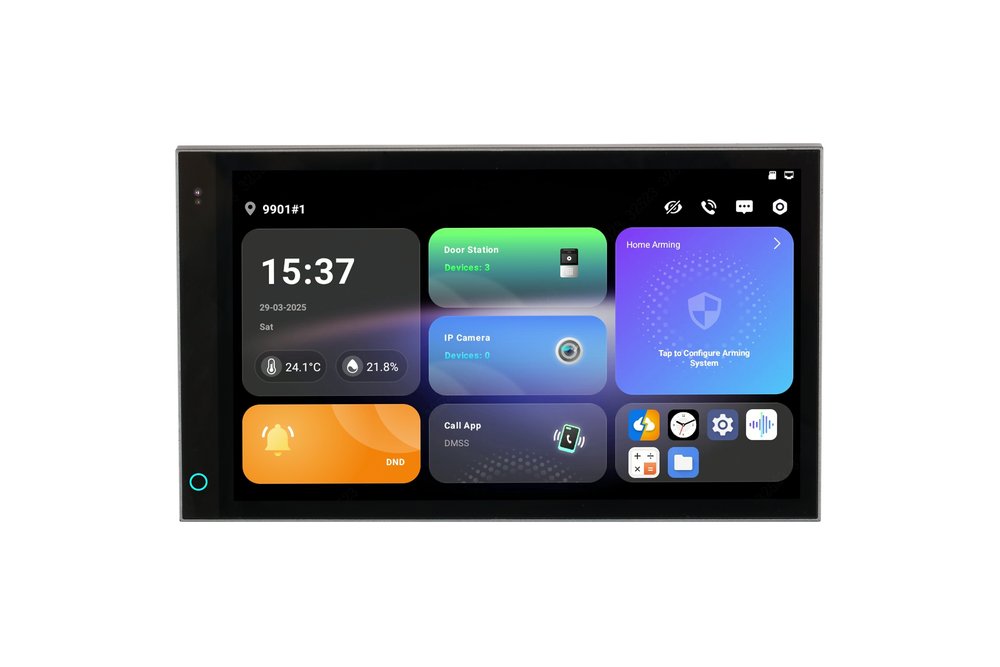

Monitor interno videocitofonico smart IP/Wi-Fi/2-wire, display touch capacitivo da 7", risoluzione 1024×600, 1 porta di rete 10/100 Mbps, 8 ingressi e 1 uscita allarme, 1 porta RS485, 1 porta USB, sistema operativo Android 14, modalità "non disturbare" personalizzabile, slot micro SD (fino a 512 GB), montaggio a parete, alimentazione 48 Vdc/PoE <14 W
| System | |
| Main Processor | Embedded Processor |
| Operating System | Android 14 |
| Network Protocol | IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7-inch display screen |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital;Digital 2-wire |
| Elevator Control | their floor. Yes (SD card is inserted in the indoor monitor or door |
| Leave Videos | station) |
| DND Mode | Do not disturb period can be set Villa: 1 main VTH and 9 extensions |
| Number of Extensions | Apartment: 1 main VTH and 4 extensions |
| Network | |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b/g/n |
| Wireless Frequency Range | 2.4 GHz |
| Max. Transmission Power | ≤ 20 dBm @ 2400-2483.5 MHz |
| Port | |
| RS-485 | 1 |
| USB | 1 |
| Alarm Input | 8 channels |
| Alarm Output | 1 channel |
| Power Output | 1 port (12 V, 200 mA) |
| Doorbell | Yes (use the alarm input port) |
| Network Port | 1 × 10/100 Mbps Ethernet port |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | Gray 48 VDC, 0.5 A |
| Power Supply | Standard PoE |
| Power Adapter | Optional |
| Installation | Flush Mount |
| Certifications | |
| Accessory | alarm cable. Optional: Power cord 176.2 mm × 103.1 mm × 32.2 mm (6.94" × 4.06" × |
| Product Dimensions | 1.27") (H × W × D) |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Below 3,000 m (9,842.52 ft) |
| Power Consumption | ≤ 10 W (standby), ≤ 14 W (working) |
| Gross Weight | 1,220 g (2.69 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% |
| Operating Environment | Indoor |
| Ordering Information | |
| Type | Model Description 2-Wire IP Smart Control |
| Smart Control Panel | DHI-SCP3022A-B Panel 2026 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. |
