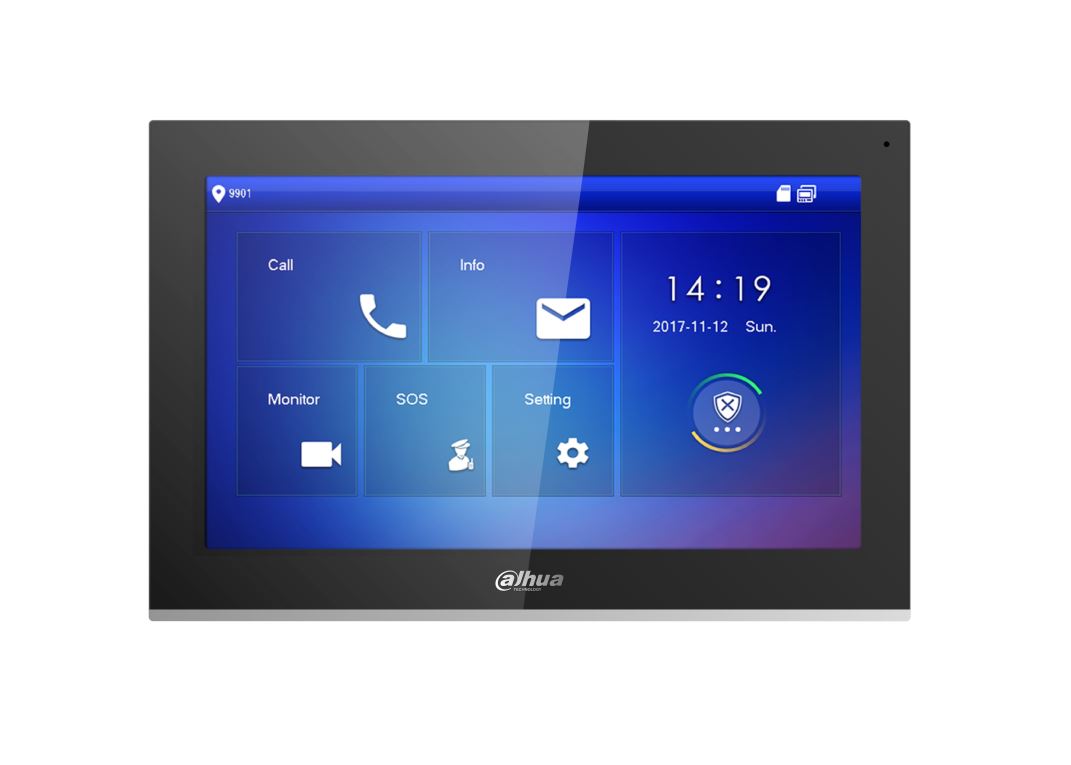

Monitor interno VTH IP 10" nero
Monitor interno videocitofonico IP, display LCD TFT da 10", risoluzione 1024×600, 1 porta LAN 100 Mbps, touch screen capacitivo, 6 ingressi e 1 uscita allarme, funzioni rubrica, registrazione e storico chiamate, pop up su allarme, micro SD 8 GB embedded, montaggio a parete, alimentazione 12 Vdc/PoE <7 W
Datasheet
| System Parameter | |
| Operating System | Embedded LINUX operating system |
| Network Protocol | IPv4, FTP, RTSP, RTP, TCP, UDP, SIP |
| Keyboard Type | Touch keyboard (0–9, *, #) |
| Basic Parameter | |
| Screen Type | Capactive screen |
| Display | |
| Resolution | 1024 (H) × 600 (V) |
| Video Compression | H.264 |
| Audio Compression | G.711a, G.711Mu, G.711u, PCM |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | 1 channel |
| Audio Mode | Support dual-way bidirectional talk |
| Audio Enhancement | Support echo suppression/DNR |
| Function Parameter | |
| Communication Mode | Full digital |
| Leave Videos or Text Messages | Support |
| DND Mode | Support |
| Sub-station Quantity | 9 |
| Edge Storage | Embedded 8 GB |
| Port | |
| Alarm Input | 6 channels |
| Alarm Output | 1 channel |
| Doorbell | Supported by every channel |
| Alarm Parameter | |
| SOS Alarm | Support |
| General Parameter | |
| Casing | PC+ABS |
| Appearance Color | Black Standard PoE |
| Power Supply | DC 12V 1A |
| Power | |
| Installation | Surface |
| Certifications | |
| Dimensions | 260 mm × 170 mm × 28 mm (10.24" × 6.69" × 1.10") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F ) |
| Operating Humidity | 10%RH–90%RH (No condensation) |
| Power Consumption | ≤7W (Work) |
| Dimensions (Mm[Inch]) | |
| 126.2[4.97] | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
