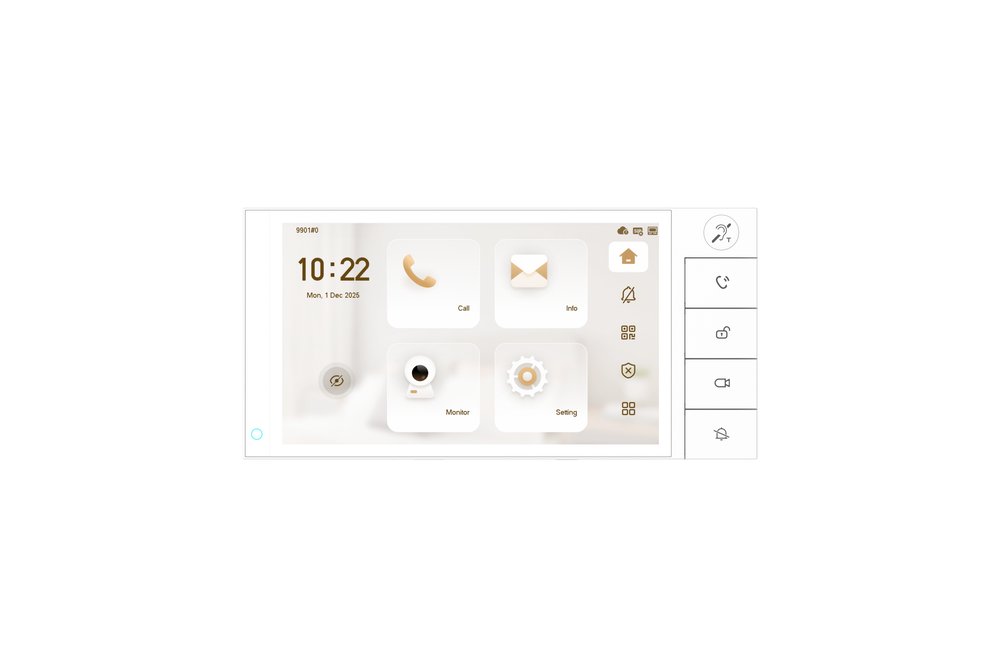

Monitor interno videocitofonico IP/Wi-Fi/2-wire, display touch capacitivo da 7" e 4 tasti meccanici rimovibili e riconfigurabili, risoluzione 1024×600, 1 porta di rete 10/100 Mbps, 8 ingressi e 1 uscita allarme, 1 porta RS485, modalità "non disturbare" personalizzabile, slot micro SD (fino a 512 GB), montaggio a parete, alimentazione 48 Vdc/PoE <10 W
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Network Protocol | IPv4;RTSP;UDP;DNS;RTP;TCP;SIP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7-inch display screen |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction ， |
| Audio Bit Rate | 16 KHz 16Bit |
| Function | |
| Communication Mode | Full digital;Digital 2-wire Receive and view the published information from the |
| Information Release | management center Residents can call the elevator through this device to |
| Elevator Control | their desired floor. Yes (SD card is inserted in the indoor monitor or door |
| Leave Videos | station) |
| DND Mode | Do not disturb period can be set |
| • | Villa: 1 main VTH and 9 extensions. Apartment: 1 main |
| Number of Extensions | VTH and 4 extensions |
| Network | |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b/g/n/ax |
| Wireless Frequency Range | 2.4 GHz |
| Max. Transmission Power | ≤20dBm@2400-2483.5 MHz |
| Port | |
| RS-485 | 1 |
| Alarm Input | 8 channels |
| Alarm Output | 1 channel |
| Power Output | 1 port (12 V, 200 mA) |
| Door Bell | Yes (use the alarm input port) |
| Network Port | 1 × 10 Mbps/100 Mbps Ethernet port |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Color | White |
| Power Supply | 48 VDC 0.4 A Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | |
| Accessory | ， cord bracket and alarm cable. 210.2mm × 103.1 mm × 18.6mm (8.28" × 4.06" × 0.73") |
| Product Dimensions | (H × W × D) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | Below 3,000 m (9,842.52 ft) |
| Power Consumption | ≤ 3.8 W (standby), ≤ 10 W (working) |
| Gross Weight | 0.6 kg (1.32 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% |
| Operating Environment | Indoor |
| Ordering Information | |
| Type | Model Description 2-Wire IP & Wi-Fi Indoor |
| IP Indoor Monitor | DHI-VTH5722BW-IWP Monitor |
