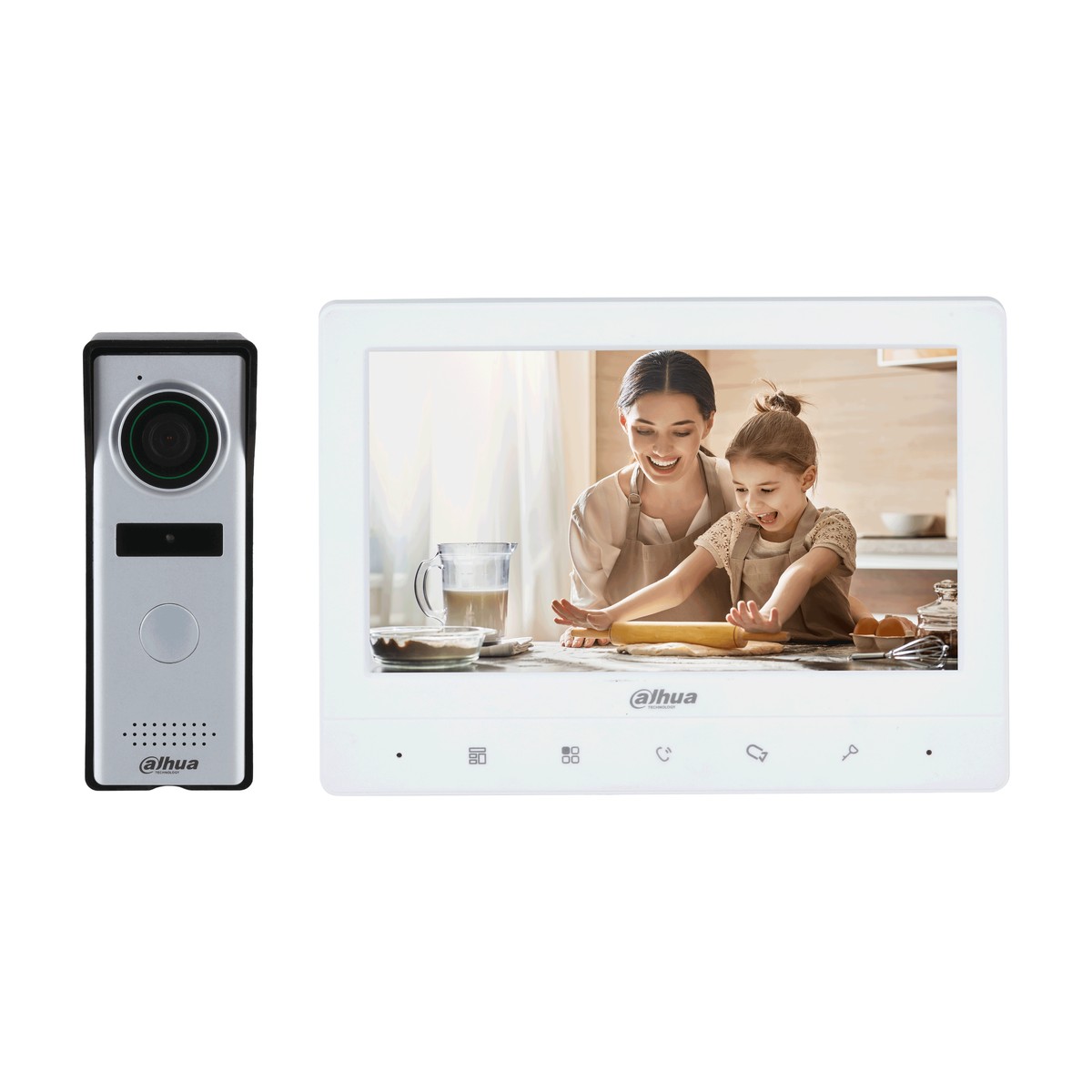

Kit videocitofonico analogico a 4 fili composto da monitor interno e posto esterno in PC + ABS, monitor bianco con display TFT 7″ 1024×600, sblocco porta, chiamata audio e video, regolazione volume e suonerie multiple, capacità di sistema fino a 2 posti esterni e 3 monitor interni, installazione a parete in superficie, alimentatore 12 Vdc 1 A e cavo da 5 m inclusi, consumo ≤2 W in standby e ≤5 W in funzione, posto esterno color argento con IR automatico, ICR, DWDR, angolo verticale 40°, microfono e altoparlante, sblocco locale, ingressi per pulsante di uscita e stato porta
Datasheet
Manuali
| Display | |
| Screen Resolution | 1024 × 600 1 indicator light |
| Status Indicator | Green: Power on |
| Function | |
| Communication Mode | Analog |
| Performance | |
| Casing | PC + ABS |
| General | |
| Color | White |
| Power Supply | DC12V/1A |
| Power Adapter | Included |
| Installation | Surface mount |
| Certifications | |
| Accessory | 5 m (16.40 ft) cable (included) 133.90 mm × 182.70 mm × 17.70 mm |
| Dimensions | (5.27" × 7.19" × 0.70") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH–95%RH ≤ 2W (standby) |
| Power Consumption | ≤ 5W (working) |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight | 0.48 kg (1.05 lb) |
| Camera | |
| Field of View | Vertical: 40° |
| WDR | DWDR |
| Illuminator Type | Auto IR |
| Day/Night | ICR auto switch |
| Audio Input | 1 channel to the microphone; pickup distance 0.5 m |
| Audio Output | 1 channel to the speaker 1 indicator light |
| Status Indicator | Green: Power on |
| Function | |
| Communication Mode | Analog |
| Unlock Mode | Local unlock |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Exit Button | 1 |
| Door Status Detection | 1 |
| General | |
| Color | Silver |
| Power Supply | Powered by indoor monitor |
| Installation | Surface mount |
| Certifications | |
| Accessory | 5 m cable (included in kit) 131.45 mm × 46.00 mm × 33.80 mm |
| Dimensions | (5.18" × 1.81" × 1.33") IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is |
| Protection Grade | recommended. For details, see the quick start guide.) |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F ) |
| Operating Humidity | 10%RH–95%RH ≤ 1W (standby) |
| Power Consumption | ≤ 3W (working) |
| Net Weight | 0.18 kg (0.40 lb) |
| Gross Weight | 0.38 kg (0.84 lb) |
| Ordering Information | |
| Type | Model Description |
| Video Intercom Kit | DHI-KTA02 Video Intercom Kit |
| Inclined Bracket | VTM22A Horizontally Inclined Bracket |
| Inclined Bracket | VTM23A Vertically Inclined Bracket |
| Application | |
| Standalone Access | • Home smart lock VTO Main VTH |
