Kit VDP Wi-Fi con VTH bianco

Name: Kit VDP Wi-Fi con VTH bianco
Brand: Dahua
SKU: KTW01-S2
Price: 533.75 EUR
Availability: BackOrder

Dahua

COD: KTW01-S2 Categorie: Kit videocitofonici, Videocitofonia

533,75 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 462,62 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

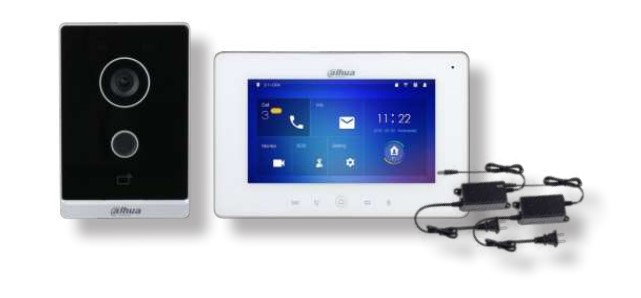

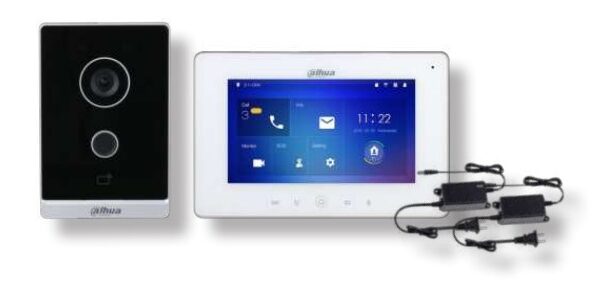

Kit videocitofonico Wi-Fi che include 1 posto esterno villa mono-famigliare Wi-Fi VTO2211G-WP-S2 e 1 monitor interno VTH5221DW-S2

Datasheet

Scheda Tecnica

Model	DHI-VTO2211G-WP-S2
System
Main Processor	Embedded Processor
Operating System	Embedded Linux OS
Mechanical
Interoperability	ONVIF; CGI
Network Protocol	SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP
Camera
Field of View	H: 125°; V: 71°; D: 142°
WDR	120 dB
Noise Reduction	3D NR
Video Compression	H.264; H.265 Main stream: 720p, WVGA, D1, CIF
Video Resolution	Sub stream: 1080p, WVGA, D1, QVGA, CIF PAL: 25 fps;
Video Frame Rate	NTSC: 30 fps
Video Bit Rate	256 Kbps–8 Mbps
Light Compensation	Auto IR
Day/Night	Auto(ICR)/Color/B/W;Color/B/W
Audio Compression	G.711a; G.711u; PCM
Audio Input	1
Audio Output	Built-in speaker
Audio Mode	Two-way audio
Audio Enhancement	Echo suppression/digital noise reduction
Audio Bit Rate	16 KHz, 16 bit
Function
Communication Mode	Full digital
Unlock Mode	Card; app; indoor monitor
Card Type	IC card
Auto Snapshot	Yes Yes (SD card is inserted in the indoor monitor or
Leave Videos	door station)
Wi-Fi	Yes
Wireless Standard	IEEE802.11b/802.11g/802.11n
Wireless Frequency Range	2.4 GHz
Storage
Web Configuration	Yes
Performance
Card Reading Distance	0 cm–4.3 cm (0"–1.69")
Issue Card Locally	Yes
Casing Material	PC + Acrylic
Capacity
Card Capacity	10000
Port
RS-485	1
Alarm Input	1
Alarm Output	1
Power Output	1 port, 12 V and 200 mA
Exit Button	1
Door Status Detection	1
Lock Control	1 port, normally closed by default
Network Port	1 × 10M/100M network port
Alarm
Tamper Alarm	Yes
General
Appearance Color	Black plate and silvery frames 12 VDC, 1 A;
Power Supply	Standard PoE
Power Adapter	Optional
Installation	Surface Mount
Certifications
Accessory	Included: Alarm power ribbon cable, brackets 150.0 mm × 100.0 mm × 25.4 mm (5.91'' × 3.94''
Product Dimensions	× 1.00'') IP65 (silicone sealant is needed, see the quick start
Protection	guide)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH) (non-condensing)
Operating Altitude	Beneath 3000 m (9842.52 ft)
Operating Environment	Outdoor
Power Consumption	≤ 1 W (standby), ≤ 7 W (working)
Gross Weight	510 g (1.12 lb)
Anti-corrosion Level	Basic Protection
Model	DHI-VTH5221DW-S2
System
Main Processor	Embedded Processor
Operating System	Embedded Linux OS
Interoperability	ONVIF
Network Protocol	IPv4, RTSP, RTP, TCP, UDP, SIP
Basic
Screen Type	Capacitive Touchscreen
Display Screen	7" TFT
Screen Resolution	1024 (H) × 600 (V)
Audio Compression	G.711a; G.711u; PCM
Audio Input	1
Audio Output	Built-in speaker
Audio Mode	Two-way audio
Audio Enhancement	Echo suppression
Audio Bit Rate	16 KHz, 16 bit
Function
Communication Mode	Full digital Receive and view text information released by the
Information Release	management center
Leave Videos	Yes (SD card inserted in VTH is needed) Villa: 9 Apartment: 4
Number of Extensions	Wi-Fi intercom: 1 main monitor, 2 extension monitors
Wi-Fi	Yes
Wireless Standard	IEEE802.11b/802.11g/802.11n
Wireless Frequency Range	2.4 GHz 8 GB Micro SD card (max SD card capacity
Port
RS-485	1
Alarm Input	6
Door Bell	Yes
Network Port	1 × RJ-45 , 10M/100Mbps self-adaptive port
Performance
Casing Material	PC + ABS
General
Appearance Color	White 12 VDC, 1 A
Power Supply	Standard PoE
Power Adapter	Optional
Installation	Surface Mount
Certifications
Accessory	Alarm ribbon cable (included) 214.0 mm × 140.5 mm × 23.4 mm (8.43" × 5.53" ×
Product Dimensions	0.92")
Operating Temperature	–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Altitude	Beneath 3,000 m (9,842.52 ft)
Power Consumption	≤3W (standby), ≤7W (working)
Gross Weight	0.69 kg (1.52 lb)
Anti-corrosion Level	Basic Protection
Ordering Information
Type	Model Description
KIT	DHI-KTW01 IP & Wi-Fi Video Intercom KIT
Application
Sub VTH	Public net DMSS mobile
Main VTH	VTO
