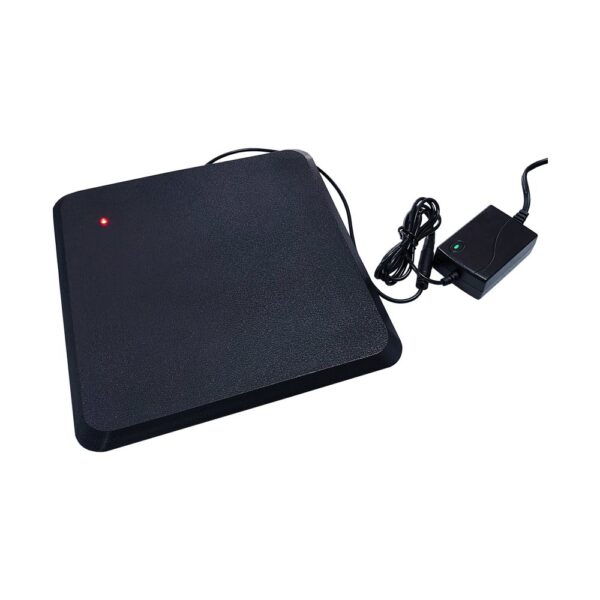

Disattivatore RF in ABS, alimentazione 24 Vdc <5 W
Datasheet
Manuali
| Performance | |
| Technology | Radio-Frequency (RF) |
| Detection | 8.2 MHz ± 0.4 MHz |
| Deactivating | ≤ 200 mm |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) Conform with RoHS & CE |
| General | |
| Power Input | 100 – 240 V ~ 50 / 60 Hz 1.0 A MAX |
| Power Output | 24 VDC |
| Rated Power | 5 W |
| Power Plugs | European Standard |
| Color | Black |
| Length | 242 mm (9.53'') ± 0.5 mm (0.02'') |
| Width | 232 mm (9.13'') ± 0.5 mm (0.02'') |
| Thickness | 27 mm (1.06'') ± 0.5 mm (0.02'') |
| Installation | 222 mm × 210 mm (8.74'' × 8.27'') |
| Inner Packaging | 1 pcs per box |
| Inner Box | 260 mm × 260 mm × 80 mm (10.24' × 10.24'' × 3.15'') |
| Inner Box | 1.04 kg (2.29 lb) |
| Packaging | 10 boxes per carton |
| Carton | 540 mm × 280 mm × 420 mm (21.26'' × 11.02'' × 16.54'') |
| Carton Weight | 11.4 kg (25.13 lb) |
| Minimum Order | 1 box |
| Environmental Constraints | |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 10 % –90 % (RH) |
| Ordering Information | |
| Type | Model Description |
| EAS Deactivator | DHI-ISC-EDR-100 RF Deactivator |
| Dimensions (Mm[Inch]) | |
| [8.7] | [9.5] 242.00 |
| 220.00 | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
