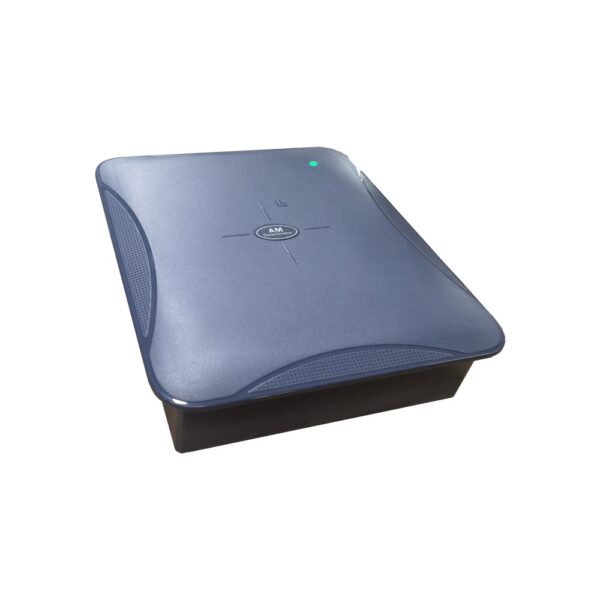

Distattivatore AM in ABS, alimentazione 220 Vac <25 W
Datasheet
Manuali
| Performance | |
| Technology | Acousto-Magnetic (AM) |
| Detection | 58 kHz ± 0.5 kHz |
| Label Decoding | ≤ 100 mm |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Deactivating | 120 labels/min |
| Rate | Conform with RoHS & CE |
| General | |
| Power Input | 220 VAC 50 / 60 Hz |
| Rated Power | 25 W |
| Power Plugs | European Standard |
| Color | Black |
| Length | 240 mm (9.45'') ± 0.5 mm (0.02'') |
| Width | 200 mm (7.87'') ± 0.5 mm (0.02'') |
| Thickness | 60 mm (2.36'') ± 0.5 mm (0.02'') |
| Installation | 220 mm × 180 mm (8.66'' × 7.09'') |
| Inner Packaging | 1 pcs per box |
| Inner Box | 295 mm × 230 mm × 90 mm (11.61'' × 9.06'' × 3.54'') |
| Inner Box | 1.0 kg (2.2 lb) |
| Packaging | 10 boxes per carton |
| Carton | 896 mm × 248 mm × 313 mm (35.28'' × 9.76'' × 12.32'') |
| Carton Weight | 11 kg (24.25 lb) |
| Minimum Order | 1 box |
| Environmental Constraints | |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 10 % –90 % (RH) |
| Ordering Information | |
| Type | Model Description |
| EAS Deactivator | DHI-ISC-EDA-100 AM Deactivator 220V |
| Dimensions (Mm[Inch]) | |
| [8.6] | 240.00 |
| 218.00 | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
