Antenna AM Primary, ABS, display, WISS cloud
598,41 € IVA inclusa
Antenna AM Replica, ABS, display
362,34 € IVA inclusa
Saldi
Antenna AM Primary, acrilico + ABS, display, WISS cloud
1.199,87 € IVA inclusa
Antenna AM (Primary) in ABS e acrilico trasparente, display OLED 1.3", gestione web WISS, distanza max rilevamento tag/label 2/1.8 m, porta RJ45, fino a 3 telecamere collegabili, alimentazione 220~240 Vac
| Performance | |
| Model | EAA8- EAA8- EAA8- EAA8- EAA8- C201-P C211-P C208-P C218-P C201-R |
| Technology | Acousto-Magnetic Antenna |
| Detection | 58 kHz |
| Detection | 1.8 – 2.0 m (5.91 ft – 6.56 ft) (Distance of two antennas) * |
| Distance of EAS | depending on environment |
| Detection | 2.0 – 2.4 m (6.56 ft – 7.87 ft) (Distance of two antennas) * |
| Distance of EAS | depending on environment |
| Alarm Volume | Max 90 dB (Adjustable) Primary Primary Primary Primary Replica |
| Antenna Type | antenna antenna antenna antenna antenna A single primary antenna can connect to two replica antennas |
| Adaptability | simultaneously |
| Sound and Light | Primary and Replica Antenna |
| Certifications | |
| RoHS | Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments. ICNIRP 2010 Guidelines ICNIRP 1998 Guidelines EC directive 2013/35/EU EC recommendation 1999/519/EC |
| Safety | IEEE C95.1:2005 EN IEC 62311:2020 EN 50364:2010 EN 62369-1:2010 |
| Ports | |
| TR Board Port | CH1 integrates into the main board, CH2 and CH3 can NA connect to the TR board as needed. |
| (CH1, CH2, CH3) | Output port for the linkage signal of the camera, up to |
| CCTV Port | NA 3 cameras can be connected simultaneously. |
| Interface | |
| Power Interface | HTTP, TCP/IP NA |
| Power Interface | SDK NA DSS Pro, DSS Pro, DSS Pro, DSS Pro, |
| Power Interface | Configtool, Configtool, NA Configtool Configtool WISS WISS |
| Regular Parameters | |
| Shell Material | ABS and acrylic |
| Shell Color | Transparent and white 220 – 240 100-130 220 – 240 100-130 24 VAC |
| Input Voltage | VAC @ 50 VAC @ 50 VAC @ 50 VAC @ 50 @ 50 Hz / Hz / 60 Hz Hz / 60 Hz Hz / 60 Hz Hz / 60 Hz 60 Hz |
| Output Voltage | 24 VAC / 3 A 24 VAC / 3 A 24 VAC / 3 A 24 VAC / 3 A NA |
| Power | |
| Typical Power | 20 W 20 W 20 W 20 W 18 W |
| Overall Exterior | 1521 mm × 360 mm × 134 mm (59.9'' × 14.2'' × 5.3'') |
| of Primary / | 1665 mm × 460 mm × 210 mm (65.6'' × 18.1'' × 8.3'') |
| Replica Antenna | 21.0 kg 21.0 kg 21.0 kg 21.0 kg 18.5 kg |
| Gross Weight | (46.29 lb) (46.29 lb) (46.29 lb) (46.29 lb) (40.79 lb) |
| Operating | |
| Installation | Vertical pole mount |
| Ordering Information | |
| Type | Model Description Network Ultra Acrylic AM DHI-ISC-EAA8-C201-P Antenna (Primary, 220V) Network Ultra Acrylic AM DHI-ISC-EAA8-C211-P Antenna (Primary, 110V) Network Ultra Acrylic |
| AM Anti-Theft | DHI-ISC-EAA8-C208-P AM Antenna (WISS |
| Antenna | Lic,Primary,220V) Network Ultra Acrylic DHI-ISC-EAA8-C218-P AM Antenna (WISS Lic,Primary,110V) Network Ultra Acrylic AM DHI-ISC-EAA8-C201-R Antenna (Replica) |
Informazioni addizionali
Prodotti Correlati
Antenna AM Primary, ABS, display, WISS cloud
598,41 € IVA inclusa
Installatore o Rivenditore? Registrati
SKU:
ISC-EAA2-C208-P

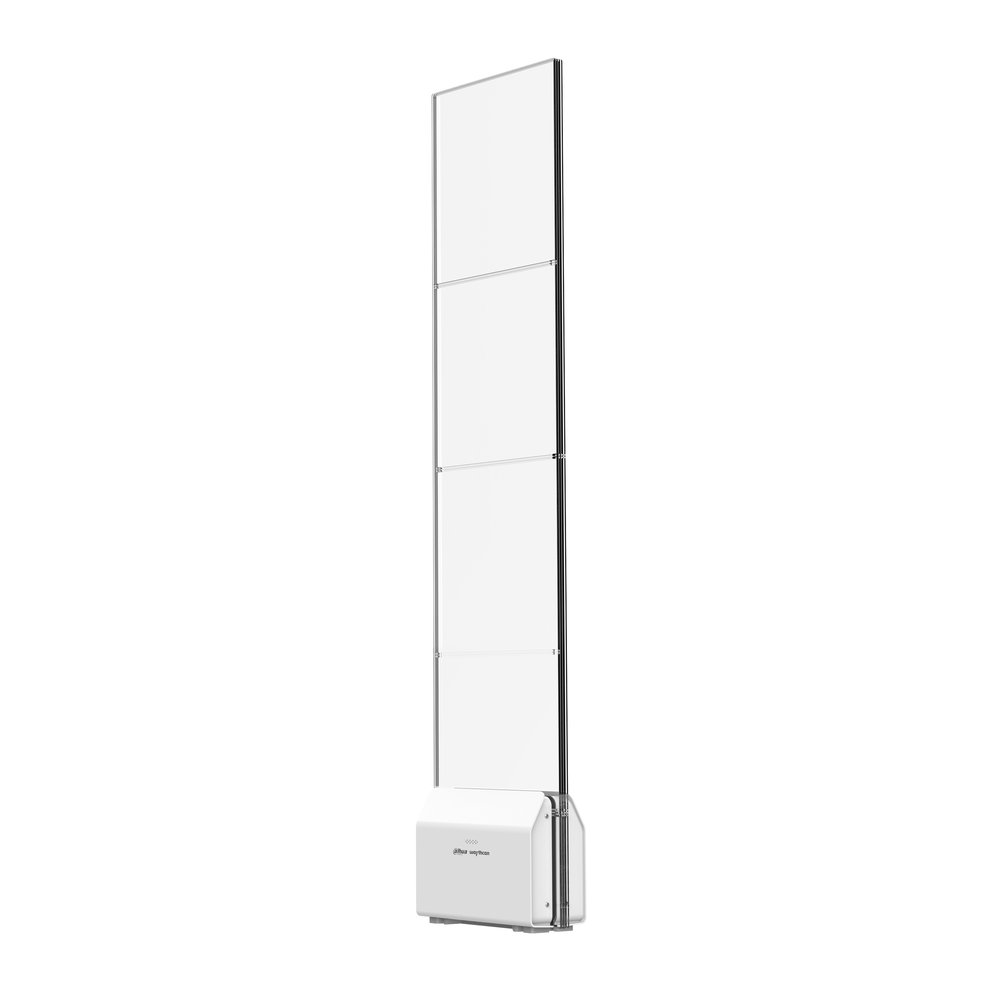

Antenna RF (RX) WISS cloud
