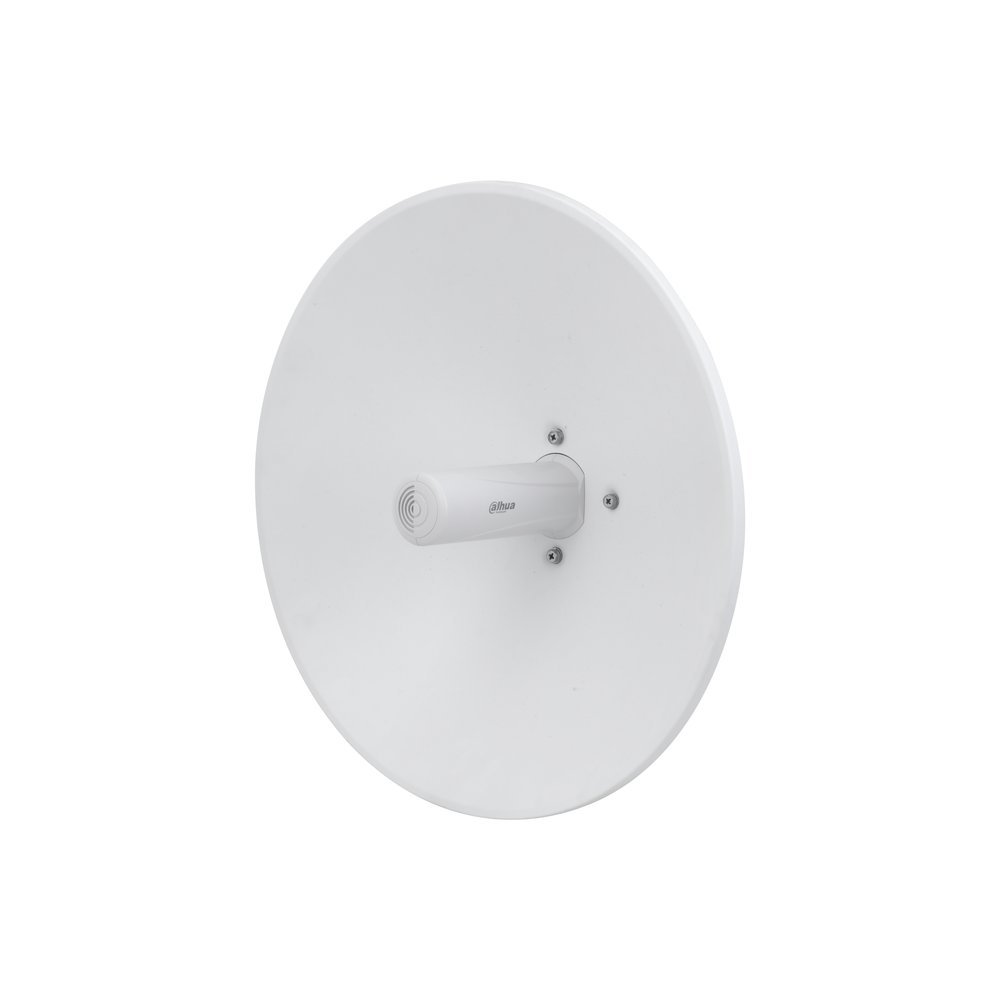

Ponte radio wireless 5G esterno 867 Mbps 20 km 25 dBi
462,99 € IVA inclusa
Ponte radio wireless 5G, portata massima 20 km, frequenza operativa 5.150~5.850 GHz, 867 Mbps, antenna 25 dBi, 1 porta RJ-45 10/100/1000 Mbps (WAN) e 2 porte RJ-45 10/100/1000 Mbps (LAN), alimentazione 12 Vdc/PoE <8.16 W, alimentatore incluso
Datasheet
Manuali
| Hardware | |
| Sold in Pairs | No Port 1: 1 × RJ-45 10/100/1000 Mbps (WAN) |
| Function Slots | Port 2: 1 × RJ-45 10/100/1000 Mbps (LAN) PoE (802.3af) |
| Power Supply | 12 VDC, 1.5 A Idling: 4.1 W |
| Power Consumption | Full load: 8.16 W |
| Memory | DDR 64 MB 1 × WAN 1 × LAN |
| Indicator Light | 1 × SYS Indicator: 1–5 |
| Function | |
| Operating Mode | AP; Station |
| Equipment Management | WEB |
| Network Protocol | HTTP;TCP/IP;IPv4;UDP;DHCP;DNS;ARP;Telnet |
| Protection Mode | OPEN; WPA; WPA2; WPA-PSK; WPA2-PSK MAC address filtering |
| Security Mechanism | User Isolation |
| DHCP | Yes |
| Firmware Update | Web update |
| Software | Wireless Function: hide SSID MAC Address Filtering: Wi-Fi Repeating; Auto Disable Wi-Fi User isolation: wireless network isolation; transmit power configuration; station limit: up to 64 |
| General | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Net Weight | 2.2 kg (4.85 lb) |
| Gross Weight | 5.69 kg (12.54 lb) 466 mm × 274 mm × 466 mm (18.35" × 10.79" × |
| Product Dimensions | 18.35") (L × W × H) 540 mm × 540 mm × 145 mm (21.26" × 21.26" × 5.71") |
| Packaging Dimensions | (L × W × H) |
| Protection | IP54 Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV |
| Lightning Protection | Differential mode: 1 kV |
| Installation | Pole mount 1 × Device 1 × Antenna Mount Component 1 × Power cord |
| Packing List | 1 × 48 V 0.5 A PoE Power Supply 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × QR code |
| Ordering Information | |
| Type | Model Description Long Range 5GHz Wireless |
| Wireless Bridge | DH-WB5-8AC-20 Bridge 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
