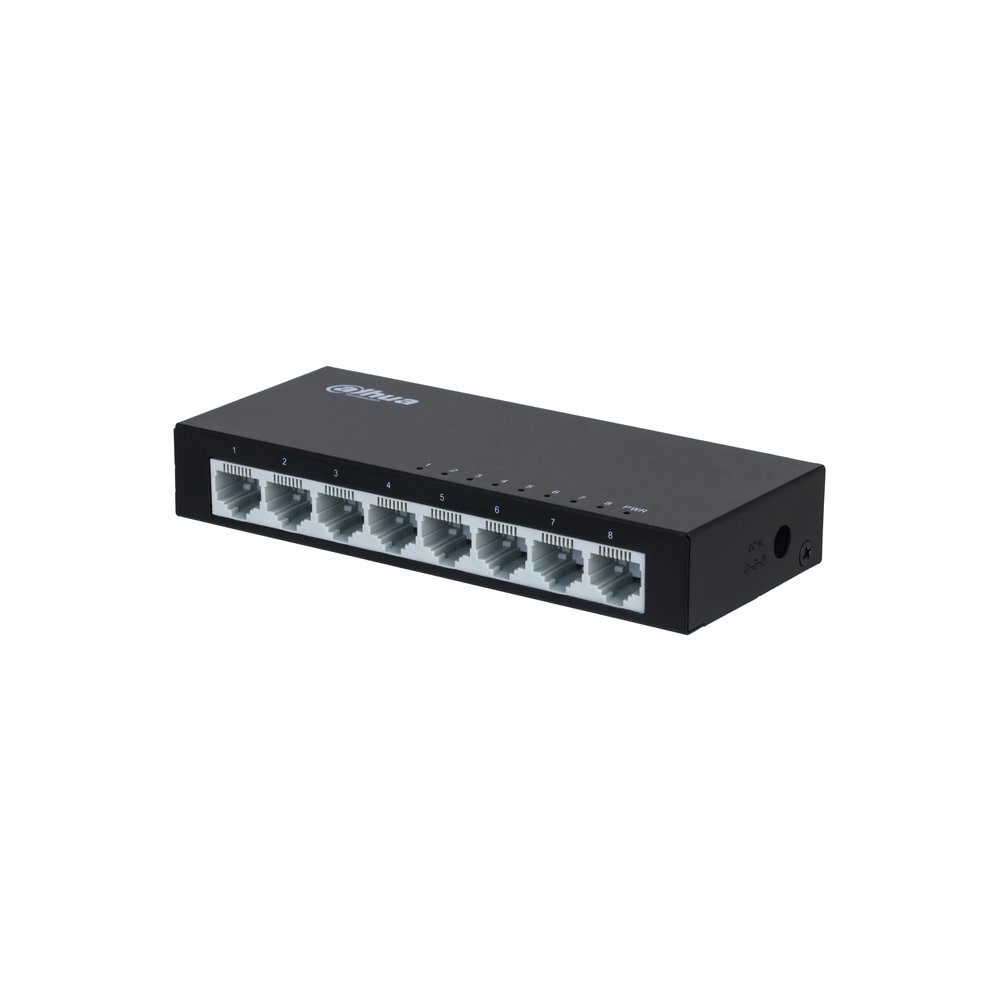

Switch unmanaged con 8 porte 10/100 Mbps, capacità switching 1.6 Gbps, rate inoltro pacchetti 1.19 Mpps, 5 Vdc, case in metallo
Datasheet
Manuali
| Hardware | |
| Included Power Adapter | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 100 Mbps |
| Description of Function | Port 1–8: 8 × 10/100 Base-T |
| Power Supply | 5 VDC; 1 A |
| Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
| Operating Humidity | 5%–95% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) Idling: 0.1 W; |
| Power Consumption | Full load: 0.75 W |
| Performance | |
| MTBF | 929.51 years |
| Switching Capacity | 1.6 Gbit |
| Packet Forwarding Rate | 1.1904 Mpps |
| Packet Buffer Size | 768 kbit |
| MAC Table Size | 2K |
| General | |
| Statics Protection | Contact discharge: 4 kV |
| Lighting Protection | Common mode: 2 kV |
| Net Weight | 0.23 kg (0.51 lb) |
| Gross Weight | 0.35 kg (0.77 lb) 133.5 mm × 56.0 mm × 22.0 mm |
| Product Dimensions | (5.26" × 2.20" × 0.87") 136.0 mm × 55.0 mm × 153.0 mm |
| Packaging Dimensions | (5.35" × 2.17" × 6.02") |
| Casing Material | Metal |
| Installation | Desktop mount |
