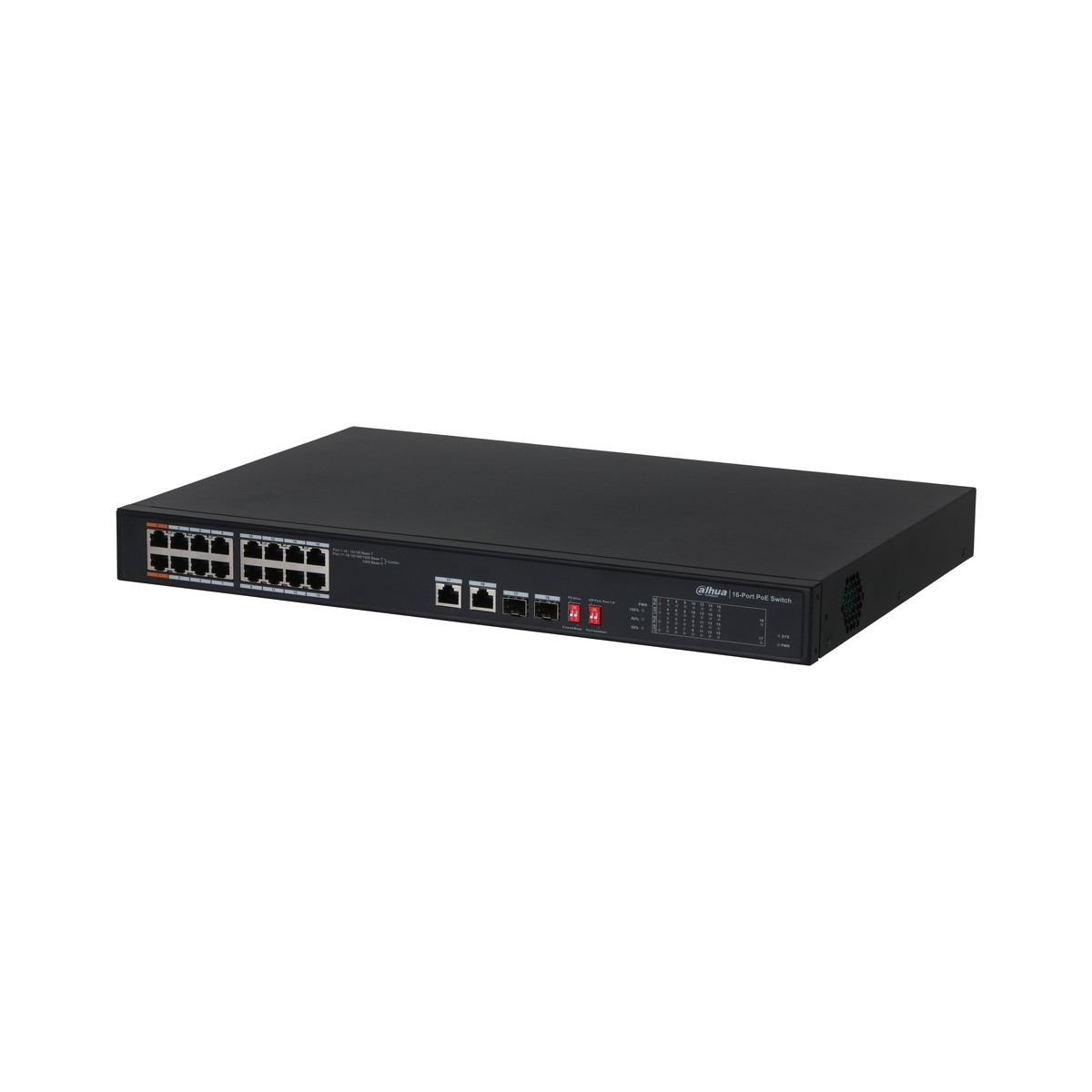

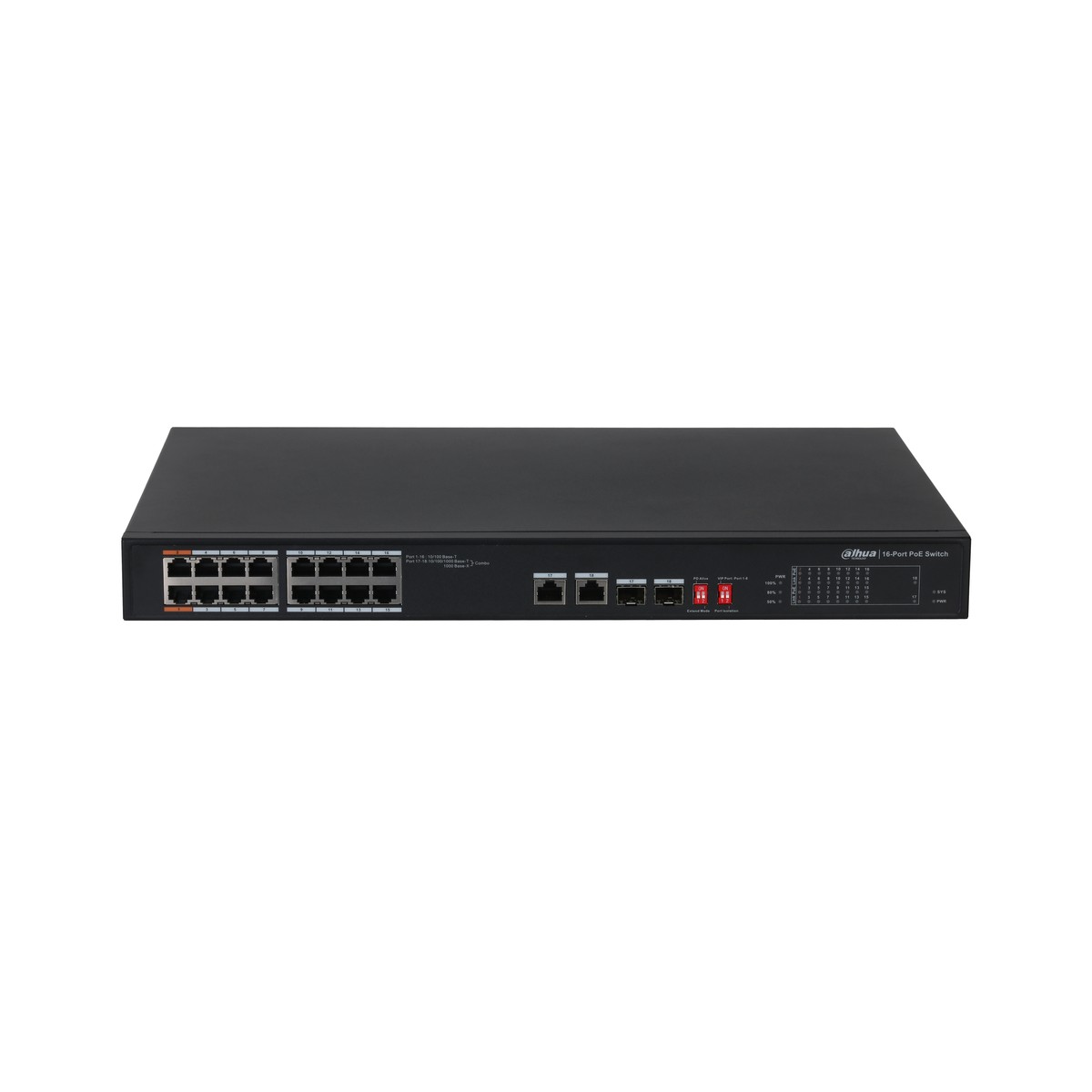

Switch unmanaged Layer 2 da 18 porte con 16 porte PoE 10/100 Mbps e 2 porte ottiche SFP, PoE intelligente IEEE 802.3af/at e Hi-PoE, porte 1~2 fino a 60 W, porte 3~16 fino a 30 W, budget PoE totale 135 W, PoE a lunga distanza, PD Alive (PoE watchdog), isolamento porte, QoS, capacità di commutazione 7.2 Gbps, inoltro pacchetti 5.3568 Mpps, buffer 4 Mbit, tabella MAC 8K, compatibile con moduli SFP 1.25G GSFP-1310-20-SMF e GSFP-850-MMF, ESD 6 kV, protezione fulmini 4 kV/2 kV, temperatura di esercizio -10~+55 °C, 440x300x44 mm
Datasheet
Manuali
| Performance | |
| Layer | Layer 2 |
| Managed | No |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.3568 Mpps |
| Packet Buffer Memory | 4 Mbit |
| MAC Table Size | 8K IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, |
| Standards Compliance | IEEE802.3z |
| Hardware Feature | |
| Standard Power Supply | Yes |
| PoE | Yes |
| Ethernet Port | 16 |
| Optical Port | 2 |
| Ethernet Port Rate | 100 Mbps |
| Poe | |
| PoE Standard | IEEE802.3af, IEEE802.3at, Hi-PoE |
| PoE Budget | Port 1–2≤60W, Port 3–16≤30W, total≤135W |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | Yes |
| Function | |
| VLAN | Port Isolation |
| QoS | Yes |
| System Maintenance | PD Alive |
| General | |
| ESD | Contact discharge: 6kV Common mode: 4kV |
| Thunderproof | Differential mode: 2kV |
| Dimensions | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") |
| Packaging Dimensions | 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") |
| Ordering Information | |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
