Switch Multi-Giga unmanaged 8 porte 10/100/1000/2500 Mbps
148,84 € IVA inclusa
Saldi

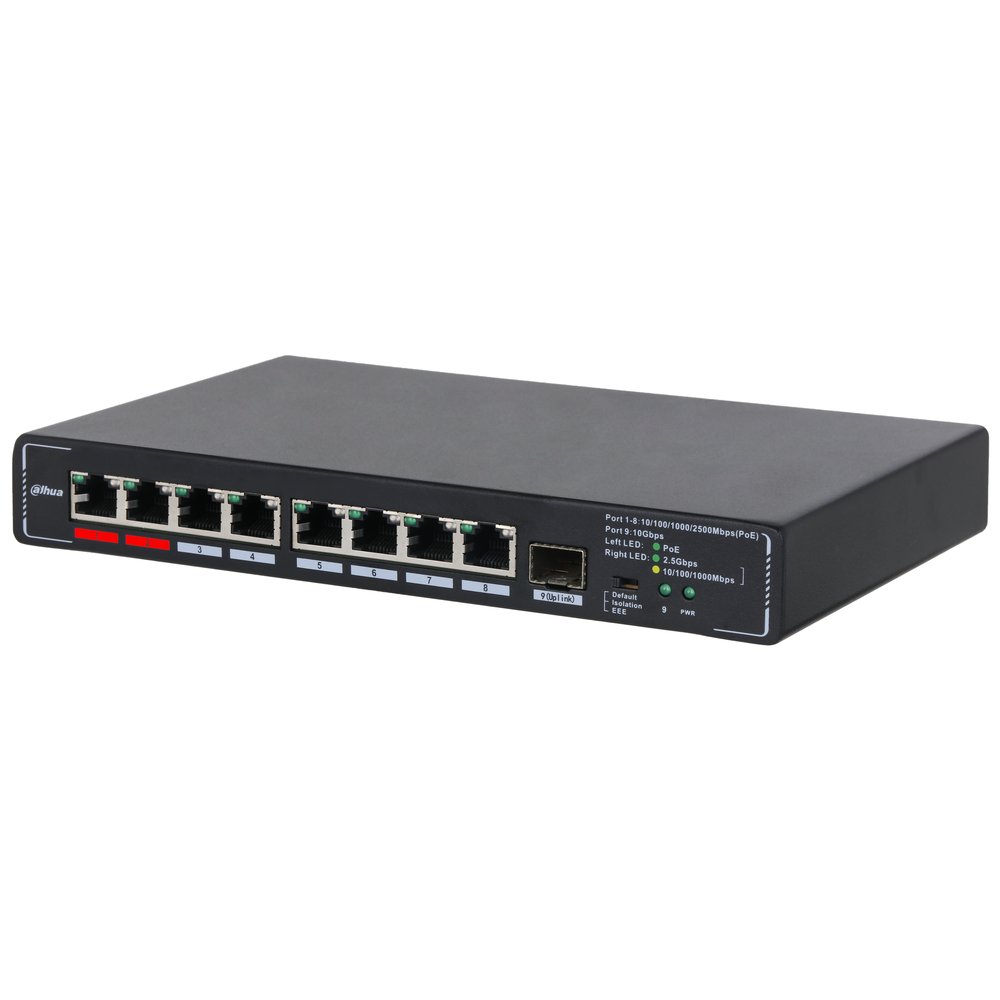

Switch Multi-Giga unmanaged 9 porte 10/100/1000/2500 Mbps
289,14 € IVA inclusa
Switch Multi-Giga unmanaged con 9 porte (8 PoE 10/100/1000/2500 Mbps <180 W + 1 SFP 1/10 Gbps), capacità switching 60 Gbps, rate inoltro pacchetti 44.64 Mpps, 2 red port 90 W, 53 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Unmanaged |
| Switching Capacity | 60 Gbps |
| Packet Forwarding Rate | 44.64 Mpps |
| Description of Function | Port 1-8: 8 × RJ-45 10/100/1000/2500 Mbps (PoE) Port 9: 1 × SFP 1/10 Gbps |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, max 3.77 A Idling: 10.48 W |
| Power Consumption | Full load: 180 W Air discharge: 8 kV |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lightning Protection | Differential mode: 2 kV |
| Net Weight | 0.73 kg (1.61 lb) |
| Gross Weight | 1.796 kg (3.95 lb) 220 mm × 141 mm × 30 mm (8.66" × 5.55" × 1.18") (L × |
| Product Dimensions | W × H) 302 mm × 185 mm × 118 mm (11.88" × 7.28" × 4.64") (L |
| Packaging Dimensions | × W × H) |
| Casing Material | Metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 1-2 ≤ 90 W, Port 3-8 ≤ 30 W, total ≤ 180 W |
| Hardware | |
| DIP Switch | uplink ports 9. These uplink ports can also send their traffic to 1-8. EEE: Energy Efficient Ethernet (EEE) function. |
| Performance | |
| Packet Buffer Size | 8 Mbit |
| Jumbo Frame | 12K Byte |
| MAC Table Size | 4K IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE |
| Communication Standard | 802.3z; IEEE 802.3az; IEEE 802.3ad; IEEE 802.3ae |
| General | |
| Packing List | 1 × Power Adapter 1 × Power Cord 1 × Mounting Kit The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Ordering Information | |
| Type | Model Gigabit RJ45 SFP Module GSFP-RJ45 1.25G 1310/1550nm,20km,LC, Single- GSFP-1310T-20-SMF mode 1.25G 1550/1310nm,20km,LC, Single- GSFP-1310R-20-SMF mode 1.25G 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF 1.25G 850nm,550m,LC, Multi-mode GSFP-850-MMF |
| SFP module | 10G 1270/1330nm,20km,LC, Single- TSFP-1270T-20-SMF mode 10G 1330/1270nm,20km,LC, Single- TSFP-1270R-20-SMF mode 10G 1310nm,20km,LC, Single-mode TSFP-1310-20-SMF 10G 1550nm,40km,LC, Single-mode TSFP-1550-40-SMF 10G 850nm,300m,LC, Multi-mode TSFP-850-MMF |
