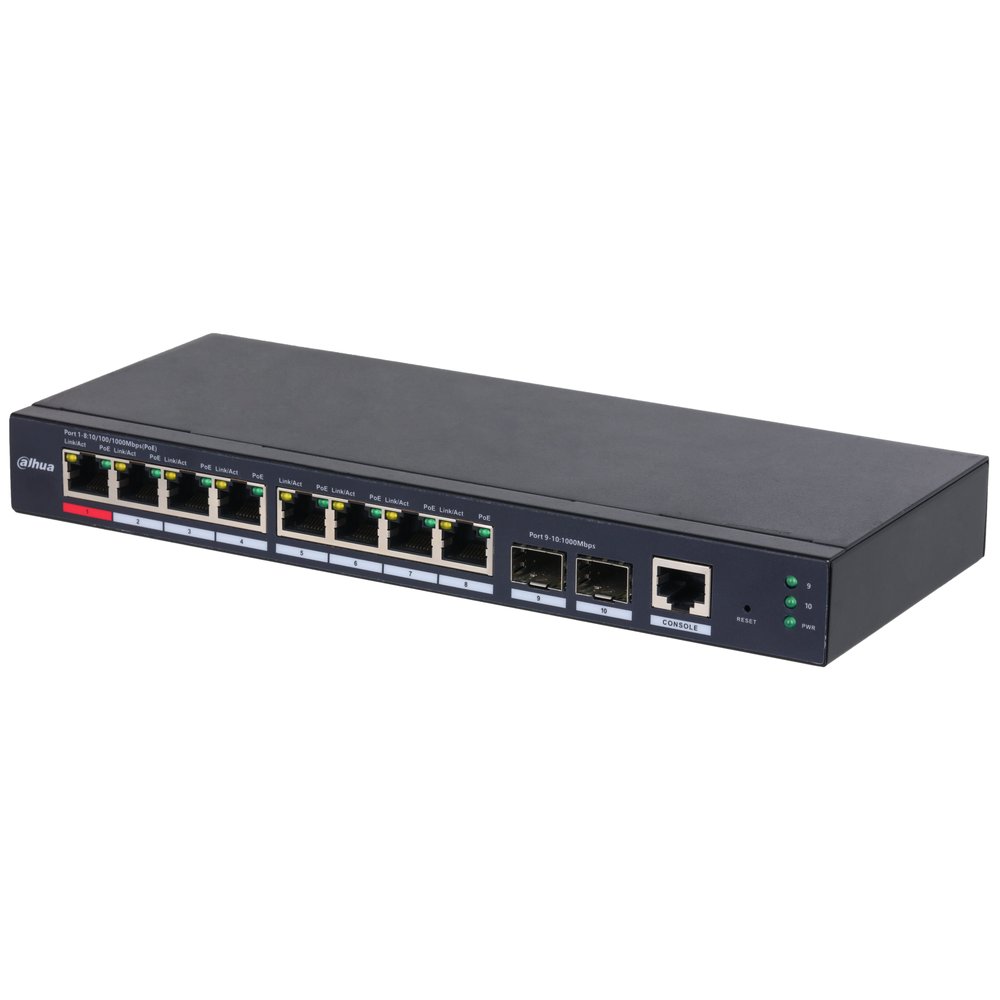

Switch managed (anche tramite Cloud) con 10 porte Gigabit (8 10/100/1000 Mbps PoE <110 W + 2 Base-X 1000 Mbps), capacità switching 20 Gbps, rate inoltro pacchetti 14.88 Mpps, red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 48-57 Vdc, alimentatore incluso
Datasheet
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Optical Port Speed | 1 Gbps |
| Optical Port Uplink Speed | 1 Gbps Port 1-8: 8 × 10/100/1000Base-T |
| Description of Function Slots | Port 9-10: 2 × 1000Base-X |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Power Supply | 48-57 VDC,2.22 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing Idling load:3.5 W |
| Power Consumption | Full load: 110 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | Yes |
| MTBF | 1407459.54 hours |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Size | 4.1 Mbit |
| Jumbo Frame | 9K Byte |
| MAC Table Size | 8K |
| VLAN Number | 4K |
| VLAN Interface | 10 IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; |
| Communication Standard | IEEE 802.3z; IEEE 802.3ad |
| Feature | |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | Yes |
| Spanning Tree Protocol | STP/RSTP |
| VLAN Function | Yes |
| Link Aggregation | Static link aggregation; LACP |
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) |
| Multicast | IGMP Snooping V1/V2 |
| DHCP Function | DHCP client |
| Security | 802.1X |
| QoS/ACL | QoS WEB(http and https) |
| Equipment Management | SNMP V1/V2C/V3 |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 2 kV |
| Lighting Protection | Differential mode: 1 kV |
| Net Weight | 0.64 kg(1.41 lb) |
| Gross Weight | 1.50 kg(3.30 lb) 240 mm × 104 mm × 28 mm (9.45" × 4.12" × 1.10") |
| Product Dimensions | (L × W × H) 316 mm × 240 mm × 82 mm(12.44" × 9.45" × 3.23") |
| Packaging Dimensions | (L × W × H) |
| Casing Material | SGCC |
| Installation | Desktop mount; Wall mount |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10Ω/100m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| Type | Model 1.25G 1310/1550nm,20km,LC, Single-mode GSFP-1310T-20-SMF 1.25G 1550/1310nm,20km,LC, Single-mode GSFP-1310R-20-SMF |
| SFP module | 1.25G 1310nm,20km,LC, Single-mode GSFP-1310-20-SMF 1.25G 850nm,550m,LC, Multi-mode GSFP-850-MMF |
| Dimensions (Mm[Inch]) | |
| 101.7 | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
