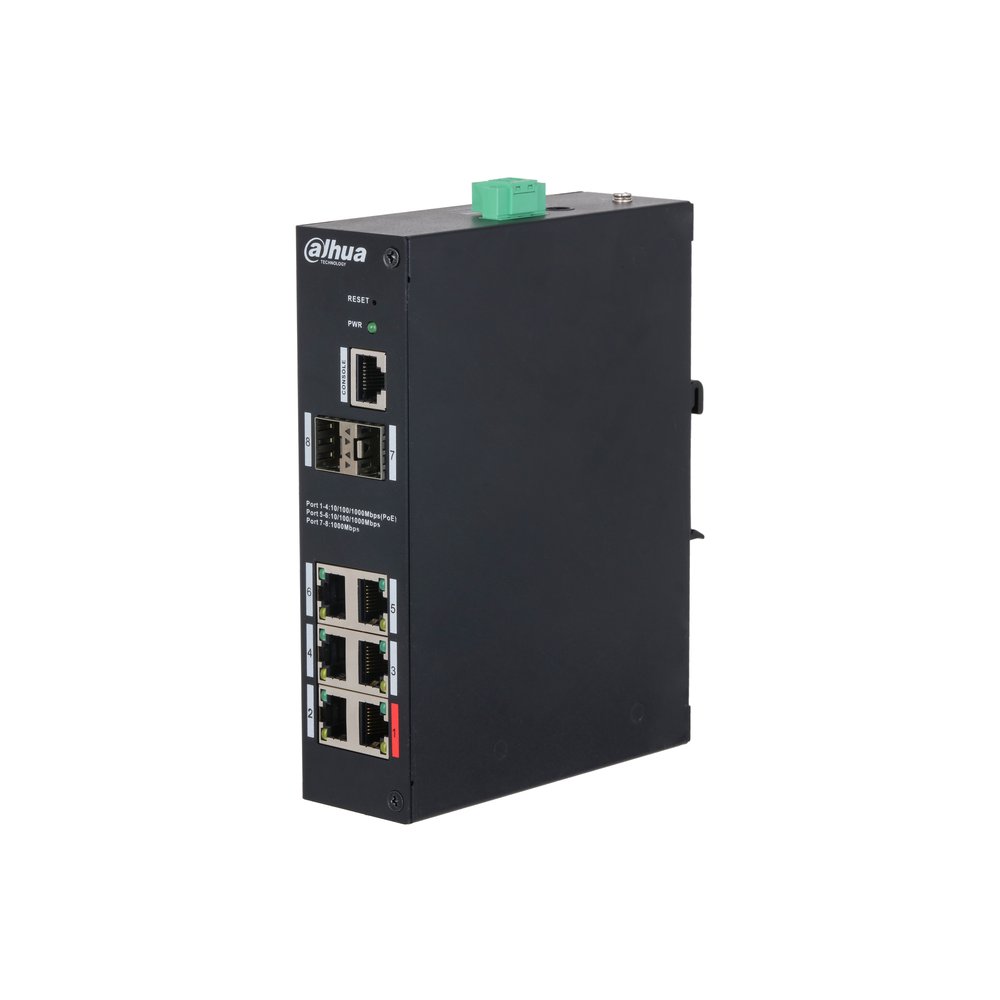

Switch hardened managed (anche tramite Cloud) con 8 porte Gigabit (4 10/100/1000 Mbps PoE <90 W + 2 10/100/1000 Mbps uplink + 2 SFP 1000 Mbps uplink), capacità switching 16 Gbps, rate inoltro pacchetti 11.9 Mpps, red port 90 W, PoE watchdog, trasmissione PoE fino a 250 m, 53 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Switching Capacity | 11.90 Mpps |
| Packet Forwarding Rate | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Description of Function Slots | Port 7-8: 2 × SFP 1000 Mbps (uplink) Port 1 ≤ 90 W, Port 2-4 ≤ 30 W, total ≤ 90 W |
| PoE Power | Layer 2 |
| Layer | Yes |
| Management Type | –30 °C to +65 °C (-22 °F to +149 °F) |
| Operating Temperature | 5%–95% (RH), non-condensing |
| Operating Humidity | Idling: ≤4 W ; Full load: 96 W |
| Power Consumption | External power supply: 53 VDC, 1.81 A |
| Power Supply | Air discharge: 8 kV; Contact discharge: 6 kV |
| Statics Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Lighting Protection | 0.66 kg (1.45 lb) |
| Net Weight | 162 mm × 123.6 mm × 42 mm (6.38" × 4.87" × 1.65") |
| Product Dimensions | (L × W × H) |
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 4 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Debugging | 1 × Console port |
| Reset Button | 1 |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Performance | |
| Smart Managed Switch | Yes |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) |
| Long Distance PoE | Yes |
| Transmission | STP/RSTP |
| Spanning Tree Protocol | Port-based VLAN |
| VLAN Function | Yes |
| IEEE 802.3x Flow Control | DHCP Client |
| DHCP Function | Qos |
| QoS/ACL | Web management |
| General | |
| Gross Weight | 1.43 kg (3.15 lb) 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × |
| Packaging Dimensions | 5.06") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; DIN-Rail mount |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| SFP module | GSFP-1310-20-SMF 1.25G 1310nm,20km,LC, Single-mode GSFP-850-MMF 1.25G 850nm,550m,LC, Multi-mode |
