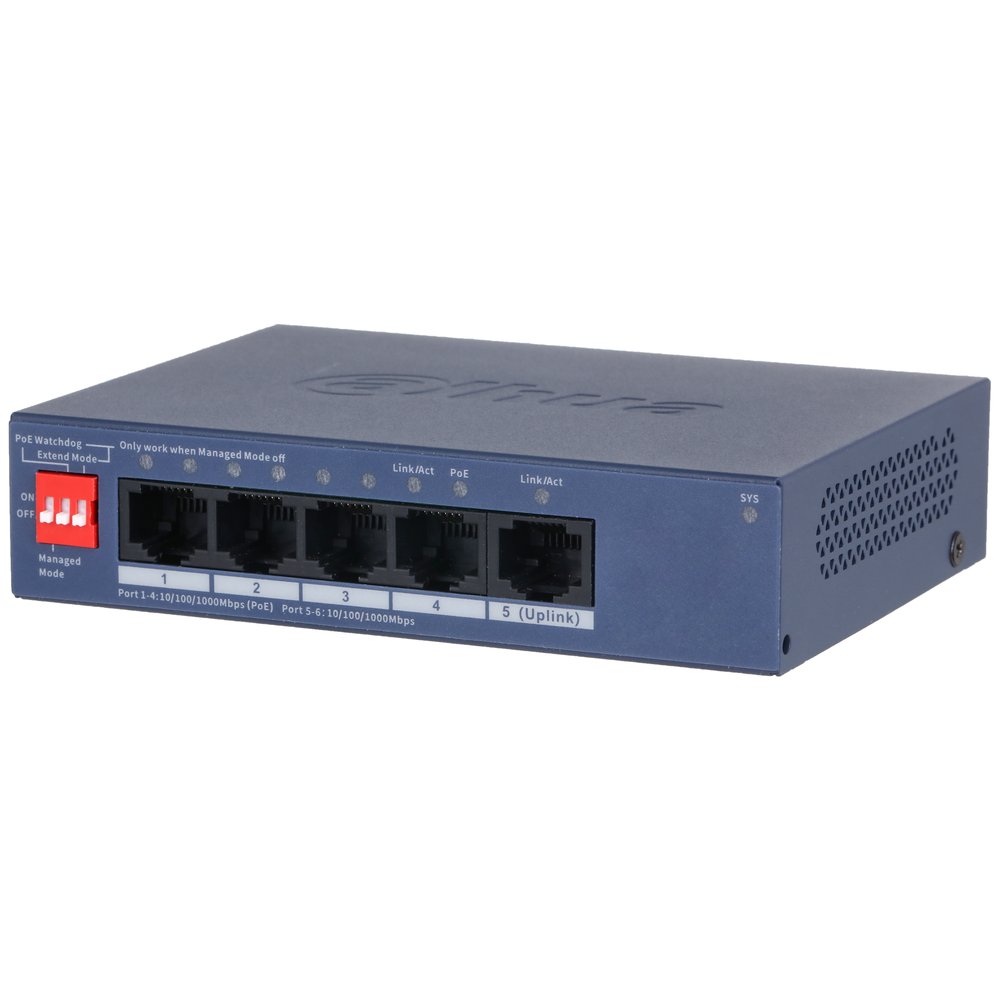

Switch Cloud managed con 5 porte Gigabit (10/100/1000 Mbps, 4 PoE <36 W + 1 uplink), capacità switching 10 Gbps, rate inoltro pacchetti 7.4 Mpps, PoE watchdog, trasmissione PoE fino a 250 m, 53 Vdc, alimentatore incluso
Datasheet
Manuali
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| Description of Function | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5: 1 × |
| Slots | RJ-45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 53 VDC, 0.8 A Idling: ≤3 W |
| Power Consumption | Full load: 42.4 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 6 kV; Differential mode: 0 kV |
| Net Weight | 0.2 kg (0.44 lb) |
| Gross Weight | 0.72 kg (1.59 lb) 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × |
| Product Dimensions | W × H) 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × |
| Packaging Dimensions | W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Poe | |
| PoE | Yes |
| PoE Power | Port 1-4 ≤ 30 W, total ≤ 36 W |
| PoE Protocol | IEEE802.3af; IEEE802.3at |
| PoE Power Consumption | PoE power consumption management; PoE power on/ |
| Management | off; turns off PoE if overload is detected （ ） （ ） |
| PoE Pin Assignment | 1, 2, 4, 5 V+ , 3, 6, 7, 8 V- |
| Long Distance PoE | Yes |
| Hardware | |
| DIP Switch | works when Managed Mode is Off) Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off) |
| Reset Button | 1 |
| Performance | |
| MTBF | 232.62 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 2K IEEE 802.3; IEEE 802.3u; |
| Communication Standard | IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az |
| VLAN Number | 32 |
| Feature | |
| VLAN Function | IEEE 802.1Q VLAN IEEE 802.3x Flow Control; Unknown Unicast Suppression; Multicast Storm Control; |
| Port Feature | Broadcast Storm Control; MAC+Port Binding Loop; Prevention N:1 Mirroring; |
| Mirror | Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation Web Management; Cloud Management; Logs; Fault |
| General | |
| Packing List | × 1; Power adapter × 1; Power cord × 1 |
| Transmission Performance | |
| Cable(m) | Load Capacity(W) Bandwidth(Mbps) |
| Ieee802.3Bt 90W | |
| 100 | 71.3 1000 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| Hi-Poe 60W | |
| 100 | 53 1000 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 1000 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Ordering Information | |
| Type | Model Description 5-Port Cloud Managed |
| PoE Switch | Desktop Gigabit Switch DH-CS4005-4GT-36 with 4-Port PoE |
