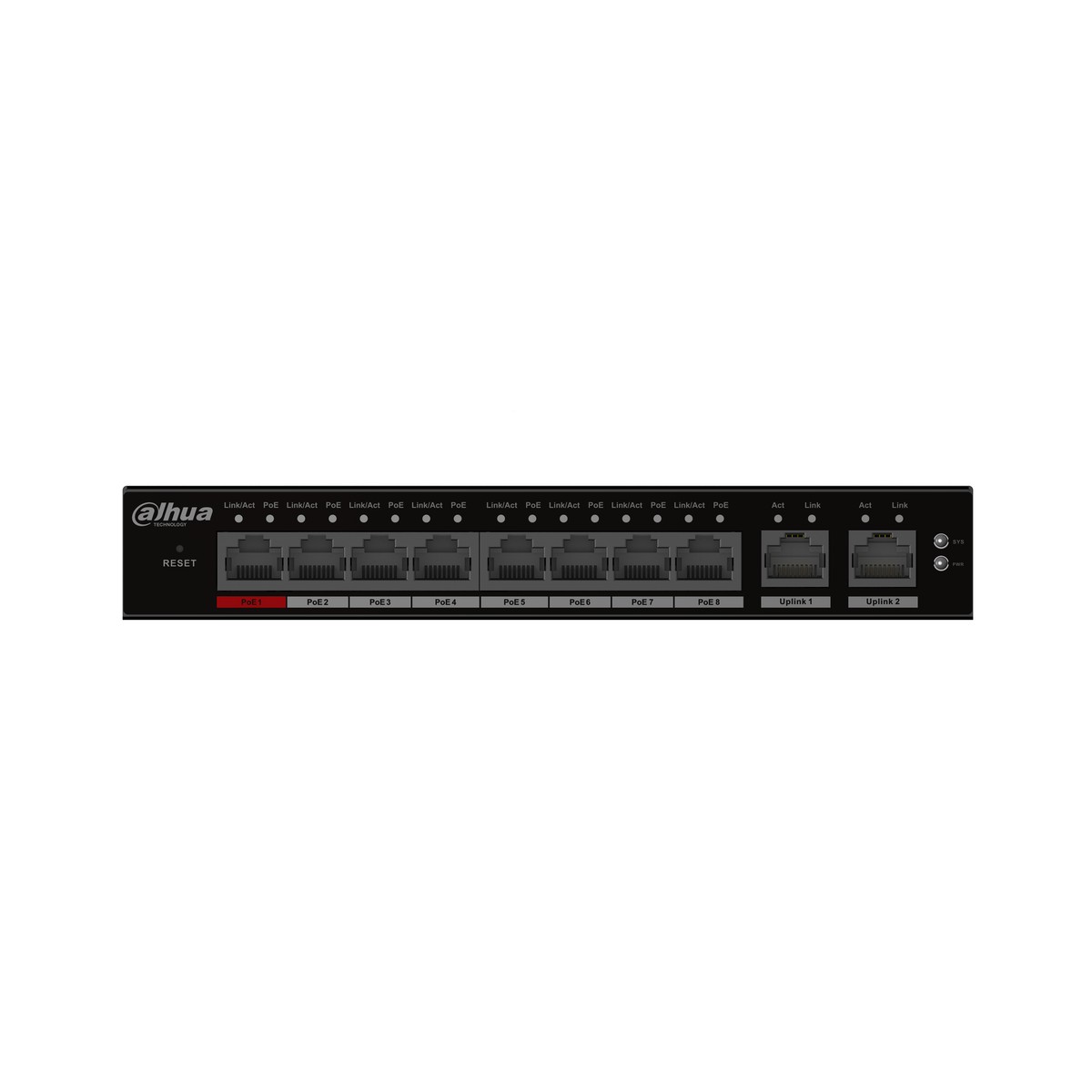

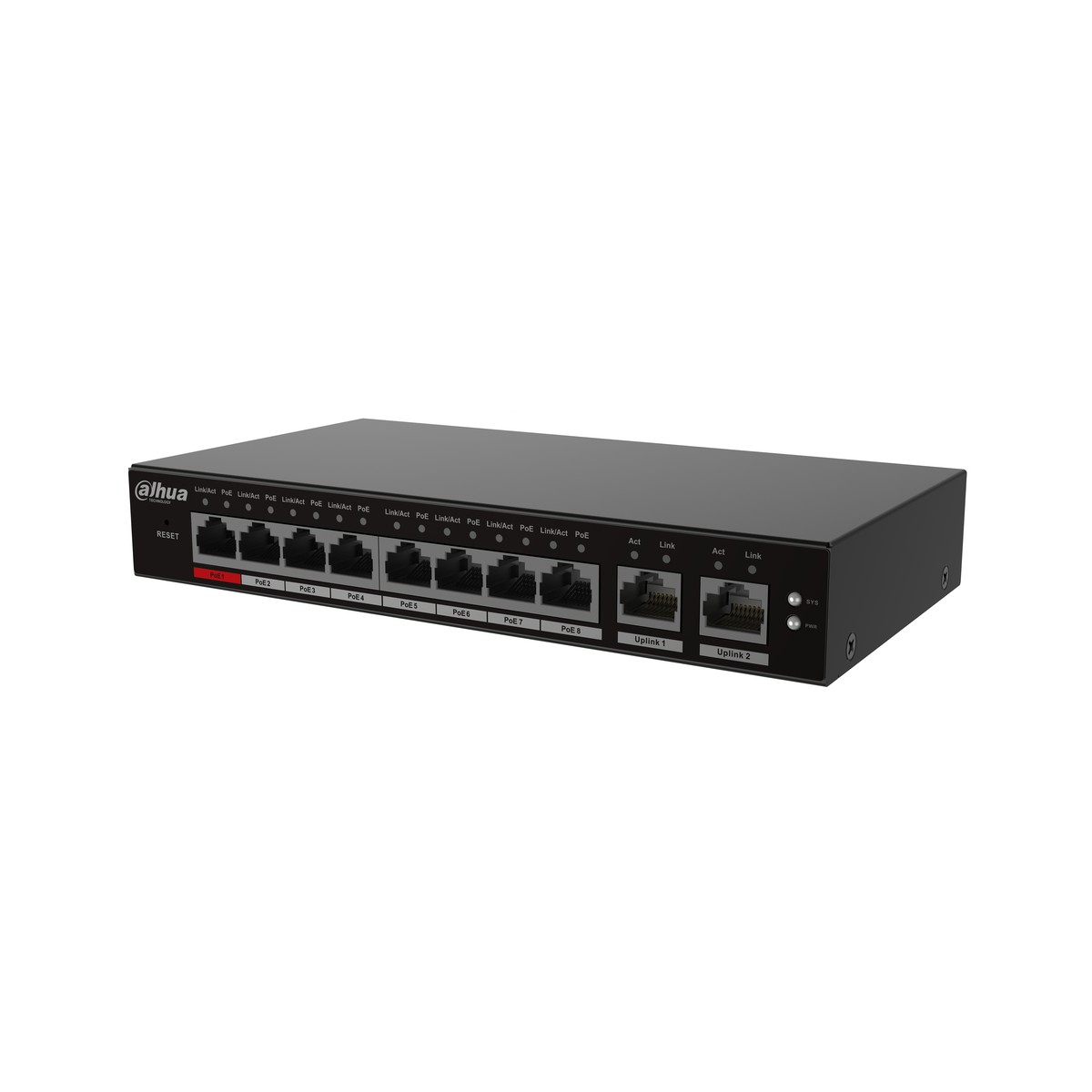

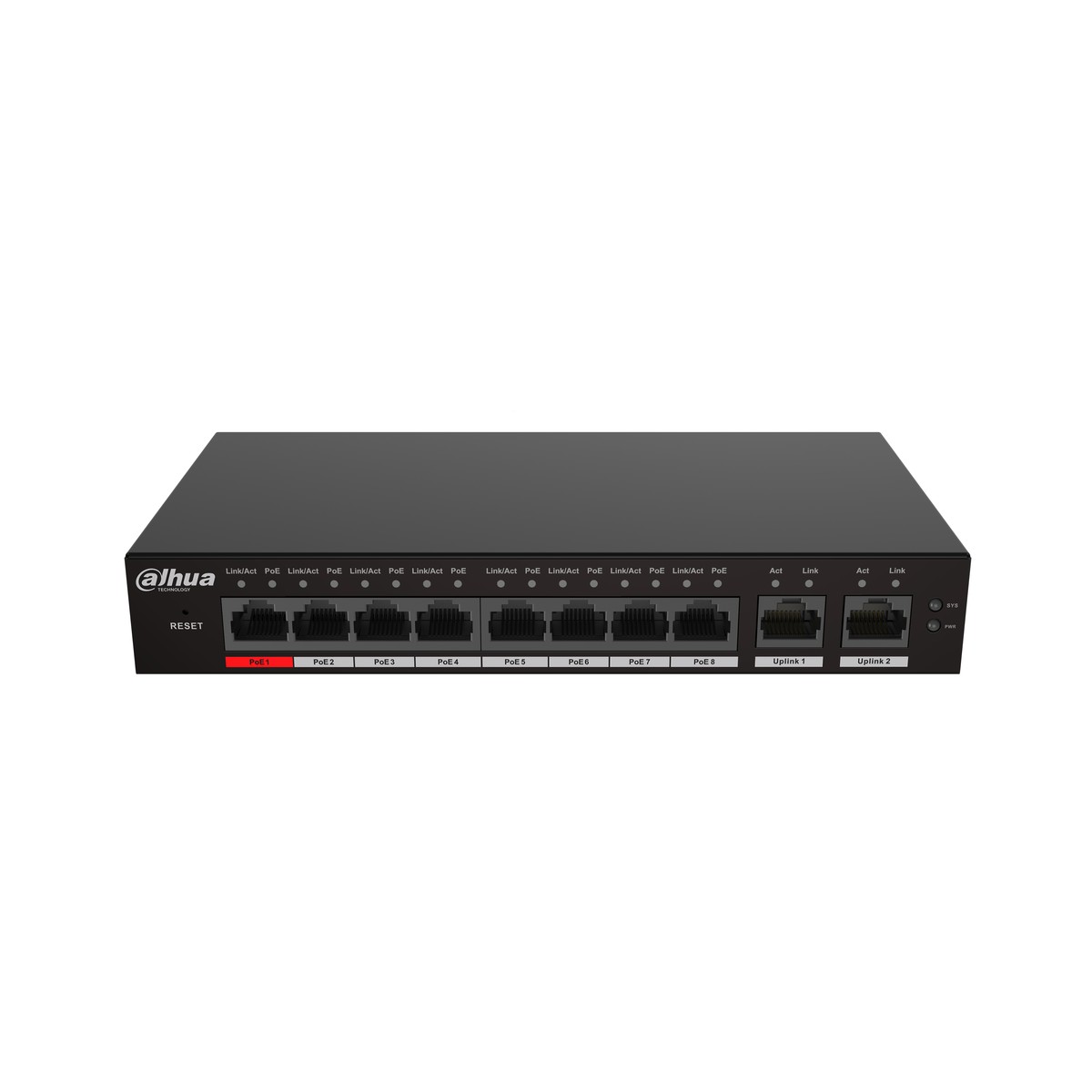

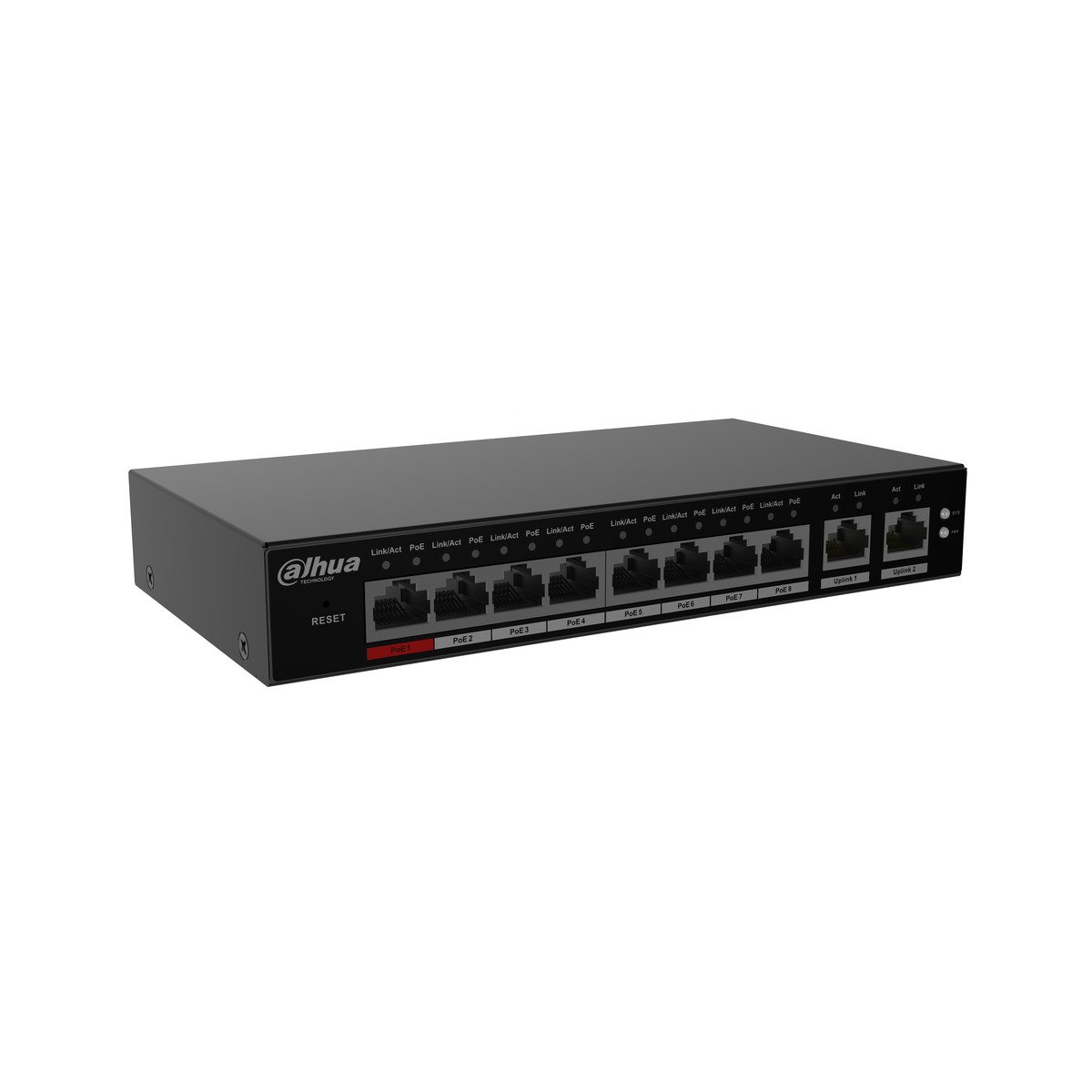

Switch Cloud managed 10 porte con 8 porte PoE e 2 porte Gigabit, gestione visuale e manutenzione remota da app mobile e ConfigTool, generazione automatica della topologia di rete, PoE a 8 pin IEEE 802.3af/at/bt e Hi-PoE, porta 1 fino a 90 W, porte 2~8 fino a 30 W, budget PoE totale 96 W, PoE a lunga distanza fino a 250 m, PoE watchdog, gestione della potenza PoE, capacità di commutazione 7.2 Gbps, inoltro pacchetti 4.17 Mpps, tabella MAC 16K, client DHCP, protezione fulmini 4 kV (modo comune) e 2 kV (modo differenziale), ESD 6 kV, 190x100x30 mm
Datasheet
Manuali
| Performance | |
| Smart Managed Switch | Yes |
| MTBF | 864,663 h |
| Switching Capacity | 7.2Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 1,664 Bytes |
| MAC Table Size | 16K |
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt Port 1 ≤90 W; |
| PoE Power | Port2–8 ≤30 W; Total ≤96 W |
| PoE Power Consumption | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–) |
| Long Distance PoE | Yes |
| DHCP Function | DHCP Client Operation and maintenance management on mobile |
| Equipment Management | app; ConfigTool configuration and management |
| General | |
| Statics Protection | Contact discharge: 6 kV Common mode: 4 kV |
| Lighting Protection | Differential mode: 2 kV |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 0.63 kg (1.39 lb) |
| Product Dimensions | 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18") |
| Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") |
| Transmission Performance: | |
| CAT5E/CAT6. Max. DC resistance < 10Ω/100m | Load Capacity(W) Bandwidth(Mbps) |
| 100 | 71.3 100 |
| 150 | 62 10 |
| 200 | 51 10 |
| 250 | 40 10 |
| 100 | 53 100 |
| 150 | 50 10 |
| 200 | 47 10 |
| 250 | 37 10 |
| Ieee802.3At 30W | |
| 100 | 25.5 100 |
| 150 | 25.5 10 |
| 200 | 25.5 10 |
| 250 | 25.5 10 |
| Dimensions (Mm[Inch]) | |
| [1.18] | mm[inch] 190.0 [7.48] |
| 30.0 | 105.7 [4.16] 100.3 [3.95] |
