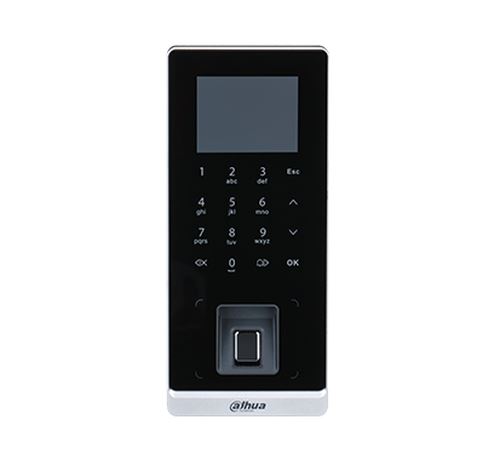

Controllo Accessi Standalone
Codice produttore: DHI-ASI2212H-DW
| System | |
| Main Processor | High-performance embedded processor |
| Network Protocol | IPv4; TCP; UDP; P2P |
| Basic | |
| Display Screen | 2.4" LCD |
| Screen Type | LCD |
| Resolution | 240 (H) × 320 (V) |
| Voice Prompt | Yes |
| Buzzer | Yes |
| Casing | PC + ABS |
| Function | |
| Unlock Mode | unlock through their combinations |
| Card Type | ID card |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Max Transmission Powe | ≤20dBm@2400-2483.5MHz r |
| Wireless Security Encryption | WPA/WPA2;WPA-PSK/WPA2-PSK 1 × RS-485 card reader |
| Peripheral Card Reader | 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Multi-factor Authentication | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Performance | |
| Card Reading Distance | 0-5 cm (0" to 1.97") |
| Fingerprint Sensor Type | Capacitive fingerprint scanner |
| Fingerprint Comparison Time | 1 s |
| User | |
| User (Card) Type | blocklist user and others |
| Capacity | |
| User Capacity | 30,000 users |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 30,000 |
| Password Capacity | 30,000 |
| Record Capacity | 150,000 unlock records |
| Port | |
| RS-485 | 1 |
| RS-232 | 1 |
| Wiegand | 1-ch input/output |
| USB | 1 × USB2.0 port |
| Network Port | 1 × RJ-45, 100 Mbps |
| Alarm Input | 2 (digital quantity) |
| Alarm Output | 1 (relay) |
| Alarm Linkage | Yes |
| Doorbell | 1 |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Adapter | Optional |
| Power Supply | 12 V DC, 1 A |
| Protection | guide) |
| Power Consumption | ≤ 12 W 183 mm × 80 mm × 25.5 mm (7.20" × 3.15" × 1.00") |
| Product Dimensions | (H × W × D) 248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60") |
| Packaging Dimensions | (H × W × D, 1 in an inner carton) |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Operating Humidity | 10%–95% (RH), no condensing |
| Operating Environment | Indoor; outdoor |
| Net Weight | 264 g (0.58 lb) |
| Gross Weight | 464 g (1.02 lb) |
| Accessory | Bracket (included) |
| Installation | Surface mount |
