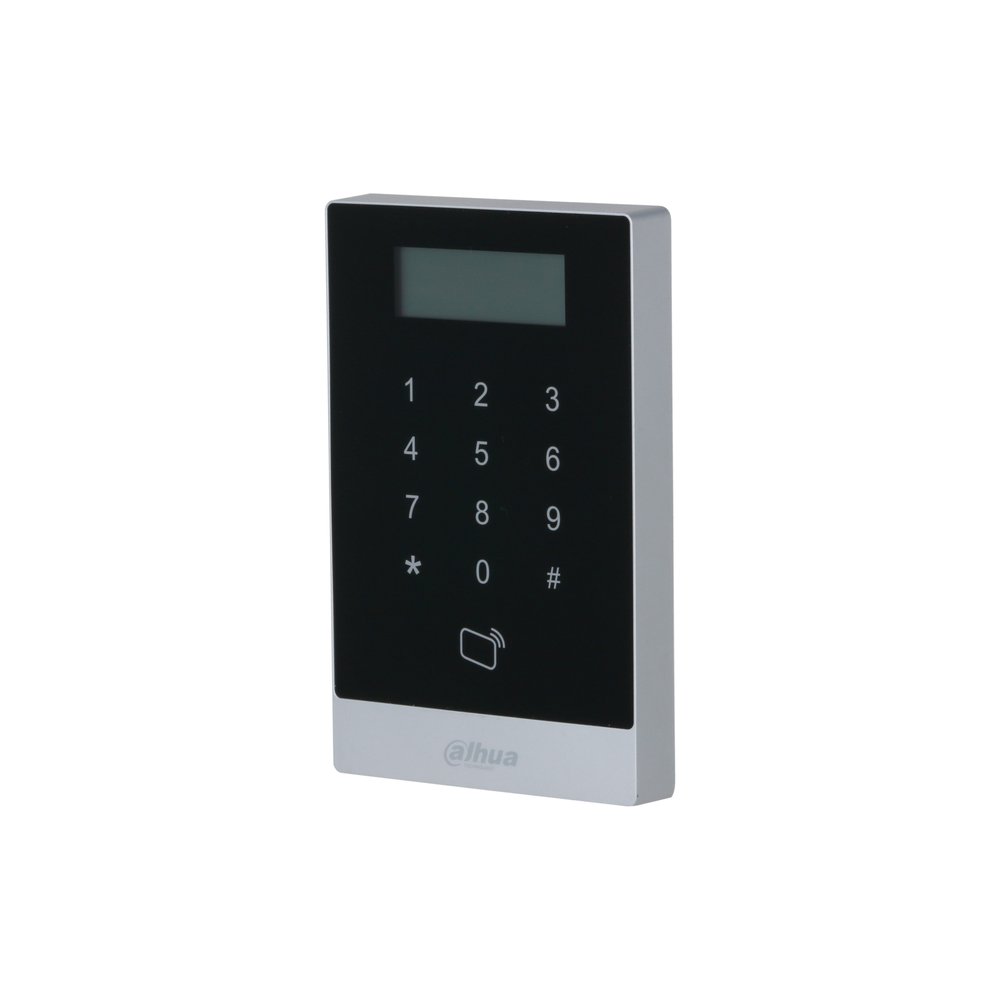

Lettore per controllo accessi standalone da interno, display STN, sblocco tramite card IC (13.56 MHz) / card ID (125 KHz) e password, anche in combinazione, 1 porta LAN 10/100 Mbps, RS485 e Wiegand 26 / 34 (default) / 66, 1 ingresso e 1 uscita allarme, 1 uscita per controllo porta, 1 ingresso per sensore stato porta, 1 pulsante apertura porta, 30000 utenti, 30000 card, 150000 record, tastiera touch retroilluminata, alimentazione 12 Vdc <12 W
| System | |
| Main Processor | Embedded Processor |
| Button Type | Touch button |
| Network Protocol | TCP/IP |
| OSDP Protocol | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | STN display screen |
| Screen Type | Non-touchscreen |
| Screen Resolution | 123 (H) × 32 (V) |
| Buzzer | Yes |
| Backlight | Yes |
| Casing Material | PC and ABS |
| Function | |
| Verification Method | Card;Password;Remote |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes Includes 1-channel RS-485 card reader and 1-channel |
| Peripheral Card Reader | Wiegand card reader |
| Issuing Card by Master Card | Yes |
| Multi-user Authentication | Yes |
| Auto Registration | Yes |
| Rfid | |
| Card Type | IC card;ID card |
| Performance | |
| Card Reading Distance | ID card: 0 mm–30 mm (0"–1.18") |
| User | |
| User (Card) Type | Normal user |
| Capacity | |
| User Capacity | 30,000 |
| Card Capacity | 30000 30,500 (Includes 30,000 user passwords and 500 public |
| Password Capacity | passwords) |
| Record Capacity | 150000 |
| Port | |
| RS-485 | 1 1 (Wiegand input is 26, 34 or 66 bits self-adaptive; |
| Wiegand | Wiegand output is 34 bits by default, and can be configured to 26 or 66 bits.) |
| Network Port | 1-channel 10/100 Mbps Ethernet port |
| Alarm Input | 1 channel |
| Alarm Output | 1 channel |
| Alarm Linkage | Yes |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Power Output Port | 1 channel |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding | Yes |
| General | |
| Power Adapter | Optional DC 12 V 1 A (The access standalone does not supply power to the lock.) DC 12 V 2 A (The access standalone supplies power to |
| Power Supply | the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.) ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does |
| Power Consumption | supply power to the lock, it is calculated based on the actual amount of power of the lock.) 150.6 mm × 96.6 mm × 16.5 mm (5.93" × 3.80" × 0.65") |
| Product Dimensions | (H× W × D) |
| Packaging Dimensions | W × D) |
| Transport Package | 604 mm × 290 mm × 314 mm (23.78" × 11.42" × 12.36") (H× W × D) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Indoor |
| Gross Weight | 346 g (0.76 lb) |
| Accessory | The bracket is included. |
| Installation | Surface Mount;86 mm Junction Box Mount |
| Certifications | |
| Storage Temperature | –30 °C to +80 °C (–22 °F to +176 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
| Ordering Information | |
| Type | Model Description Dahua Card Swiping,Password |
| Access Standalone | DHI-ASI1201A-ME Access Standalone |
| Dimensions (Mm[Inch]) | |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
