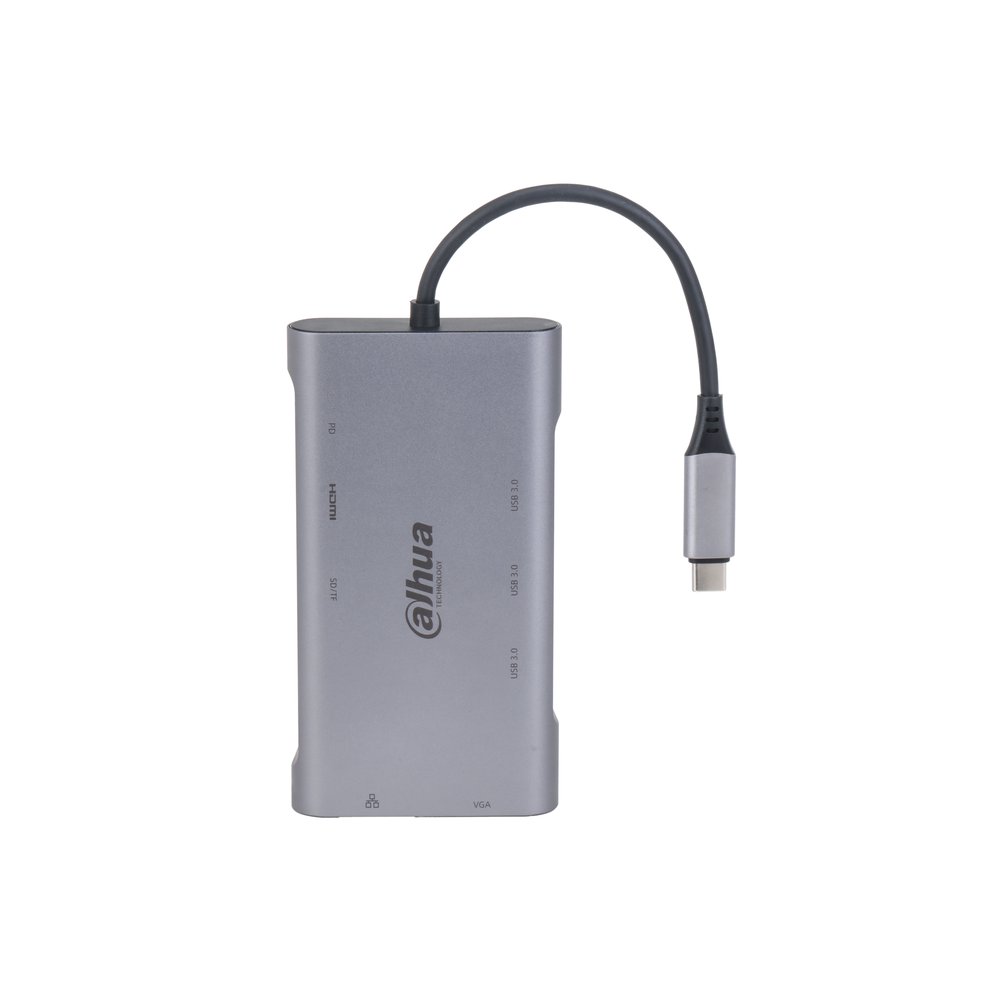

Docking station 1 USB 3.1 Typec-C plug, 3 USB 3.0 / 1 HDMI / 1 VGA / 1 RJ45 / 1 SD / 1 TF/ 1 PD out
73,20 € IVA inclusa
Docking station USB 3.1, 1 Type-C plug, 9 output: 3 USB 3.0, 1 HDMI (fino a 4K@30 Hz), 1 VGA, 1 RJ45 (10/100/1000 Mbps), 1 SD, 1 TF, 1 PD, case in lega di alluminio, 20 Vdc <100 W, compatibile anche con device Apple
Datasheet
Manuali
| Docking Station | |
| Number of Ports | 10 Input: USB 3.1 Type-C Plug Output: 3 * USB 3.0 1 * HDMI |
| Port Type | 1 * VGA 1 * RJ45 1 * SD 1 * TF 1 * PD |
| VGA | 1 × VGA, supports 1920 × 1080@30 Hz |
| RJ45 | 1 × RJ-45, supports 10/100/1000 Mbps |
| HDMI | Supports 4K@30 Hz 3 × USB 3.0-A, supports USB 3.0 GEN1 speed read and |
| USB 3.0 | write, and is compatible with USB 2.0. Supports charging devices with 100 W and data |
| Type-C Plug | transmission. |
| SD/TF Card | Fast speed transmission |
| Operating Voltage | 20 VDC |
| Current | 5 A |
| Power Consumption | 100 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Net Weight | 95 g (0.21 lb) |
| Gross Weight | 140 g (0.31 lb) 115.4 mm × 63.0 mm × 17.5 mm (4.54" × 2.48" × 0.69") |
| Product Dimensions | (L × W × H) 210.0 mm × 125.0 mm × 30.0 mm (8.27" × 4.92" × 1.18" |
| Packaging Dimensions | ) (L × W × H) |
| DC Charging | Yes |
| 4K Output to External | Yes |
| Compatibility | Game console, phone, laptop and tablet. |
| Casing Material | Aluminum Alloy |
| Ordering Information | |
| Type | Model Description |
| Adapter | DH-TC31 USB 3.0 Type-C to RJ45 Adapter |
| Adapter | DH-TC31H USB 3.1 Type-C to HDMI Adapter |
| Adapter | DH-TC32 USB 3.1 Type-C to HDMI + VGA Adapter |
| Docking | 5 in 1 USB 3.1 Type-C to HDMI + USB 3.0 + DH-TC35 |
| Station | PD Docking Station |
| Docking | 7 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC37 |
| Station | SD/TF + PD Docking Station |
| Docking | 8 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC38 |
| Station | RJ45 + SD/TF + PD Docking Station |
| Docking | 9 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC39 |
| Station | RJ45 + VGA + SD/TF +PD Docking Station The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Dimensions (Mm[Inch]) | |
| 272.1 [10.71] | 17.5 [0.69] 59.5 [2.34] |
| 115.4 [4.54] | 63.0 [2.48] 17.5 [0.69] |
