Docking station USB 3.1, 1 Type-C plug, 1 output HDMI (fino a 4K @60 Hz), case in lega di alluminio, 5.25 Vdc <1.68 W, compatibile anche con device Apple
Datasheet
Manuali
| Docking Station | |
| Number of Ports | 2 Input: USB 3.1 Type-C Plug |
| Port Type | Output: 1 * HDMI |
| HDMI | Supports 4K@60 Hz |
| Operating Voltage | 5.25 VDC |
| Current | 320 mA |
| Power Consumption | 1.68 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Net Weight | 25 g (0.055 lb) |
| Gross Weight | 55 g (0.12 lb) 53.0 mm × 24.5 mm × 12.5 mm |
| Product Dimensions | (2.09" × 0.96" × 0.49") (L × W × H) 175.0 mm × 96.0 mm × 25.5 mm |
| Packaging Dimensions | (6.89" × 3.78" × 1.00" ) (L × W × H) |
| Compatibility | Game console, phone, laptop and tablet. |
| Casing Material | Aluminum Alloy |
| Ordering Information | |
| Type | Model Description |
| Adapter | DH-TC31 USB 3.0 Type-C to RJ45 Adapter |

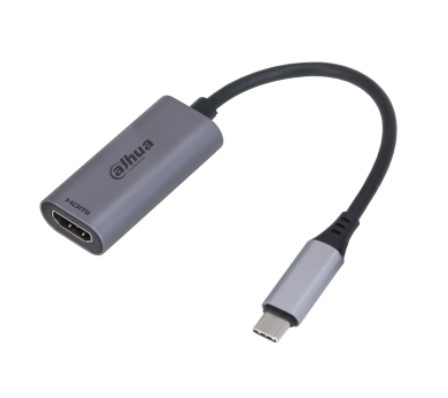

| Adapter | DH-TC31H USB 3.1 Type-C to HDMI Adapter |
| Adapter | DH-TC32 USB 3.1 Type-C to HDMI + VGA Adapter |
| Docking | 5 in 1 USB 3.1 Type-C to HDMI + USB 3.0 + DH-TC35 |
| Station | PD Docking Station |
| Docking | 7 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC37 |
| Station | SD/TF + PD Docking Station |
| Docking | 8 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC38 |
| Station | RJ45 + SD/TF + PD Docking Station |
| Docking | 9 in 1 USB 3.1 Type-C to USB 3.0 + HDMI + DH-TC39 |
| Station | RJ45 + VGA + SD/TF +PD Docking Station The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Dimensions (Mm[Inch]) | |
| 6.2 [0.24] | 6.2 [0.24] 25.0 [0.98] 52.3 [2.06] |
| 150.0 [5.90] | 209.8 [8.25] 4.2 [0.17] |
| 53.0 [2.09] | 12.5 [0.49] |
