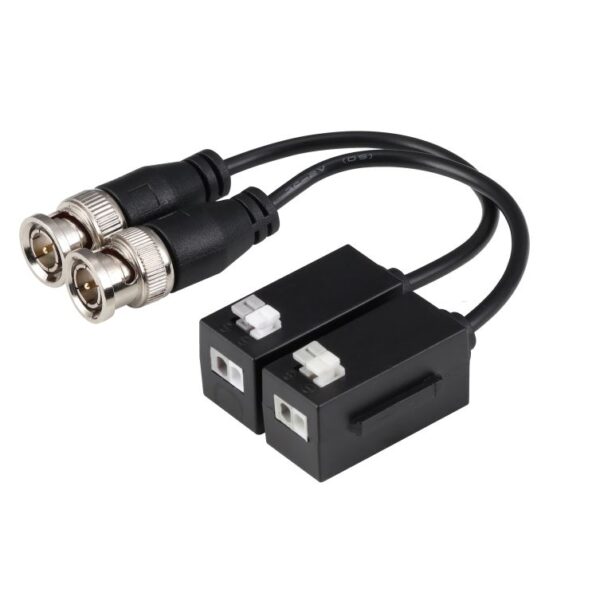

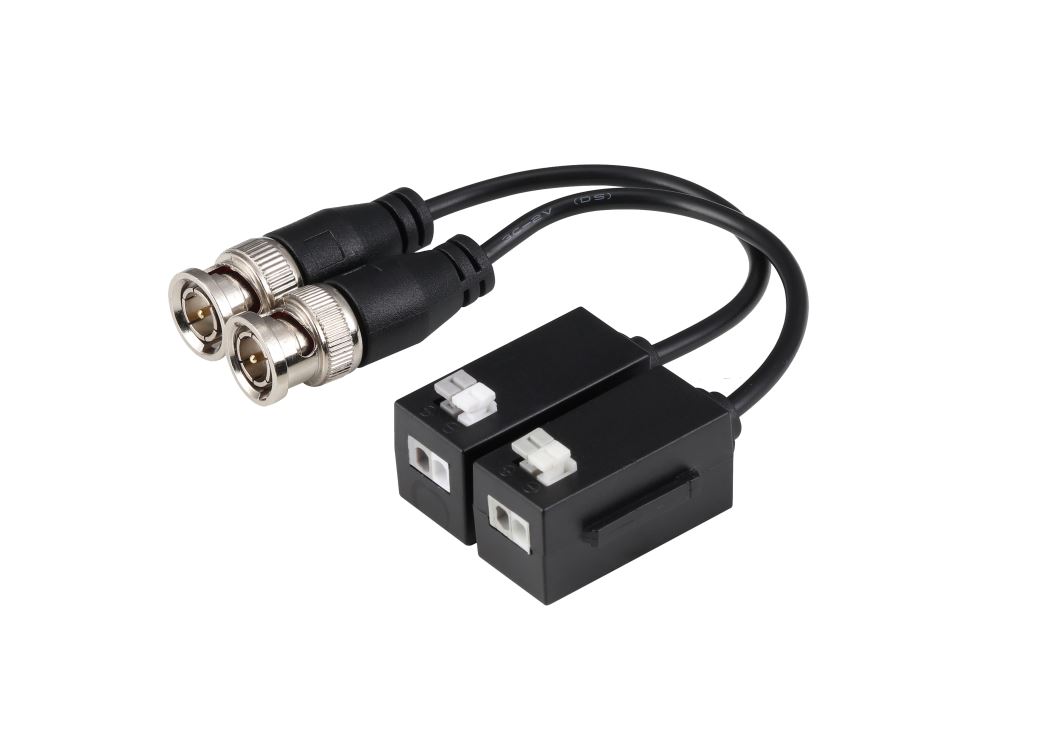

Coppia balun video passivi HDCVI 4K 1 canale su UTP per segnale video HDCVI/AHD/TVI/CVBS, portata 400 m 720P / 250 m 1080P / 200 m 4K
| Function | |
| Transmission Channel | 1-ch HDCVI/TVI/AHD/CVBS HDCVI: 720p: max 400 m (1312.34 ft) 1080p: max 250 m (820.21 ft) 4 MP/5 MP/4K: max 200 m (656.17 ft) TVI: 720p: max 400 m (1312.34 ft) |
| Transmission Distance | 1080p: max 250 m (820.21 ft) 4 MP/5 MP/4K: max 200 m (656.17 ft) AHD: 720p: max 400 m (1312.34 ft) 1080p: max 250 m (820.21 ft) 4 MP/5 MP/4K: max 200 m (656.17 ft) |
| Resolution | 720p/1080p/4 MP/5 MP/4K |
| Video Format | HDCVI/TVI/AHD/CVBS |
| Anti-interference | > 60 dB |
| Transmission Signal | 1-ch analog HD video |
| Transmission Media | UTP CAT5E/6 Coaxial cable: 75 Ω |
| Impedance | Twisted pair: 100 Ω |
| Packaging Dimensions | W × H) |
| Packaging Method | 10 pieces in 1 box, and 30 boxes in 1 outer carton |
| Net Weight | 40 g/pair (0.09 lb) |
| Gross Weight | 0.56 kg/box (1.23 lb) |
| Environment | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5–95% (RH), non–condensing |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 0–95% (RH), non–condensing |
| Ordering Information | |
| Type | Model Description 1 Channel Passive HDCVI |
| Video Balun | DH-PFM800-4K balun (10pcs/box) |
