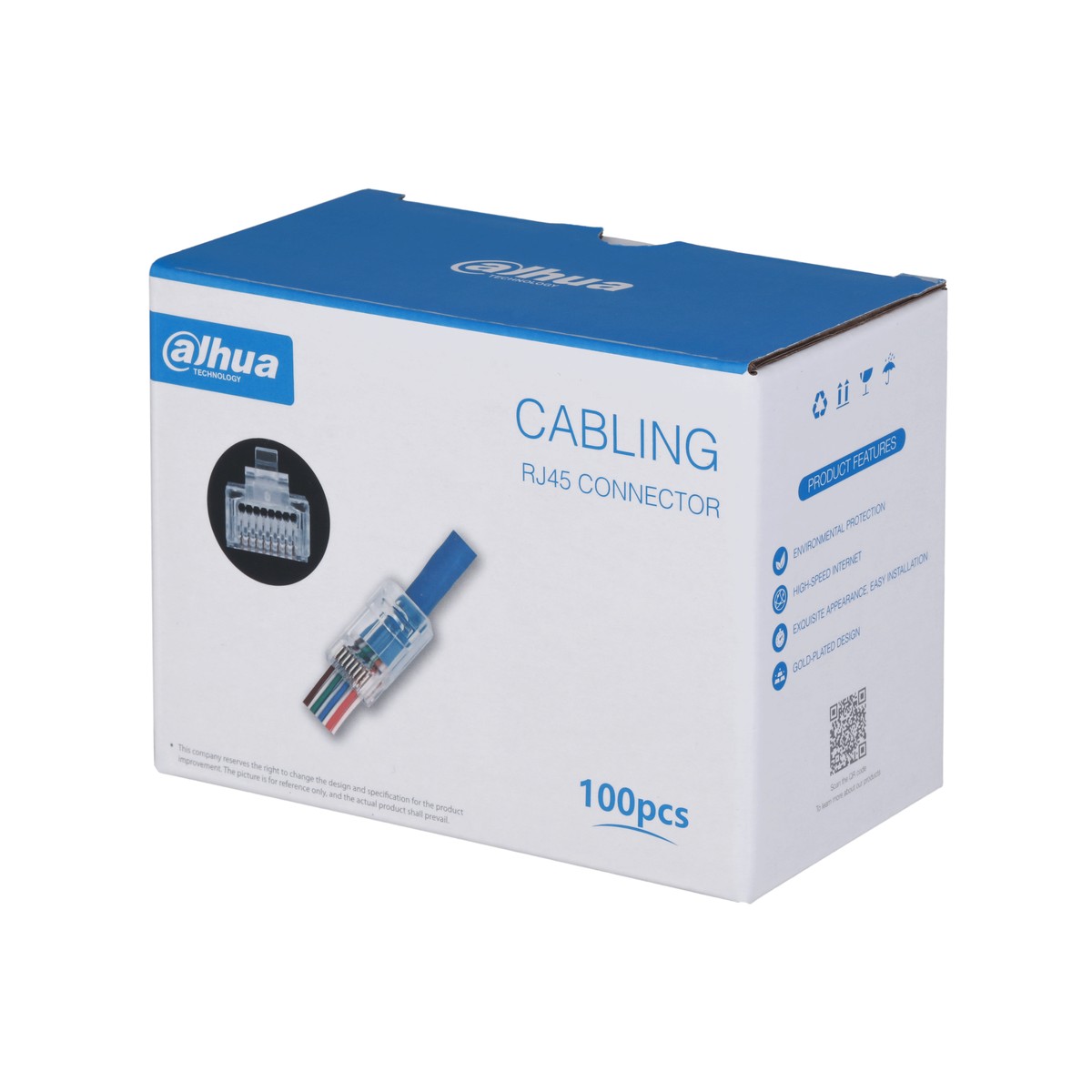

Connettori RJ45 CAT5E non schermati (UTP) di tipo passante, con foro per il passaggio dei conduttori, lamina di contatto a tridente in ottone con doratura 3U”, corpo in PC classe di infiammabilità UL94V-2, per conduttori 23~24 AWG con diametro isolante 0.89~1.00 mm e guaina esterna fino a 5.4 mm, resistenza di contatto ≤20 mΩ, durata 750 cicli, tensione di esercizio 150 Vac, corrente 1.5 A, temperatura di esercizio -25~+55 °C, confezione da 100 pezzi
| Material | |
| Material | PC + brass |
| Gold Plating Thickness | 3U" |
| Flammability Rating | UL94V-2 |
| Electrical | |
| Operating Voltage | 150 VAC RMS |
| Operating Current | 1.5 AMP |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥1000 MΩ@500 VDC |
| Withstands Voltage between | 1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute |
| Mechanical | |
| Retention Strength | 50 N for 60 s ± 5 s |
| Lifespan | 750 times |
| Insertion Force | ≤ 30 N |
| Environmental | |
| Operating Temperature | –25°C to +55°C (–13°F to +131°F) |
| Storage Temperature | –10°C to +40°C (+14 °F to +104°F) |
| Storage Humidity | ≤ 80% |
| Storage Time | 12 months |
| Structural | |
| Single Strand Cable Diameter | 23 AWG–24 AWG |
| Single Strand Insulated Cable | 0.89 mm–1.00 mm (0.035"–0.039") |
| Diameter | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Outer Sheath Diameter | ≤ 5.4 mm (0.21") |
| Packaging Dimensions | 120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54") |
| Transport Package | 500 mm × 350 mm × 270 mm (19.69" × 13.78" × |
| Dimensions | 10.63") |
| Packaging Method | 100 pcs in 1 carton, and 50 cartons in 1 package |
| Net Weight | 0.17 kg (0.37 lb) |
| Gross Weight | 0.21 kg (0.46 lb) |
| Ordering Information | |
| Type | Model Description |
| Cabling | UTP CAT5E 3U" Pass Through RJ45 |
| Accessory | DH-PFM976-530-PT Connector |
