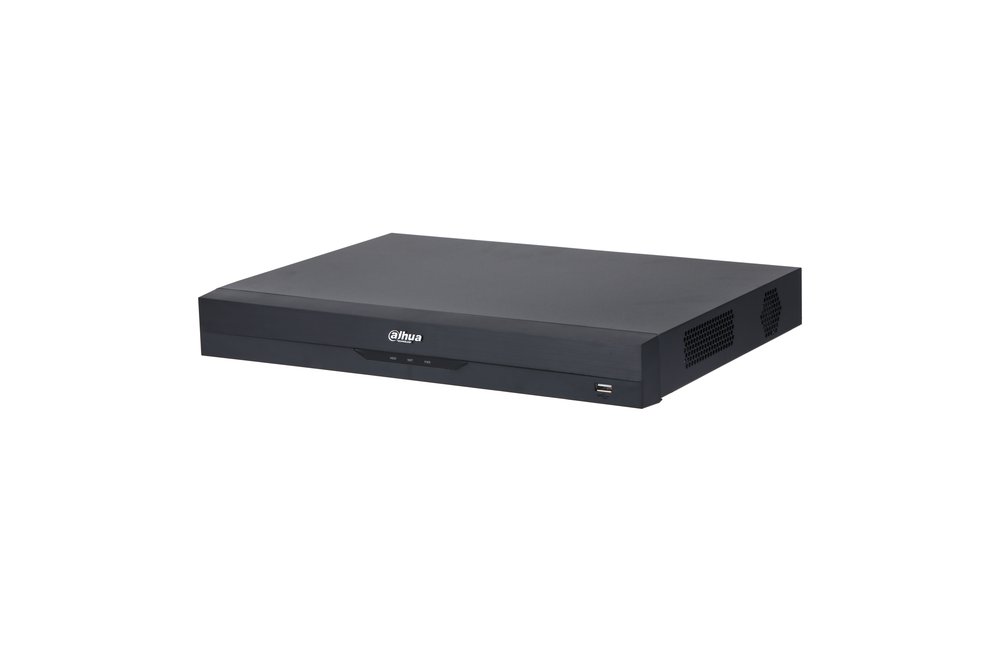

XVR AI WizSense 16 canali HDCVI/CVBS/TVI/AHD o 32 canali IP a 8 MP (analog 12.5fps encoding), max. banda 128 Mbps, AI coding, H.265+, 2 uscite video (1 VGA + 1 HDMI), 4/16 ingressi RCA/BNC e 1 uscita RCA audio bidirezionale, predisposto per montaggio di 2 dischi SATA (fino a 16 TB cad.), 1 porta RS485, 1 porta RJ-45 10/100/1000 Mbps, 2 porte USB (2.0 e 3.0), 8 canali analog protezione perimetrale, 4 canali analog face detection/recognition, 16 canali SMD Plus, 1U, alimentazione 12 Vdc <15 W senza Hard Disk
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Acupick | |
| AcuPick AI by Recorder | 8 channels |
| Perimeter Protection | |
| by Recorder (Number of | 8 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Performance of AI by | 4 channels (up to 12 face images/s each channel) |
| Privacy Protection | |
| Performance of AI by | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| Performance of AI by | 4 channels |
| Smd | |
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 32 channels |
| Ai Video Quality Analytics | |
| AI Video Quality Analytics | cast, defocus, overexposure, contrast levels, black and |
| by Recorder | white. |
| Scene Changing | |
| Scene Changing by | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block | 1 channel |
| Eptz | |
| EPTZ by Recorder | 1 channel |
| Audio And Video | |
| Analog Camera Input | detect |
| Camera Input | 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: |
| IP Camera Input | 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. Encode Enhancement disabled: Main stream: the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/ 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled: Main stream: |
| Encoding Capacity | the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps– 25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. When IP extension mode not enabled: 1/4/8/9/16 |
| Multi-screen Display | When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | external alarm; network alarm; PIR alarm Error (no disk; disk error; low space; low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline Face detection; face recognition; perimeter protection; |
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); IPC external alarm |
| Alarm Linkage | output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA Coaxial two-way talk: 16-channel BNC |
| Two-way Talk | Local and network user two-way talk: Shares the same audio input with the first channel 2 SATA ports. Each disk can contain up to 16 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | < 15 W (without HDD) |
| Net Weight | 1.75 kg (3.86 lb) |
| Gross Weight | 2.90 kg (6.39 lb) |
| Product Dimensions | 2.09") (W × D × H) 427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × |
| Packaging Dimensions | 14.02") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description 16CH Penta-brid 4K |
| DIGITAL VIDEO | Value/5MP 1U 2HDDs DH-XVR5216AN-4KL-I3/T |
| RECORDER | WizSense Digital Video Recorder 802.11AX 300M WIRELESS DH-NC300 ADAPTER |
| Accessories (Optional) | 802.11AC 650M WIRELESS DH-NC650 ADAPTER DHI-ARB1606 Alarm Box |
| Accessories | |
| DH-NC300 | DH-NC650 DHI-ARB1606 |
| 802.11AX 300M | 802.11AC 650M Alarm Box |
| WIRELESS ADAPTER | WIRELESS ADAPTER |
