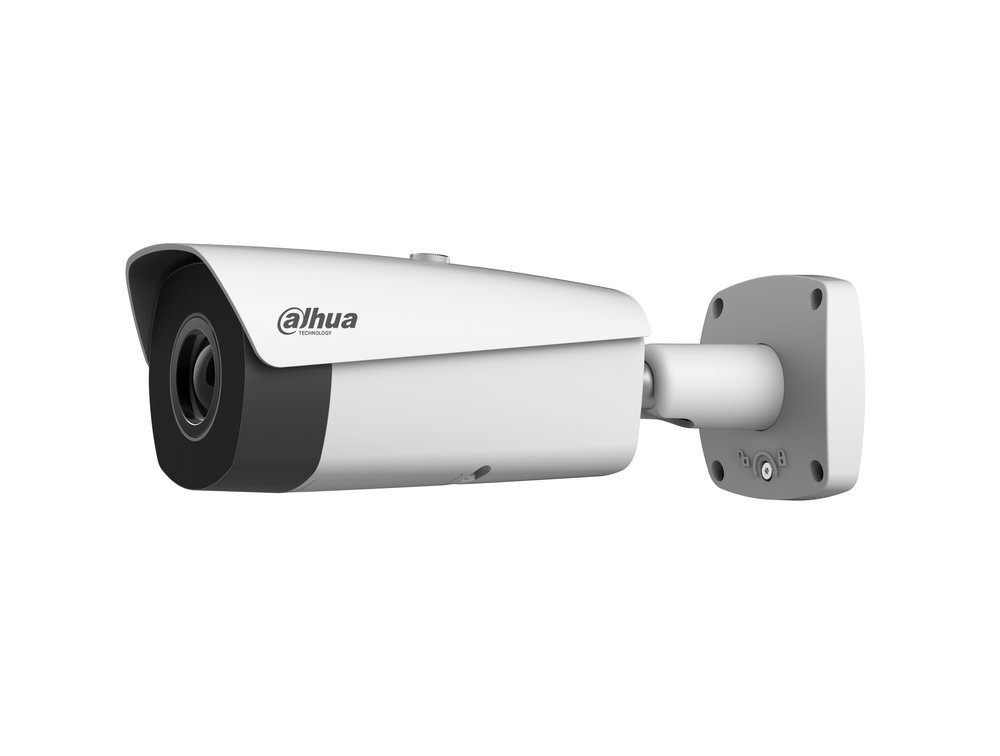

Bullet termica IP AI 640×512 9 mm temp.
9.690,46 € IVA inclusa
Telecamera bullet termica IP AI da interno/esterno IP67, risoluzione termica 640×512 a 25fps, sensibilità 35 mK, ottica termica 9 mm, spettro visivo 8~14 µm, 1 porta LAN 10/100 Mbps, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 RS485, IVS (protezione perimetrale), rilevamento calore e temperature (12 regole punto/linea/area, range -20°~+150°/0~550°), traccia punti caldi/freddi, classificazione persone/veicoli, micro SD card (512 GB), alimentazione 12 Vdc/ePoE <14 W
| Thermal Camera | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Size | 17 μm |
| Thermal Sensitivity (NETD) | ≤ 40 mK@f/1.0 |
| Spectral Range | 8 μm–14 μm |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/ |
| Color Palettes | painting/pomegranate/emerald /spring/summer/ autumn/winter) |
| Thermal Lens | |
| Lens Type | Fixed/F1.0 |
| Focus Control | Athermalized, Focus-free |
| Focal Length | 7.5 mm; 13 mm; 25 mm; 35 mm 7.5 mm H: 91.2°; V: 70.3° : 13 mm: H: 48.9°; V: 38.8° |
| Angle of View | 25 mm:H: 24.6°; V: 19.8° 35 mm:H: 17.6°; V: 14.1° |
| Temperature Measurement | |
| Temperature Range | High Temperature Mode: 0°C to +550°C (+34°F to +1022°F) Max (±2°C, ±2%) |
| Focus Control | Operating Temperature: –20°C to +60°C (–4°F to +140°F) Spot: 12 Line: 12 |
| Focus Control | Area: 12 Support 12 rules simultaneously |
| Video | |
| Compression | H.265; H.264; MJPEG |
| Frame Rate | Sub Stream: Thermal: 640 × 512; 400 × 300@25/30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 640–8192 Kbps |
| Motion Detection | Off/On (4 zone, Rectangle) |
| Region of Interest | Off/On (4 zone) |
| Digital Zoom | 4 × (19 levels) |
| Flip | 180° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 area, Rectangle) |
| Audio | |
| Compression | G.711A; G.711Mu; AAC; PCM |
| Intelligence | |
| IVS | Tripwire, Intrusion Heat detection & alarm, Cold/Hot spot trace, |
| Advanced Intelligent Functions | Human/Vehicle classification |
| Network | |
| Ethernet | RJ-45 IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; |
| Protocol | |
| Interoperability | ONVIF Profile S & G, API |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/20 Users Micro SD (256GB) Memory status display (Normal / Error / Active / |
| Edge Storage | Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | IE8; <Chrome42; <Firefox42 > |
| Management Software | SmartPSS; DSS |
| Smart Phone | Android; iOS |
| Certifications | |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
| Interface | |
| Video Interface | 1 Port (CVBS/BNC) |
| Audio Interface | 1/1 In/Out |
| RS485 | Yes |
| Electrical | |
| Power Supply | 12 VDC /PoE ePoE / |
| Power Consumption | Max. 13 W |
| Environmental | |
| Operating Condition | * Start up should be done at above –40°C (–40°F) |
| Storage Conditions | -–40°C to +70°C (-40°F to +158°F)/Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82") |
| Net Weight | 1.5 Kg (3.31 lb) |
| Gross Weight | 1.9 Kg (4.19 lb) |
| Dri Distance | |
| Focal Length | Distance Distance Distance ① ② ③ Vehicle: 676 m Vehicle: 169 m Vehicle: 85 m (2,217.85 ft); (554.46 ft); (278.87 ft); |
| 7.5 mm | Human: 221 m Human: 55 m Human: 28 m (725.07 ft) (180.45 ft) (91.86 ft) Vehicle: 1,173 m Vehicle: 293 m Vehicle: 147 m (3,848.43 ft); (961.29 ft); (482.28 ft); |
| 13 mm | Human: 382 m Human: 96 m Human: 48 m (1,253.28 ft) (314.96 ft) (157.48 ft) Vehicle: 2,255 m Vehicle: 564 m Vehicle: 282 m (7,398.29 ft); (1,850.39 ft); (925.20 ft); |
| 25 mm | Human: 735 m Human: 184 m Human: 92 m (2,411.42 ft)1 (603.67 ft) (301.84 ft) Vehicle: 3,157 m Vehicle: 789 m Vehicle: 395 m (10,357.61 ft); (2,588.58 ft); (1,295.93 ft); |
| 35 mm | Human: 1,029 m Human: 257 m Human: 129 m (3,375.98 ft) (843.18 ft) (423.23 ft) |
| of Perimeter Protection Distance (IVS Distance) above. | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Ordering Information | |
| Type | Part Number Description DHI-TPC-BF5601-TB7 Thermal: 640 × 512 7.5 mm lens ; DHI-TPC-BF5601-TB13 Thermal: 640 × 512 13mm lens ; |
| BF5601-T | DHI-TPC-BF5601-TB25 Thermal: 640 × 512 25mm lens ; DHI-TPC-BF5601-TB35 Thermal: 640 × 512 35mm lens ; PFA121 Junction box |
| Accessories | |
| (Optianal) | PFM320D Power Adapter |
| Accessories | |
| ： | PFA152-E PFM320D |
| PFA121 | Power Adapter Pole Mount |
