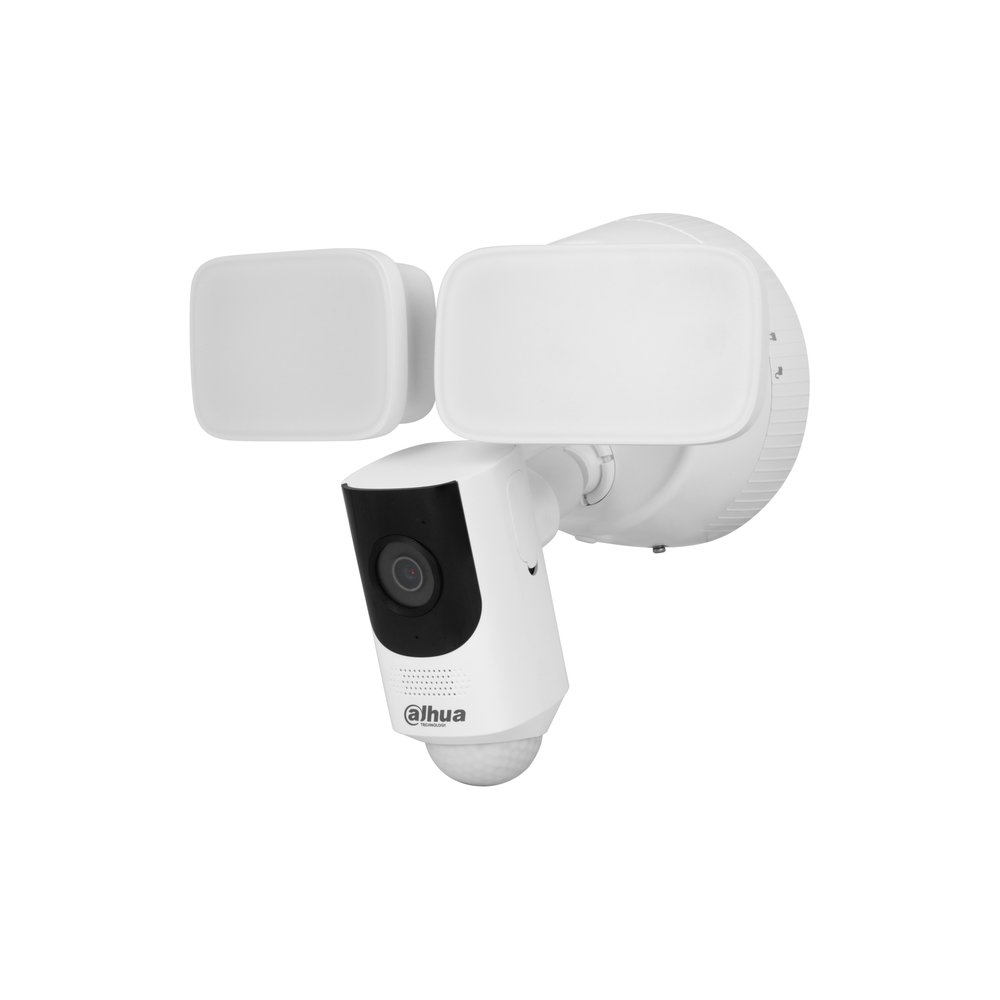

Telecamera floodlight Wi-Fi 4 MP 2.8 mm IR/LED audio

Name: Telecamera floodlight Wi-Fi 4 MP 2.8 mm IR/LED audio
Brand: Dahua
SKU: IPC-WL46A
Price: 199.47 EUR
Availability: BackOrder

Dahua

COD: IPC-WL46A Categorie: Telecamere IP, Videosorveglianza Tag: 4MP

199,47 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 398,94 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera floodlight Wi-Fi da interno/esterno IP65, sensore CMOS progressivo 1/3", risoluzione 4 MP a 25fps, H.265+, ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.005 lux, portata IR/fari fino a 10/30 m, IEEE802.11a/b/g/n/ac 2.4/5 GHz, microfono, speaker e sirena (110 dB) integrati, 3D, micro SD card (256 GB), alimentazione 100~240 Vac <48.3 W

Datasheet

Scheda Tecnica

Manuali

Camera
Image Sensor	1/3" CMOS
Max. Resolution	2560 (H) × 1440 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive Auto/Manual 1/3 s–1/100,000 s
Electronic Shutter Speed	0.005 lux@F1.6 (Color,30 IRE)
Min. Illumination	0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB 10 m (32.81 ft) (IR);
Illumination Distance	30 m (98.43 ft) (Floodlight)
Illuminator On/Off Control	Auto; Manual 1 (IR LED); 2 (Floodlight, color can be switched between
Illuminator Number	warm and cool)
Floodlight Brightness	1500-2400 lm
Floodlight Color	3000K±200K (warm);
Temperature	6000K±300K (cool) Motion Activation Manual
Floodlight Modes	Schedule PIR Activation Camera: Pan: –85° to +85° Tilt: –90° to +45°
Pan/Tilt/Rotation Range	Rotation: 0° to +360° Floodlight: Tilt: –90° to +90° Rotation: –145° to +145° 10 m (the height of the device is 3 m, placed at an angle
PIR Sensor Distance	of 30° from the horizontal)
PIR Detection Range	270°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 98°; V: 55°; D: 115°
Iris Control	Fixed
Close Focus Distance	1.0 m (3.28 ft) Detect Observe Recognize Identify
DORI Distance	61.2 m 24.5 m 12.2 m 6.1 m (200.79 ft) (80.38 ft) (40.03 ft) (20.01 ft)
Video
Video Compression	H.264B; H.264; H.264H; H.265; MJPEG
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Sub stream 2: 640 × 480@(1 fps–25 fps) 640 × 480@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	3 streams 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 ×
Resolution	576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR H264: 32 kbps–8192 kbps;
Video Bit Rate	H265: 32 kbps–8192 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR Auto; natural; street lamp; outdoor; manual; regional
White Balance	custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/180°
Mirror	Yes
Privacy Masking	Yes
Audio
Built-in MIC	Yes
Built-in Speaker	Yes
Audio Compression	G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event	exception; motion detection; video tampering; sence changing; SMD (human, animal and vehicle); audio detection; intensity change
Network
Wi-Fi	IEEE802.11a/b/g/n/ac 2.4–2.4835GHz & 5.18–5.85GHz
SDK and API	Yes Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and
Cyber Security	importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	Wireless Qos; Wi-Fi setting; hotspot scanning; 802.1x; UPnP status; Bonjour; UPnP; device discovery
Interoperability	ONVIF; CGI; P2P; RTMP
User/Host	6 (Total bandwidth: 36 M)
Storage
Browser	Chrome; Firefox
Management Software	DMSS
Mobile Client	iOS; Android
Power
Power Supply	100–240 VAC Basic: 5.2 W (100–240 VAC )
Power Consumption	Max. (Illuminator+IPC): 48.3 W (100–240 VAC )
Environment
Operating Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity	≤ 95%
Storage Temperature	–20 °C to +50 °C (–4 °F to +122 °F)
Protection	IP65
Structure
Casing	Metal + Plastic 270.7 mm × 217.2 mm × 195.6 mm (10.66" × 8.55" ×
Product Dimensions	7.70") (L × W × H)
Net Weight	1.40 kg (3.08 lb)
Gross Weight	1.88 kg (4.14 lb)
Ordering Information
Type	Model Description 4MP Fixed-focal Floodlight DH-IPC-WL46AP-0280B Network Camera
4MP Camera	4MP Fixed-focal Floodlight DH-IPC-WL46AN-0280B Network Camera
Accessories
(Optional)	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
