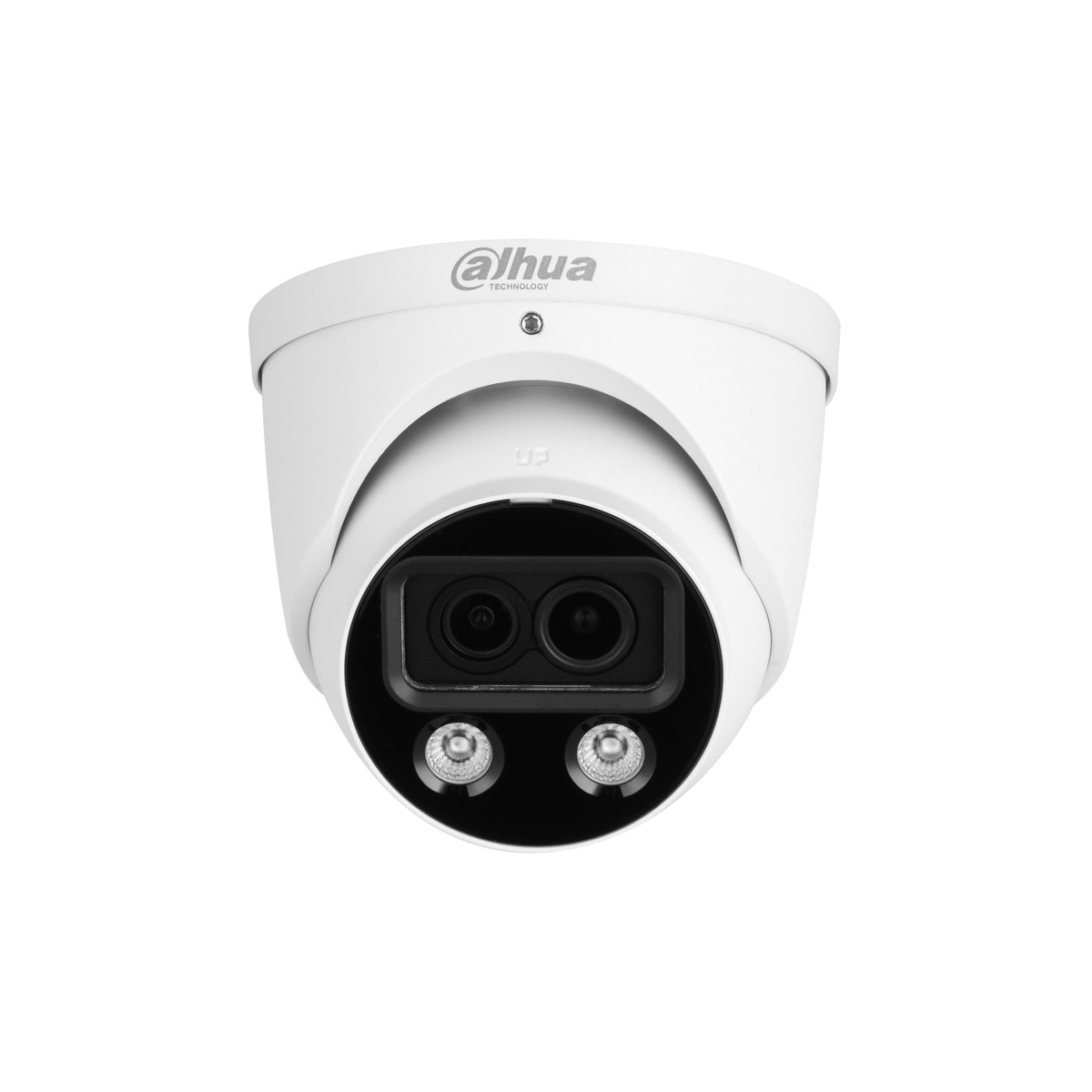

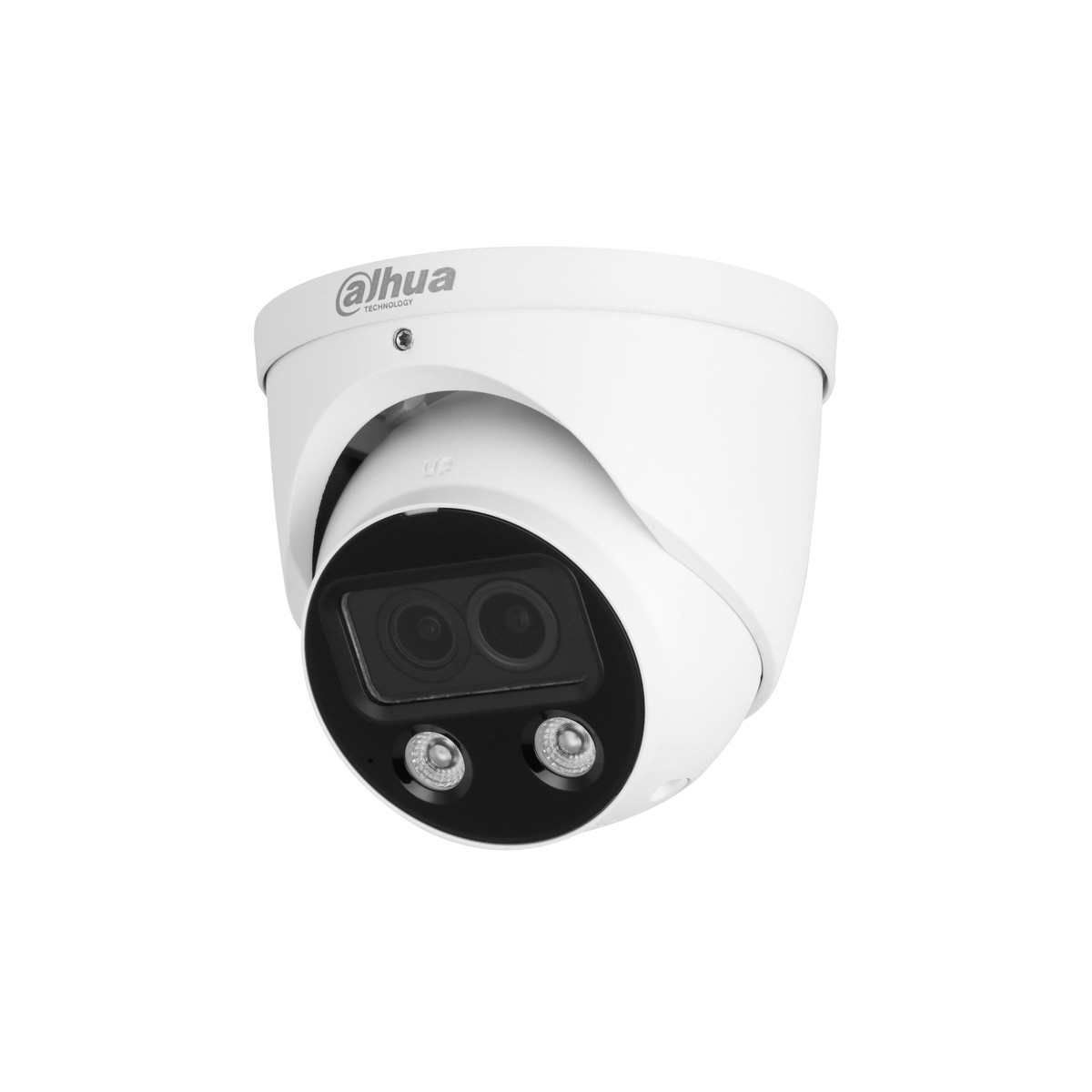

Telecamera eyeball IP AI WizMind Full-color a doppia ottica da interno/esterno IP67, doppio sensore CMOS 1/1.8″ con imaging multispettrale per immagini a colori in scarsa luminosità, risoluzione 4 MP (2688×1520) a 25/30fps, AI coding, H.265+, ottica fissa 2.8 mm, 3.6 mm o 6 mm F1.0, luminosità 0.0002 lux F1.0, portata IR/luce calda fino a 50 m, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio, microfono e speaker integrati, IVS con classificazione persone/veicoli, face detection, conteggio persone, heat map, SMD 3.0, micro SD card (256 GB), alimentazione 12 Vdc/PoE
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/1.8" + 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0002 lux @F1.0 |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 (IR light); 2 (warm light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.0 2.8 mm: Horizontal: 97°; Vertical: 48°; Diagonal: 115° |
| Field of View | 3.6 mm: Horizontal: 75°; Vertical: 39°; Diagonal: 87° 6 mm: Horizontal: 47°; Vertical: 25°; Diagonal: 56° |
| Iris Control | Fixed 2.8 mm: 4 m (13.1 ft) |
| Close Focus Distance | 3.6 mm: 5 m (16.4 ft) 6 mm: 6 m (19.7 ft) |
| Dori | |
| Distance | (380.91 ft) (152.56 ft) (76.12 ft) (38.06 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| Professional, Intelligent | |
| IVS (Perimeter Protection) | of vehicle and human); loitering detection, people gathering, and parking detection |
| SMD 3.0 | Less false alarm, longer detection distance Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 face attributes (gender, age, glasses, expressions, mask, and beard) and |
| Face Detection | 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules |
| People Counting | configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. Work together with Smart NVR to perform refine |
| Intelligent Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@ (1–30 fps) |
| Video Frame Rate | Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams 4M (2688 × 1520); 1080p (1920 × 1080); 1.3M (1280 |
| Resolution | × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–8192 kbps |
| Video Bit Rate | H.265: 19 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR Auto; natural; street lamp; outdoor; manual; |
| White Balance | regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) 0°/90°/180°/270° (Support 90°/270° with 1080p |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | scene changing; audio detection; voltage detection; face detection; people counting in area; stay detection; people counting; people number error detection; security exception; defocus detection; people number alarm; queue time alarm |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation |
| Cyber Security | and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; |
| Network Protocol | FTP; DHCP; DNS; NTP; Multicast; DDNS ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; |
| Interoperability | Genetec; P2P |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3-5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af); ePoE Basic: 3.9 W (12 VDC); 4.6 W (PoE) |
| Power Consumption | Max. (H.265+IR and Warm light on): 9.3 W (12 VDC); 10.5 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –40 °C to +60 °C (-40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | Φ122 mm × 110.9 mm (Φ4.80" × 4.37") |
| Net Weight | 0.75 kg (1.65 lb) |
| Gross Weight | 0.94 kg (2.07 lb) |
| Ordering Information | |
| Type | Part Number Description DH-IPC- 4 MP Dual Lens Fixed-focal Eyeball WizMind HDW5449HP-ASE- Full-color Network Camera D2-0280B DH-IPC- 4 MP Dual Lens Fixed-focal Eyeball WizMind HDW5449HP-ASE- Full-color Network Camera D2-0360B DH-IPC- 4 MP Dual Lens Fixed-focal Eyeball WizMind HDW5449HP-ASE- |
| 4MP Camera | Full-color Network Camera D2-0600B IPC-HDW5449HP- 4 MP Dual Lens Fixed-focal Eyeball WizMind ASE-D2-0280B Full-color Network Camera IPC-HDW5449HP- 4 MP Dual Lens Fixed-focal Eyeball WizMind ASE-D2-0360B Full-color Network Camera IPC-HDW5449HP- 4 MP Dual Lens Fixed-focal Eyeball WizMind ASE-D2-0600B Full-color Network Camera PFA137 Junction Box PFB203W Wall Mount Bracket PFA152-E Pole Mount Bracket PFB220C Celling Mount Bracket |
| Accessories | |
| (Optional) | PFA106 Mount Adapter PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA137 | PFB203W PFA152-E |
| Junction Box | Wall Mount Bracket Pole Mount Bracket PFB220C PFA106 PFM321D |
| Celing Mount Bracket | Mount Adapter 12 VDC 1A Power Adapter |
| PFM900-E | TF-P100 |
| Integrated Mount | MicroSD Tester Memory Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
