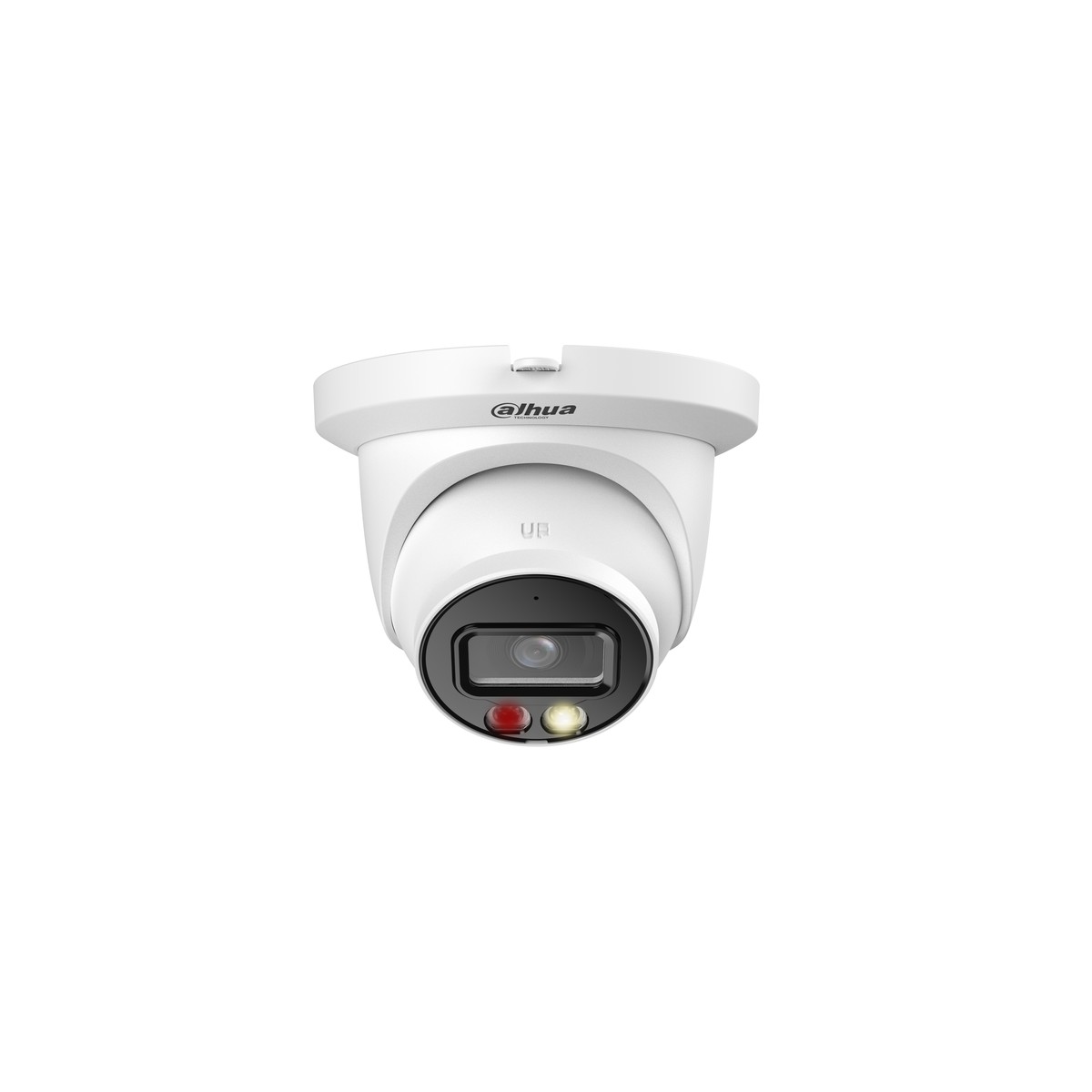

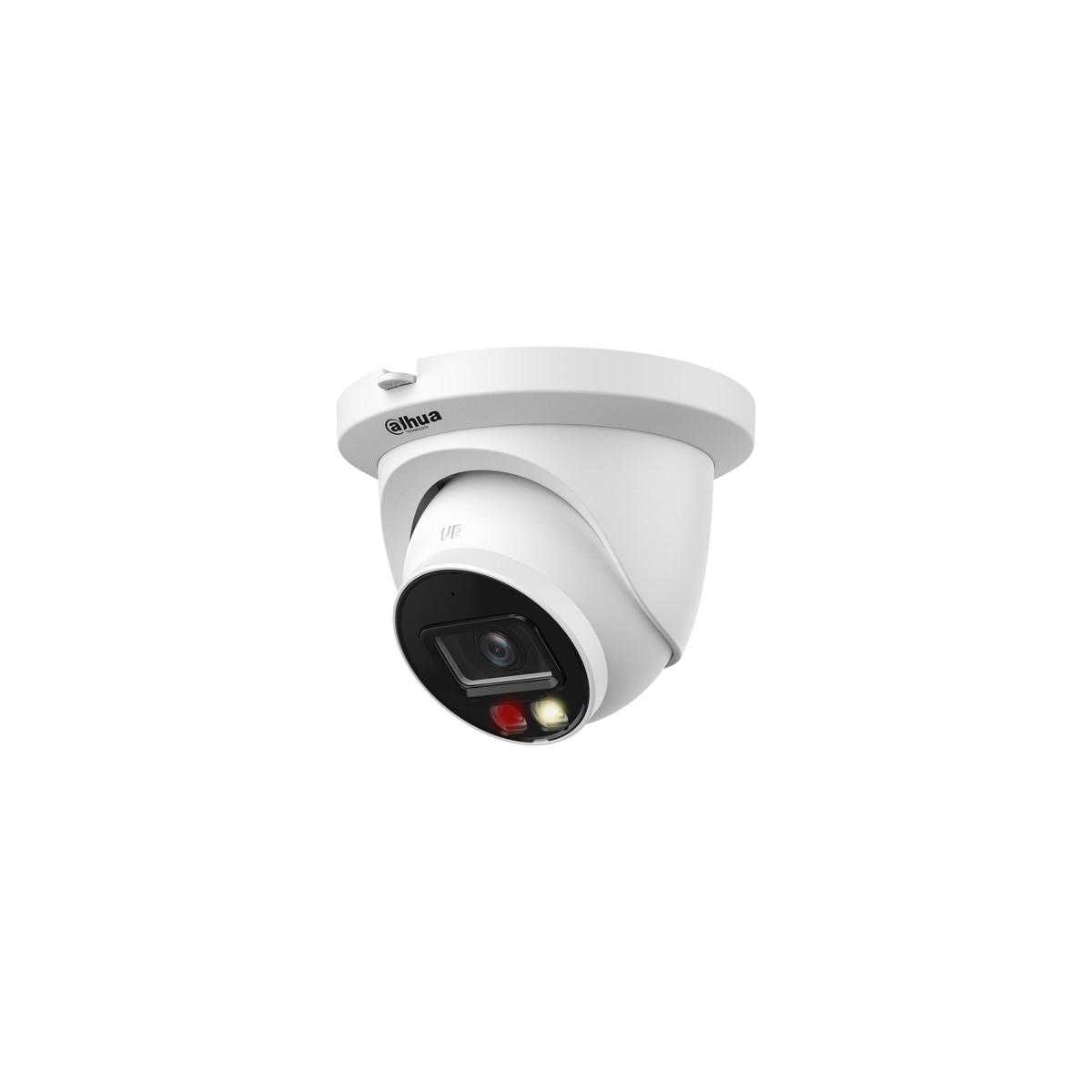

Telecamera eyeball IP AI WizSense Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.9″, risoluzione 4 MP (2560×1440) a 25/30fps, AI coding, H.265+, ottica fissa 2.8 mm F1.6 (H 100°), luminosità 0.006 lux F1.6 (0 lux con illuminatore acceso), portata IR e luce calda fino a 30 m, microfono integrato, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, ROI, WDR, 3D NR, HLC, BLC, micro SD card (512 GB), alimentazione 12 Vdc/PoE
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.006 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 30 m (98.43 ft) (IR LED); |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) Pan: 0° to 360° |
| Angle Adjustment | Tilt: 0° to 78° Rotation: 0° to 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 100°; V: 56°; D: 117° |
| Field of View | 3.6 mm: H: 83°; V: 44°; D: 98° |
| Iris Control | Fixed 2.8 mm: 1.0 m (3.28 ft) |
| Close Focus Distance | 3.6 mm: 1.5 m (4.92 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 (Super AI Coding) |
| AI Coding | *Includes smart codec technology, Smart H.265+ and Smart H.264+ Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Video Frame Rate | Third stream: 352 × 288@1 fps/352 × 240@1 fps *The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 3 streams 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × |
| Resolution | 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR H.264: 32 kbps–6144 kbps; |
| Video Bit Rate | H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes 0°/90°/180°/270° (supports 90°/270° with 2560 × 1440 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; |
| Network Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | IE; Chrome; Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning;SSL/TLS1.2;AES 256 |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 1.7 W (12 VDC); 2.4 W (PoE); Max.: 4.2 W (12 VDC); 5.4 W (PoE) (H.265 + max |
| Power Consumption | resolution + max stream + WDR + warm light intensity + IVS) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Decorative ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
| Ordering Information | |
| Type | Model Description 4MP Smart Dual |
| IP CAMERA | DH-IPC-HDW2449TM-S-IL Light Fixed-focal Eyeball WizSense Network Camera DH-PFA109 Mount Adapter DH-PFB220C Ceiling Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFB2203W Wall Mount Bracket DH-PFA152-E Pole Mount Bracket G3416GW G3/4" Water Joint |
| Accessories (Optional) | DH-PFA130-E Water-proof Junction Box DH-PFM320-010EN Power Adapter DH-PFM325D-1210EN DC12V 1A Power Adapter DH-PFM325D-1215EN DC12V 1.5A Power Adapter DH-PFM320-020EN Power Adapter DH-PFM320D-EN DC12V2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card |
| Accessories | |
| DH-PFA109 | DH-PFB220C DH-PFA151 |
| Mount Adapter | Ceiling Mount Bracket Corner Mount Bracket |
| DH-PFB305W | DH-PFA150 DH-PFB2203W |
| Wall Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
| DH-PFA152-E | G3416GW DH-PFA130-E |
| Pole Mount Bracket | G3/4" Water Joint Water-proof Junction Box |
| Optional: | DH-PFM325D-1215EN |
| DH-PFM320-010EN | DH-PFM325D-1210EN DC12V 1.5A Power |
| Power Adapter | DC12V 1A Power Adapter Adapter |
| DH-PFM320-020EN | DH-PFM320D-EN PFM900-E |
| Power Adapter | DC12V2A power adapter Integrated Mount Tester |
