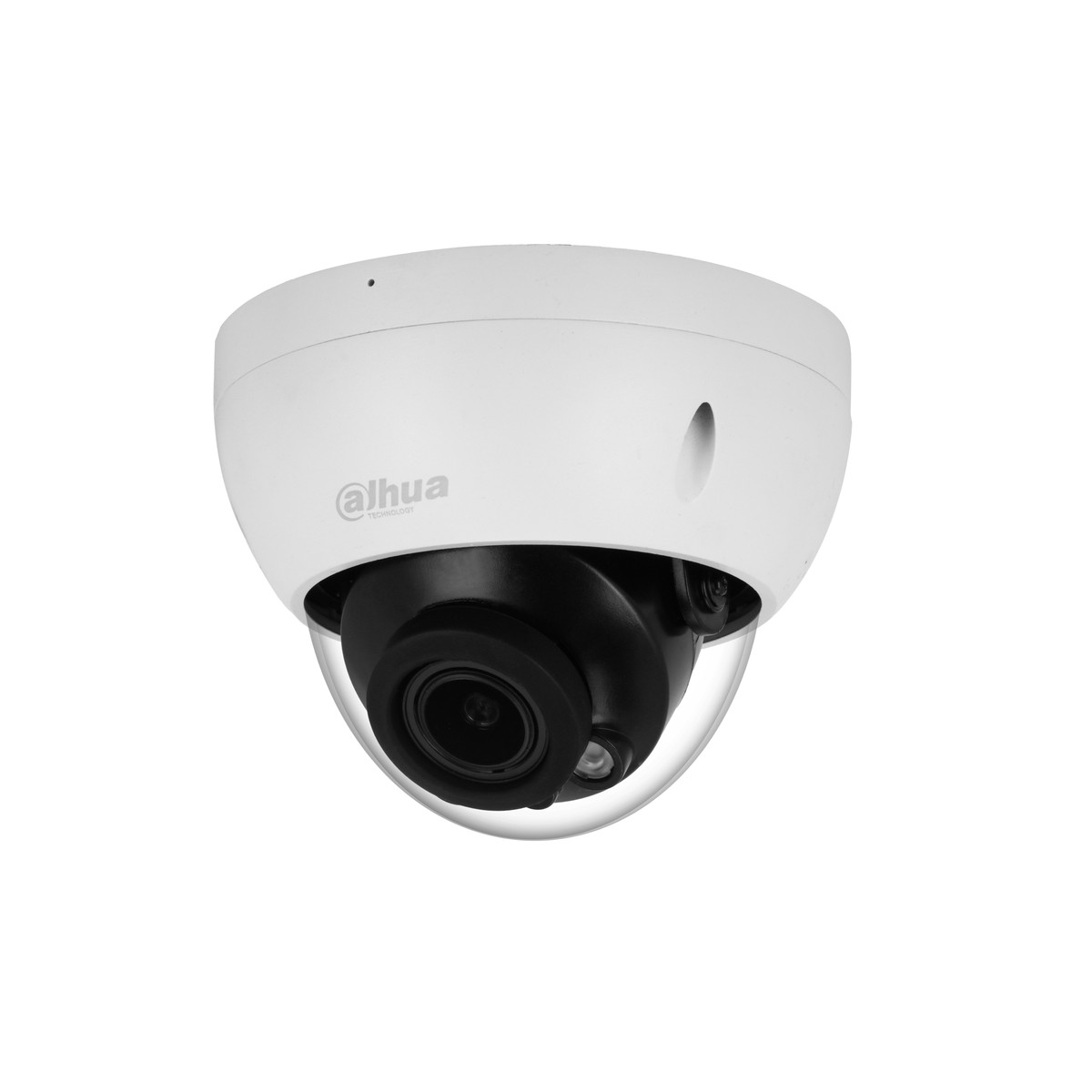

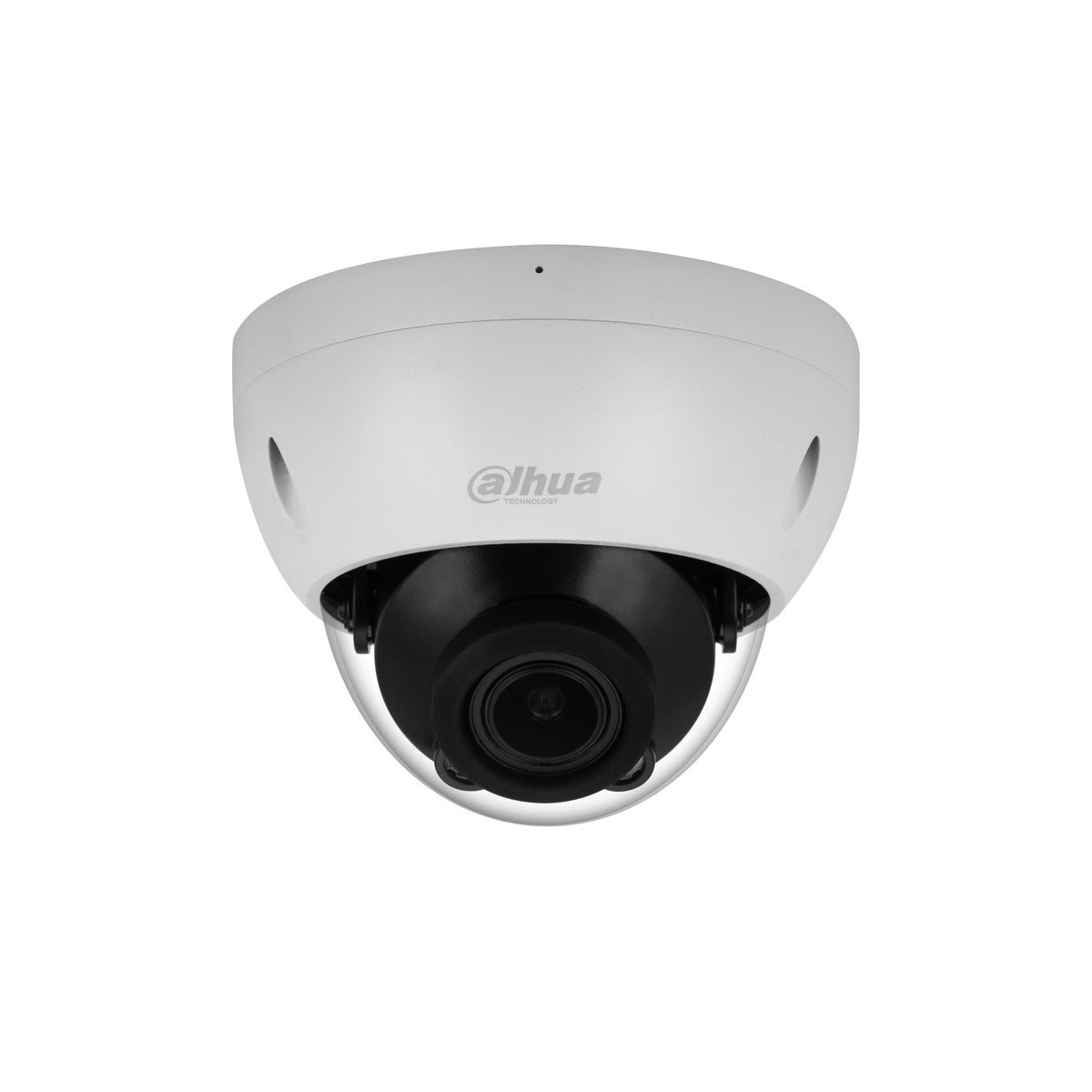

Telecamera dome IP AI WizSense da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.7″, risoluzione 8 MP (3840×2160) a 20fps (2688×1520 a 25/30fps), H.265+, ottica motorizzata varifocale 2.7~13.5 mm F1.5 (H 113°~31°), luminosità 0.008 lux F1.5, portata IR fino a 40 m, microfono integrato, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, WDR, 3D NR, HLC, BLC, micro SD card (256 GB), alimentazione 12 Vdc/PoE
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.008 lux@F1.5 (Color, 30 IRE) |
| Min. Illumination | 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) (IR) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED) Pan: 0°–355° |
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 113°–31°; V: 58°–18°; D: 138°–36° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × |
| Resolution | 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–8192 kbps |
| Video Bit Rate | H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto;Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android Digest; Security logs; WSSE; Account lockout; Syslog; |
| Security | 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
| Port | |
| Audio Input | 1 channel (RCA port) (Only – ZAS supports) |
| Audio Output | 1 channel (RCA port) (Only – ZAS supports) |
| Alarm Input | 1 channel in: 5mA 3V–5 VDC (Only – ZAS supports) |
| Alarm Output | 1 channel out: 300mA 12 VDC (Only – ZAS supports) |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) -ZS: Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.3 W (12 VDC); 7.2 W (PoE) |
| Power Consumption | -ZAS: Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.3 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 93.4 mm × Φ122 mm (3.68" × Φ4.80") -ZS: 0.50 kg (1.10 lb) |
| Net Weight | -ZAS: 0.51 kg (1.12 lb) -ZS: 0.66 kg (1.46 lb) |
| Gross Weight | -ZAS: 0.67 kg (1.48 lb) |
| Ordering Information | |
| Type | Model Description 8MP IR Vari-focal Dome WizSense DH-IPC-HDBW2841R-ZAS Network Camera |
| 8MP Camera | 8MP IR Vari-focal Dome WizSense DH-IPC-HDBW2841R-ZS Network Camera PFA137 Junction Box PFB203W Wall Mount Bracket PFA109 Mount Adapter PFB220C Ceiling Mount Bracket |
| Accessories | |
| (Optional) | PFA152-E Pole Mount Bracket PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA137 | PFB203W PFA109 |
| Junction | Wall Mount Mount |
| Box | Bracket Adapter PFA152-E PFM321D |
| PFB220C | Pole Mount 12 VDC 1A |
| Ceiling Mount | Bracket Power Adapter |
| Bracket | TF-P100 |
| PFM900-E | MicroSD |
| Integrated | Memory Card |
