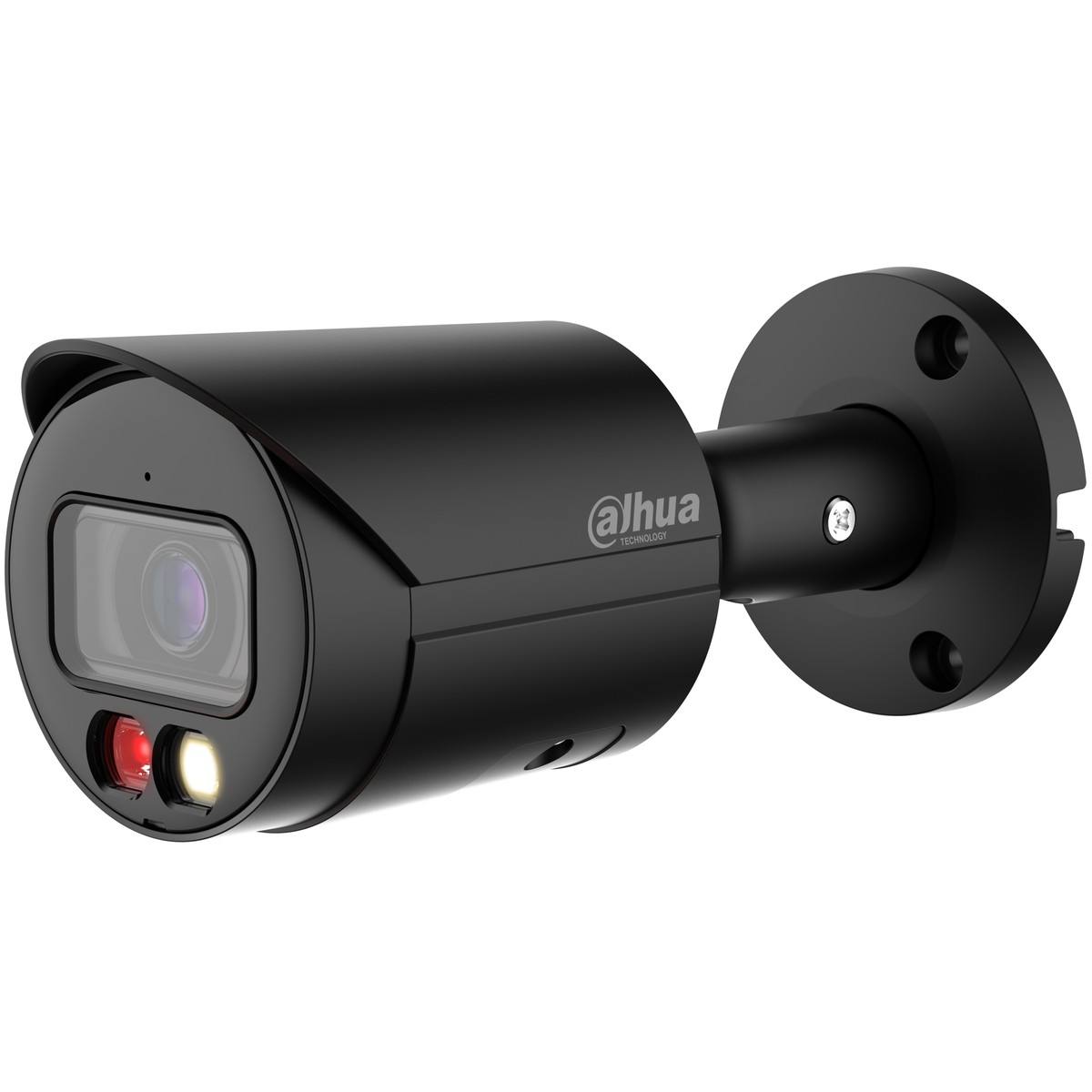

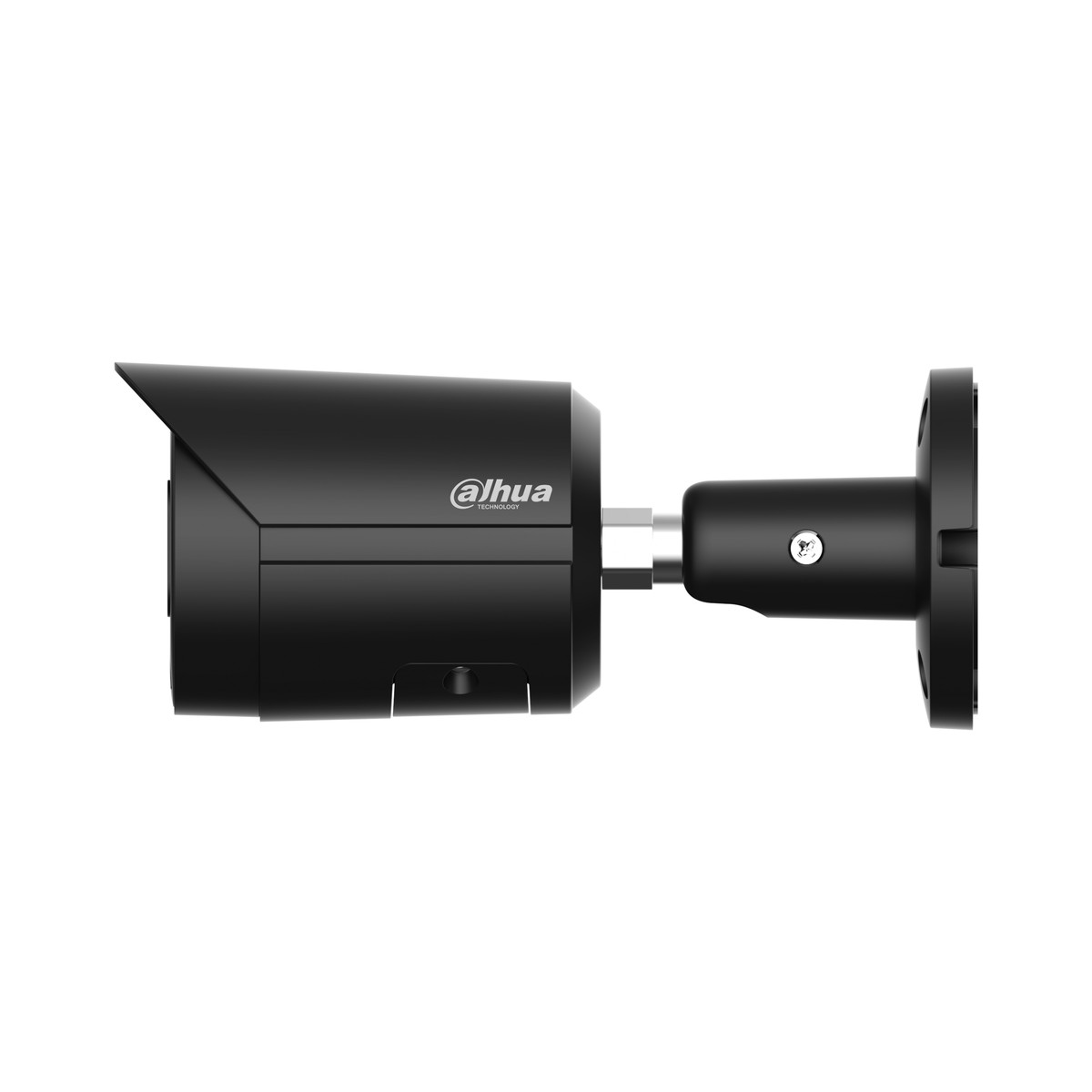

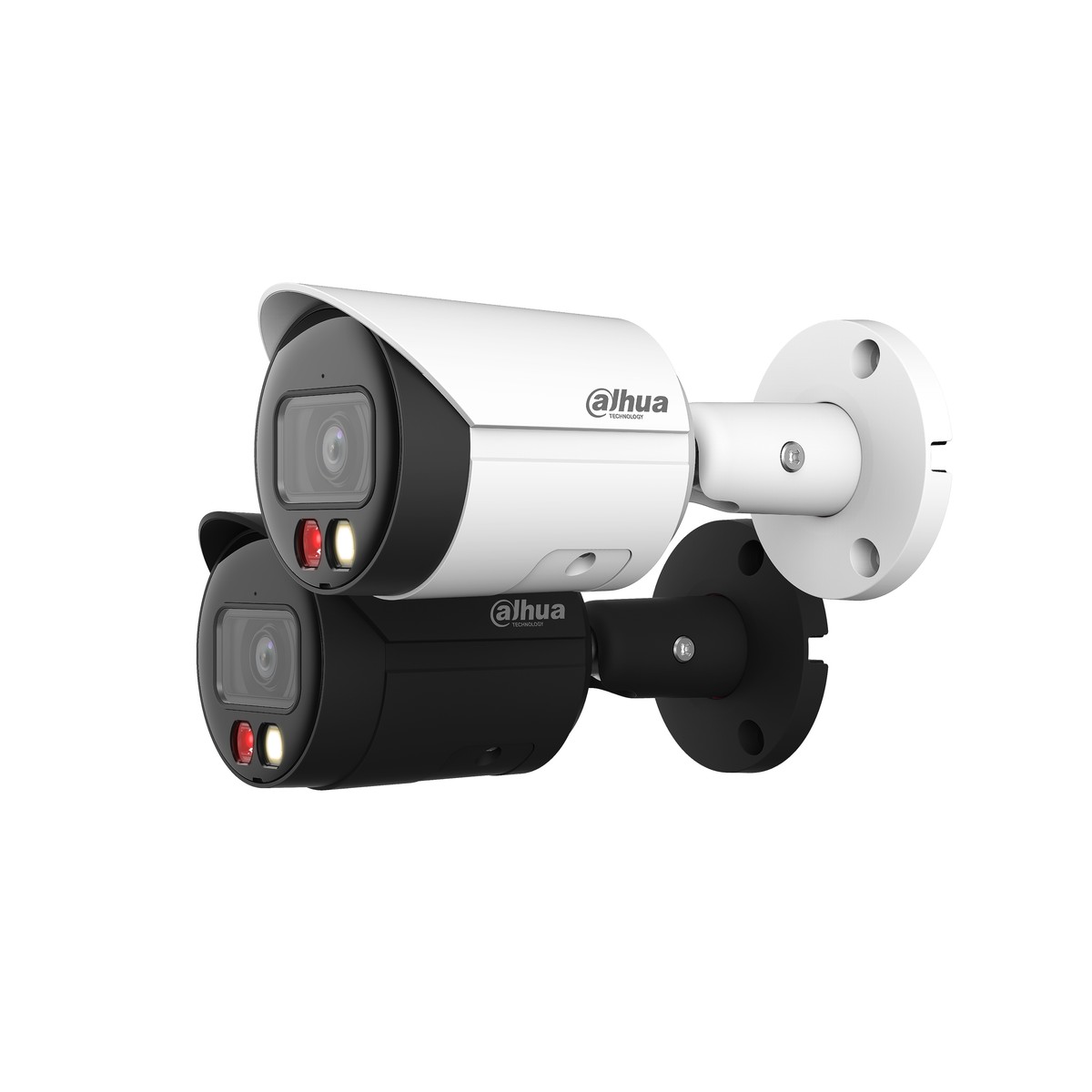

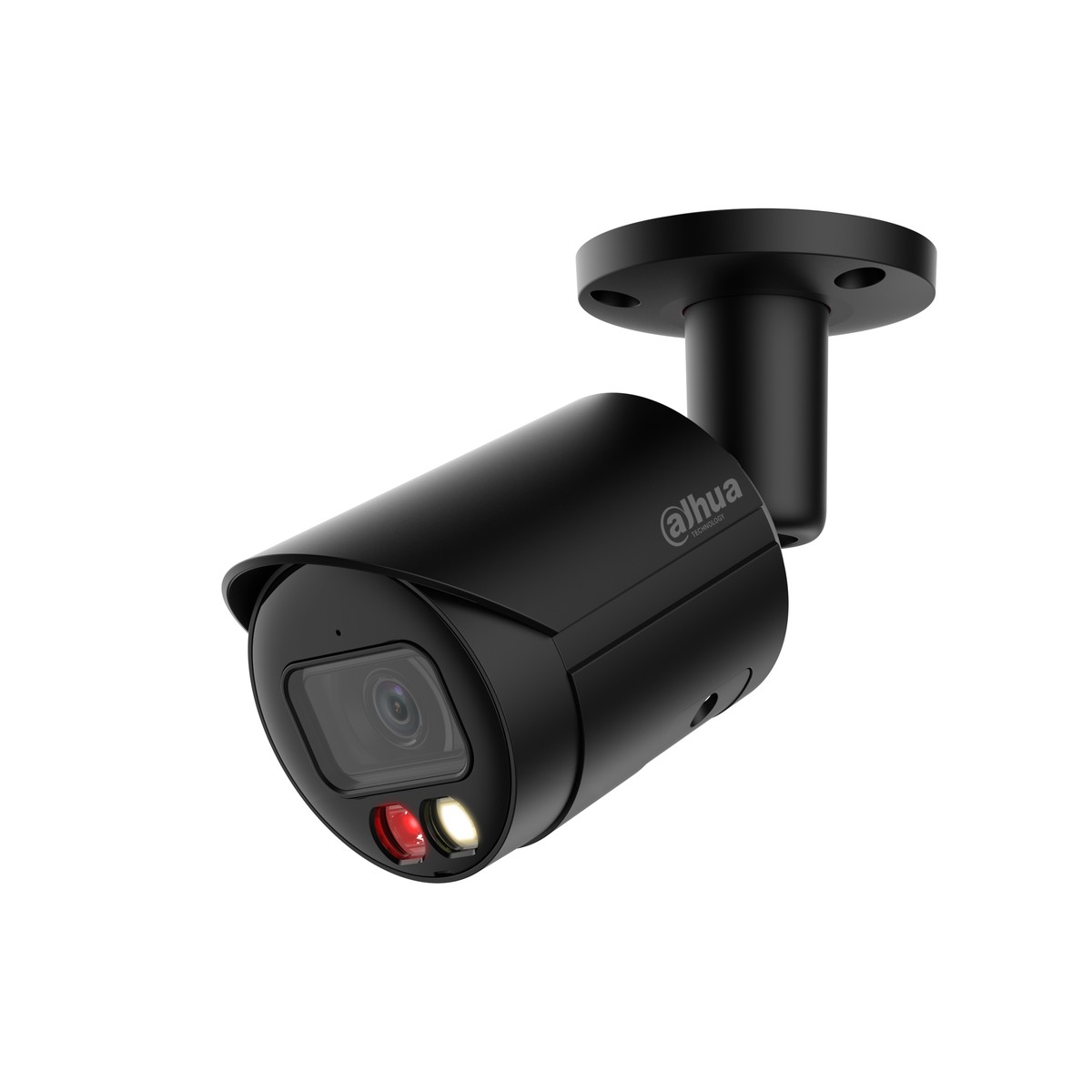

Telecamera bullet IP AI WizSense con Smart Dual Light, versione di colore nero, sensore CMOS progressivo 1/2.7″, risoluzione max 5 MP (2960×1668) a 20 fps e 2688×1520 a 25/30 fps, H.265/H.264, Smart H.265+/H.264+, ROI, ottica fissa M12 F1.6, luminosità 0.007 lux F1.6 (0 lux con illuminatore acceso), portata IR e luce calda fino a 30 m, WDR, 3D NR, HLC, BLC, IVS (intrusione e attraversamento linea con classificazione uomo/veicolo), SMD Plus, microfono integrato, micro SD card fino a 256 GB, IP67, alimentazione 12 Vdc/PoE
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2960 (H) × 1668 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.007 Lux@F1.6(Color,30IRE) |
| Min. Illumination | 0.0007 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 1(Warm light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 111°; V: 58°; D: 132° |
| Field of View | 3.6 mm: H: 92°; V: 45°; D: 110° |
| Iris Control | Fixed 2.8 mm: 1.1 m (3.61 ft) |
| Close Focus Distance | 3.6 mm: 1.7 m (5.58 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × |
| Resolution | 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–8192 kbps |
| Video Bit Rate | H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video |
| Cyber Security | encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; Generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) Basic: 2.2 W (12 VDC); 2.9 W (PoE) |
| Power Consumption | Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 4.6 W (12 VDC); 5.5 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal 166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L |
| Product Dimensions | × W × H) |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
| Ordering Information | |
| Type | Model Description 5MP Smart Dual Light Fixed-focal |
| 5MP Camera | DH-IPC-HFW2549S-S-IL Bullet WizSense Network Camera PFA134 Junction Box PFA130-E Water-proof Junction Box PFA152-E Pole Mount Bracket |
| Accessories | |
| (Optional) | PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Optional: | |
| PFA134 | PFA130-E PFA152-E |
| Junction Box | Water-proof Pole Mount Junction Box Bracket |
| PFM321D | PFM900-E TF-P100 |
| 12 VDC 1A Power | Integrated Mount MicroSD Memory |
| Adapter | Tester |
