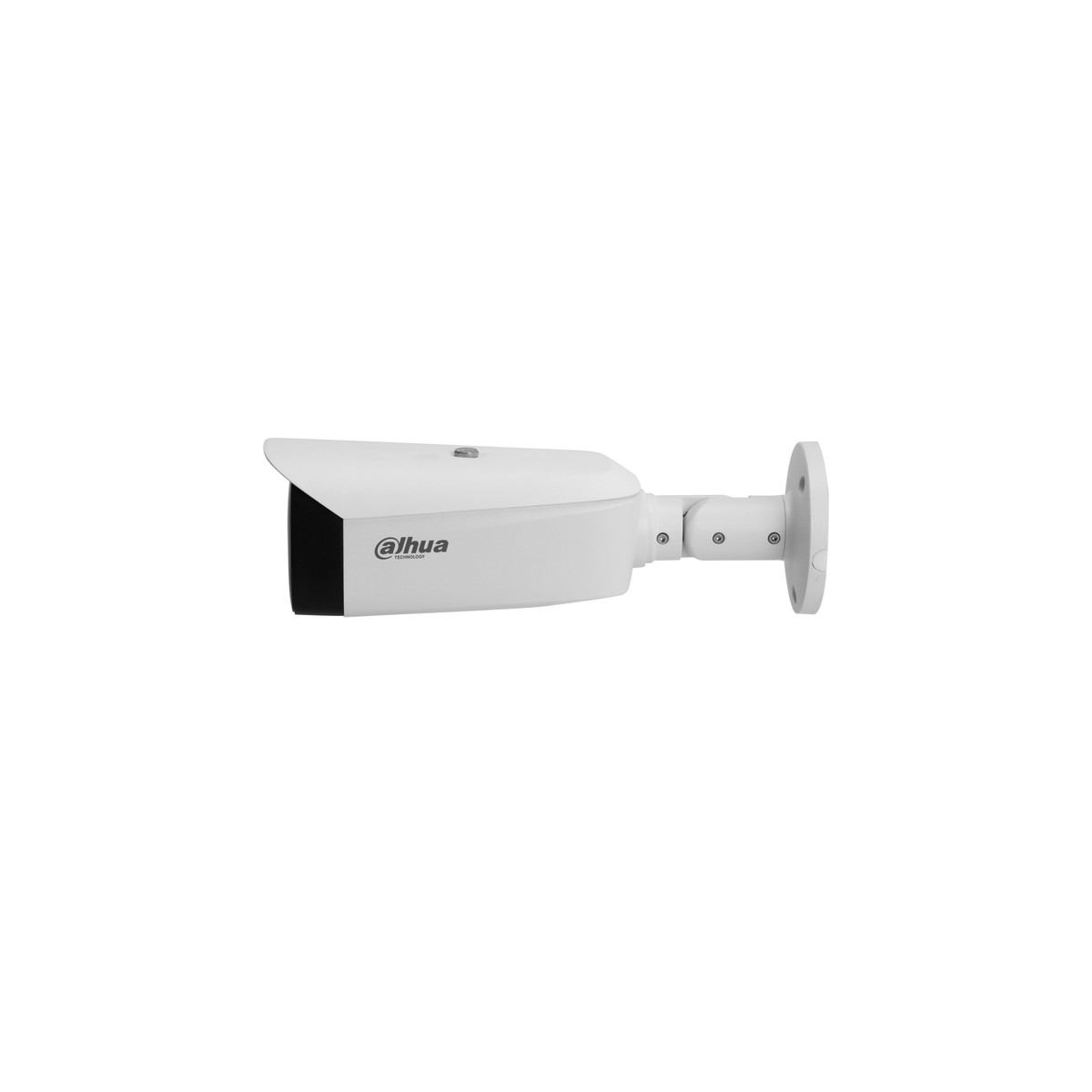

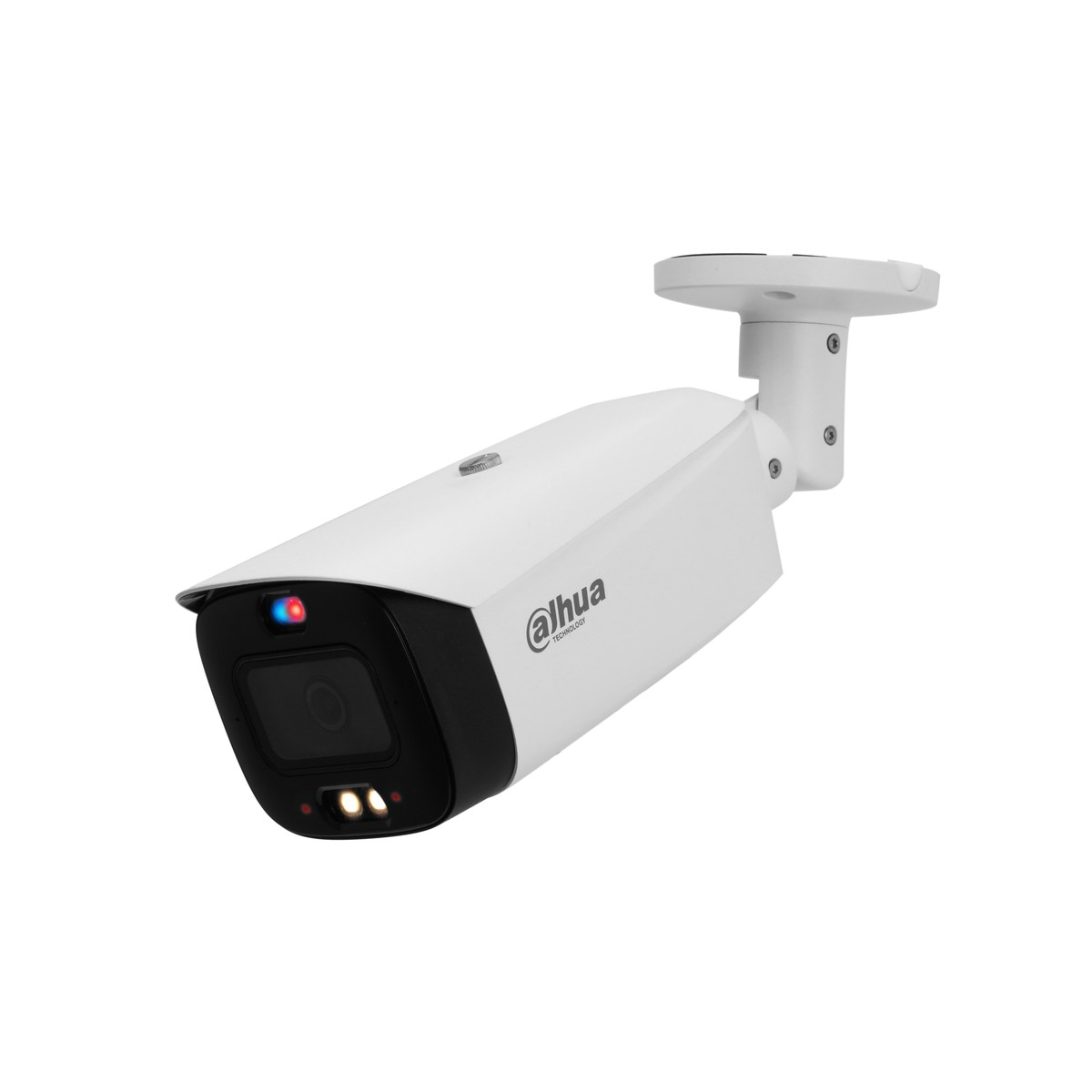

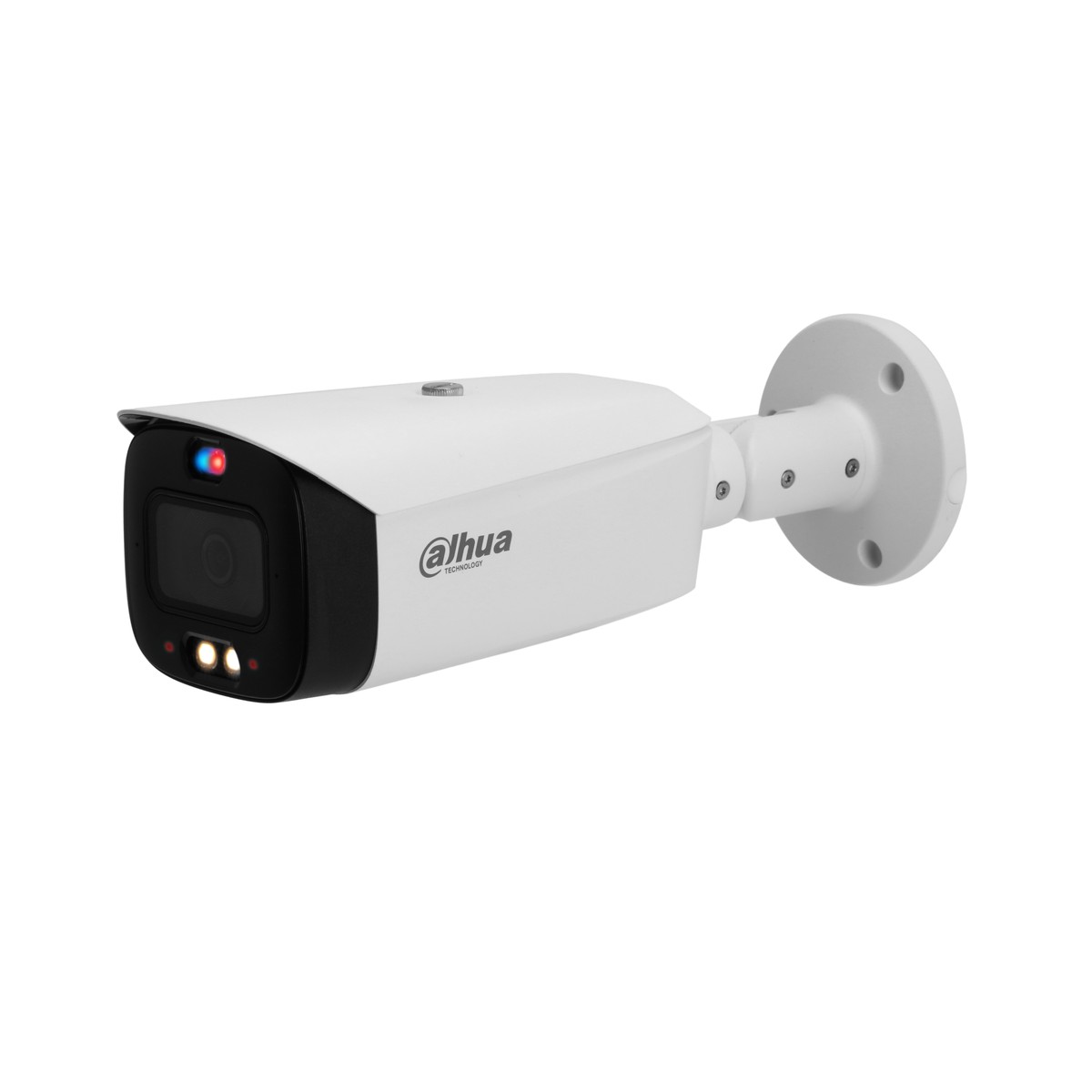

Telecamera IP bullet WizSense da 8 MP con Smart Dual Light e deterrenza attiva luminosa e sonora, a ottica fissa. I dati si riferiscono alla serie 3849-PV-S5.
- Sensore CMOS 1/2.7″, 3840 × 2160 a 25/30 fps; codifica H.265, H.264, Smart H.265+/H.264+ e AI Coding
- Ottica fissa 2,8 mm o 3,6 mm, apertura F1.0; WDR 120 dB, 3D NR, HLC, BLC
- Due illuminatori IR e due a luce calda, portata fino a 30 m
- Deterrenza attiva con luci rosse e blu e allarme vocale, anche con messaggi personalizzati
- Protezione perimetrale (intrusione, attraversamento linea) con classificazione di persone e veicoli, rilevamento di stazionamento e bighellonaggio, rilevamento volti, SMD 4.0, AcuPick
- Doppio microfono e altoparlante integrati per audio bidirezionale; 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio
- Alimentazione 12 VDC o PoE (802.3af), grado di protezione IP67
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125°; 3.6 mm: H: 85; V: 45°; D: 102° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance (2.8 mm) | Detect: 66.0 m (216.54 ft); Observe: 26.4 m (86.61 ft); Recognize: 13.2 m (43.31 ft); Identify: 6.6 m (21.65 ft) |
| DORI Distance (3.6 mm) | Detect: 78.0 m (255.91 ft); Observe: 22.2 m (102.36 ft); Recognize: 15.6 m (51.18 ft); Identify: 7.8 m (25.59 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| SMD | SMD 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| AI Coding | AI H.265; AI H.264; *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps); Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps); Third stream: 1920 × 1080@ (1 fps–25/30 fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker; Max power consumption: 2 W; max sound level at 10 cm: 110 dB; * Test results from laboratory |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP;SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE); Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.7 W (12 VDC); 9.4 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72"× 3.33") (L × W × H) |
| Net Weight | 1.0 kg (2.20 lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
