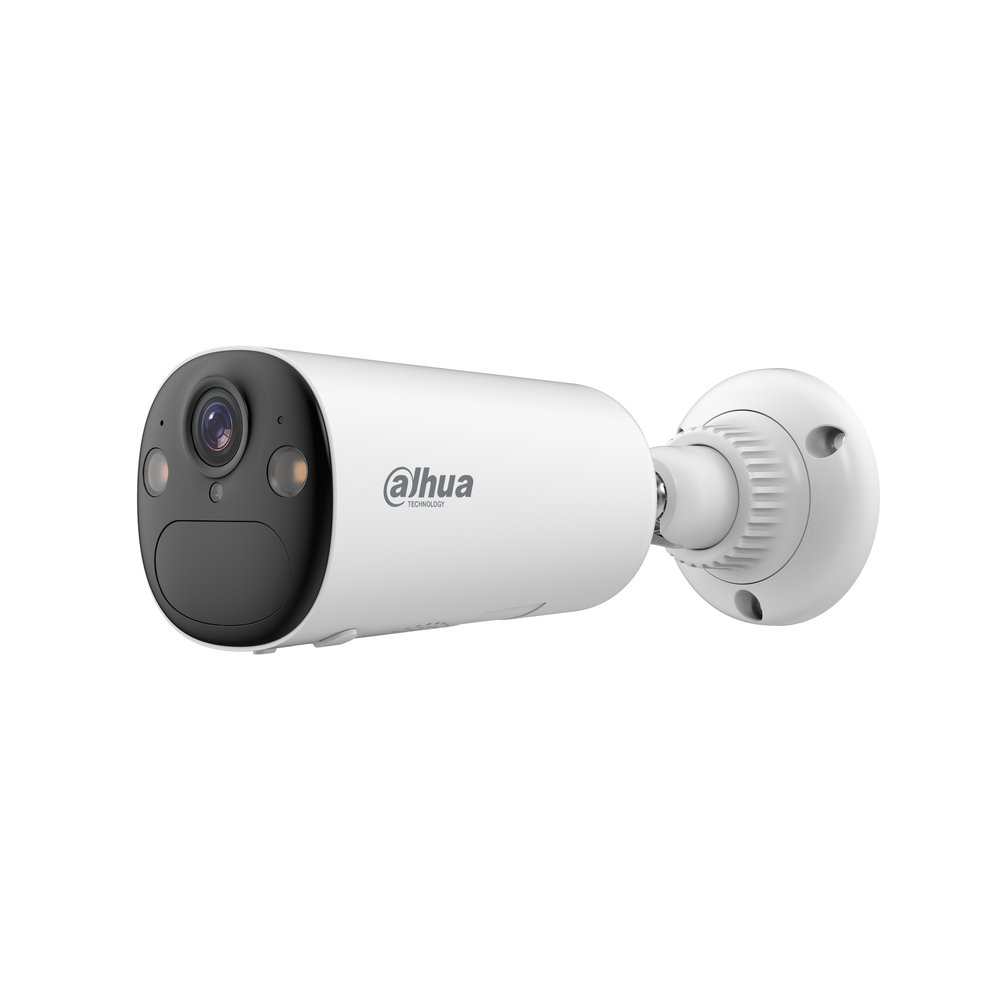

Telecamera bullet AI 4G Smart Dual Light con deterrenza attiva IP66, sensore CMOS progressivo 1/3", risoluzione 4 MP a 15fps, H.265, ICR, ottica fissa 2.1 mm ƒ1.6, portata IR/LED fino a 15/20 m, PIR, rilevamento persone e veicoli, microfono e speaker integrati, 1 porta USB Type-C, WDR, human/vehicle detection, slot micro SD card (fino a 512 GB), batteria al litio integrata 32.4 Wh
Datasheet
Disegni
| Non-Stop Protection | |
| Clear images with sharp details | Uninterrupted operations through battery and solar charging |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) Up to 15 m (49.21 ft) (IR) |
| Illumination Distance | Up to 20 m (65.62 ft) (Warm light) |
| Illuminator Number | 2 (Multi-core (IR + warm) light) Pan: 0° to 360° |
| Angle Adjustment | Tilt: –60° to 0° Rotation: 0° to 360° 12 m (the height of device is 2.5 m, placed horizontally); |
| PIR Sensor Distance | 8 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal) |
| Lens Type | Fixed-focal |
| Focal Length | 2.1 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 122.5°; V: 66°; D: 144.5° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio And Video | |
| Video Compression | H.265 Main stream: 2560 × 1440@(1–15 fps) Sub stream: 640 × 360@(1–15 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 32 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM Tools: Documents: Power: Position Map × 1 Quick Start Guide × 1 Power Cable × 1 |
| Network | |
| Carrier Network System | (-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66; Applicable regions: Latin America Power class 3: 23dBm ±2.7dB |
| Storage | |
| Management Software | DMSS |
| Mobile Client | Android;iOS |
| Certifications | |
| Power Supply | Charging: USB Type-C Ultra power saving mode: 0.04 W Power saving mode: 0.041 W |
| Power Consumption | AOV mode: 0.2 W Performance mode: 1.2 W |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Camera Button | Reset Button; Power Button |
| Casing Material | Plastic |
| Product Dimensions | 186.5 mm × Φ65.0 mm (7.34" × Φ2.56") |
| Net Weight | 0.37 kg (0.82 lb) |
| Battery | |
| Battery Capacity | 32.4 Wh |
