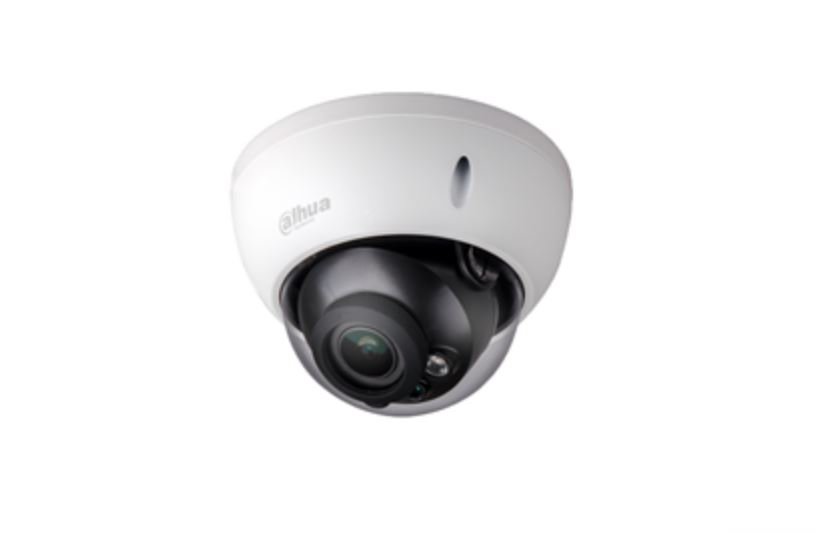

Dome HDCVI 5 MP 2.7~13.5 mm IR

Name: Dome HDCVI 5 MP 2.7~13.5 mm IR
Brand: Dahua
SKU: HAC-HDBW2501R-Z-S2
Price: 164.70 EUR
Availability: BackOrder

Dahua

COD: HAC-HDBW2501R-Z-S2 Categorie: Telecamere analogiche, Videosorveglianza Tag: 5MP

164,70 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 329,40 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

Telecamera dome HDCVI Starlight da esterno/interno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica motorizzata 2.7~13.5 mm ƒ1.6, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 30 m, 3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), OSD, alimentazione 12 Vdc <6.6 W

Datasheet

Scheda Tecnica

Manuali

Functions
V4.001.0000001.0.R.200908 or later version.	Starlight
Camera
Image Sensor	1/2.7 inch CMOS
Max. Resolution	2880 (H) × 1620 (V)
Pixel	5MP
Scanning System	Progressive PAL: 1/3 s–1/100,000 s
Electronic Shutter Speed	NTSC: 1/4 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Illumination Distance	30 m (98.4 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2 Pan: 0°–355°
Pan/Tilt/Rotation Range	Tilt: 0°–75° Rotation: 0°–355°
Lens
Lens Type	Motorized vari-focal
Auto Focus	Yes
Mount Type	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.6 Horizontal: 31.4°–113°
Field of View	Vertical: 17.6°–58° Diagonal: 36°–138°
Iris Type	Fixed iris
Close Focus Distance	0.8 m (2.6 ft)
Lens
DORI distance	*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool.
Video
Frame Rate	TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440);
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/HLC/HLC-Pro/WDR
WDR	120 dB
White Balance	Auto; manual
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart Illumination	Yes
Digital Zoom	4x
Defog
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Port
Video Output	BNC port (DIP Switch)
Power
Power Supply	12V DC ±30%
Power Consumption	Max. 6.6W (12V DC, IR on)
Environmental
Operating Temperature	(non-condensation) –30°C to +60°C (–22°F to +140°F); < 95%
Storage Temperature	(non-condensation)
Protection Grade	IP67; IK10
Structure
Casing	Metal throughout the whole casing
Camera Dimensions	φ122 mm × 88.9 mm (φ4.8" × 3.5")
Net Weight	0.47 kg (1.04 lb)
Gross Weight	0.64 kg (1.40 lb)
Ordering Information
Type	Part Number DH-HAC- HDBW2501RP-Z 2.7 mm–13.5 mm
5MP Camera	5MP Starlight HDCVI IR Dome Camera DH-HAC- HDBW2501RN-Z 2.7 mm–13.5 mm IP66 Junction Box PFA123 Junction Box PFA137 Wall Mount Bracket PFB203W Pole Mount Bracket PFA152-E
Accessories
Optional:	PFA123 PFA137 PFB203W
IP66 Junction Box	Junction Box Wall Mount Bracket PFA106 PFB220C PFA152-E Mount Adapter Ceiling Mount Bracket
Pole Mount Bracket	PFM904 PFM321D PFM800-4K Integrated Mount Tester 12V 1A Power Adapter
Passive HDCVI Balun	The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product.
