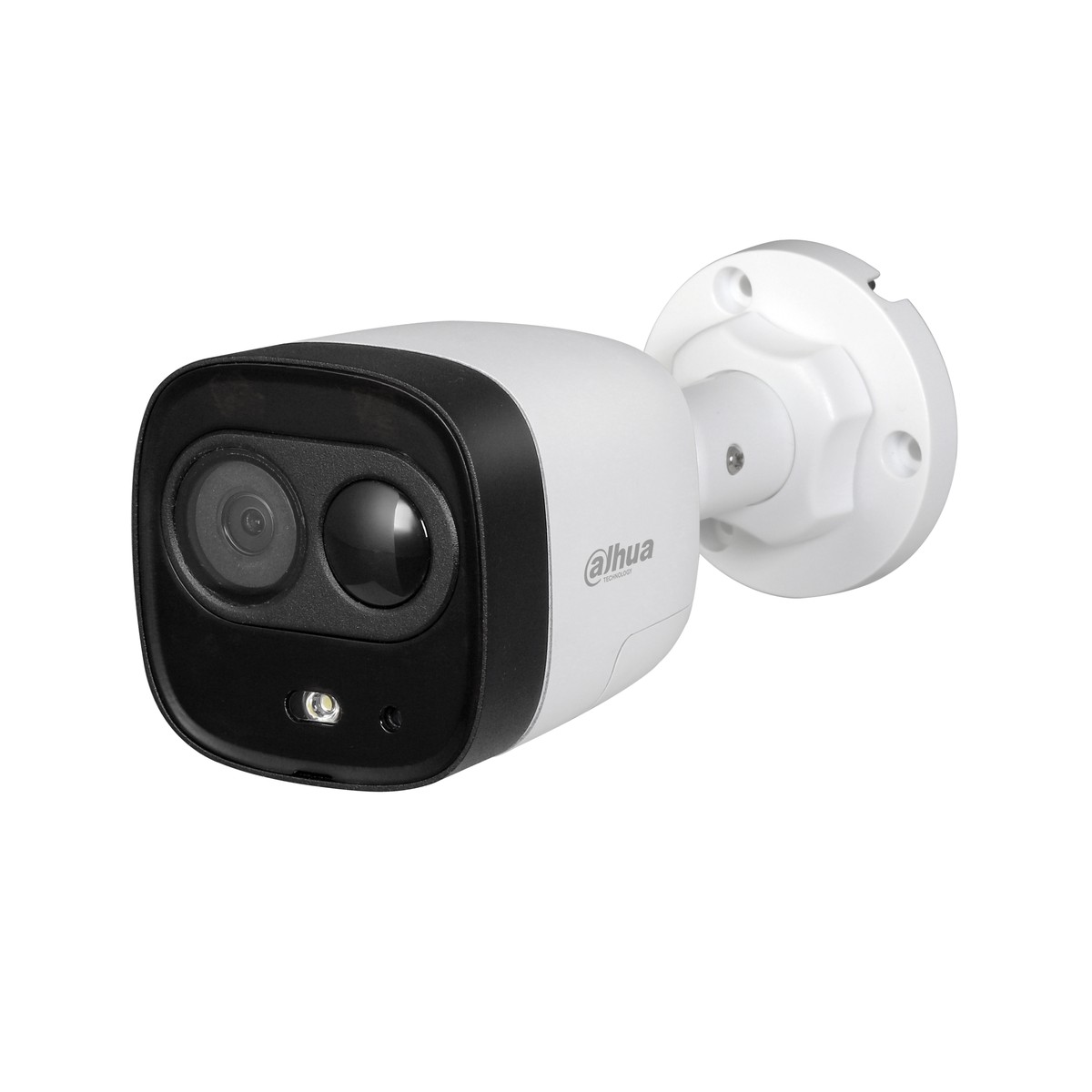

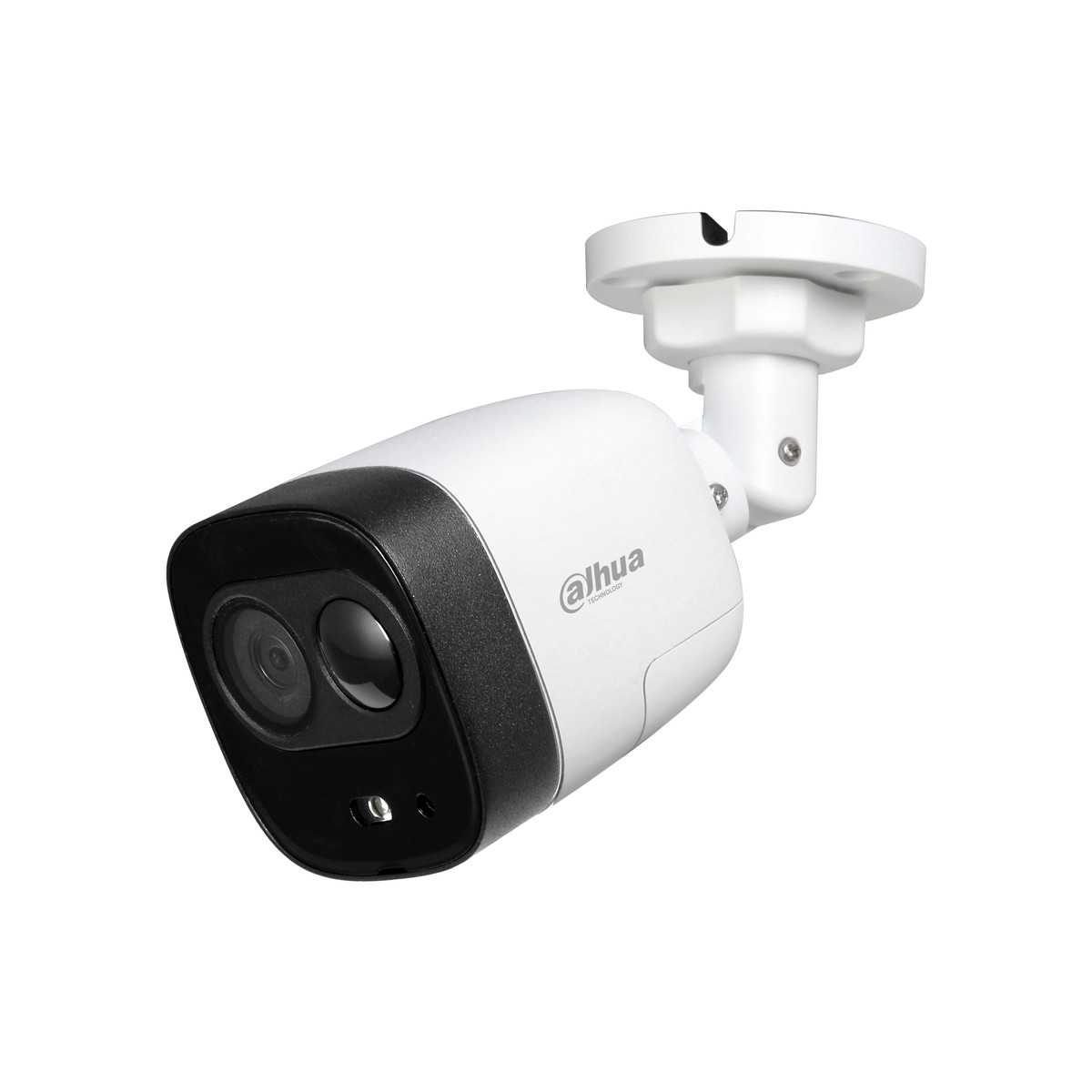

Telecamera bullet HDCVI Smart Dual Light con deterrenza attiva (luce calda e sirena) da interno/esterno IP67, risoluzione 2 MP 1080p fino a 30fps, uscita commutabile CVI/CVBS/AHD/TVI, ottica fissa 3.6 mm (2.8 mm opzionale), portata illuminazione fino a 30 m, Super Adapt, 3D NR, alimentazione 12 Vdc; per usare la funzione Smart Dual Light il firmware dell’XVR deve essere V1.001.0000000.0.R.20240202 o successivo
Datasheet
Manuali
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | > 65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (Warm light); 1 (IR light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 3.6 mm; 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H: 134°; V: 111°; D: 60°. 3.6 mm: H: 108°; V: 89°; D: 48° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.7 m (2.30 ft) |
| DORI Distance (2.8 mm) | Detect 40.6 m; Observe 16.2 m; Recognize 8.1 m; Identify 4.1 m |
| DORI Distance (3.6 mm) | Detect 49.9 m; Observe 20.0 m; Recognize 10.0 m; Identify 5.0 m |
| Video | |
| Video Frame Rate | CVI/AHD/TVI: 1080p@25 fps (PAL), 1080p@30 fps (NTSC); CVBS: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL; WL Mode; IR Mode |
| Mirror | Yes |
| Active Deterrence | |
| Warm Light Warning | Flash; alert duration: 5 s–60 s; flash frequency: low/medium/high |
| Sound Warning | Only -LS models (siren with 5 audio prompts, alert duration 5 s–60 s) |
| Port | |
| Video Output | CVI/TVI/AHD/CVBS selectable on one BNC port |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 5.28 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | < 95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | < 95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal front cover + plastic |
| Product Dimensions | 168.8 mm × 79 mm × 79 mm (6.65" × 3.11" × 3.11") |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.45 kg (0.99 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035 |
