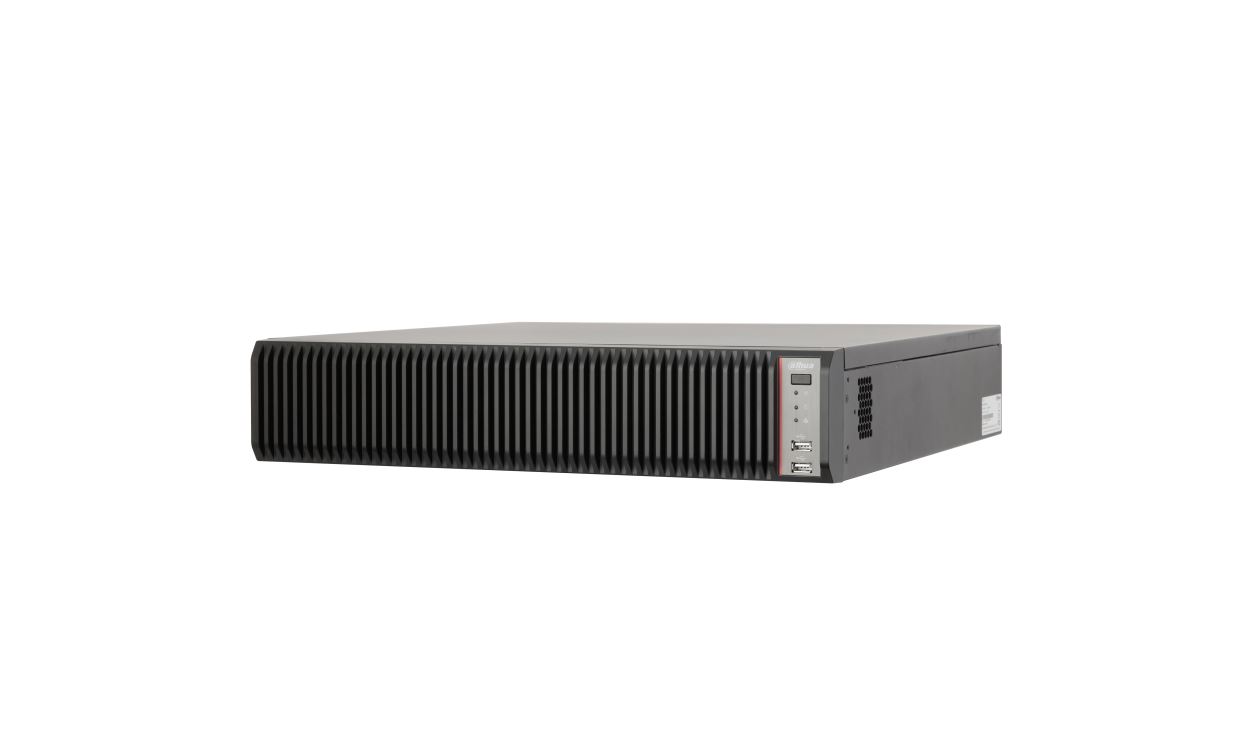

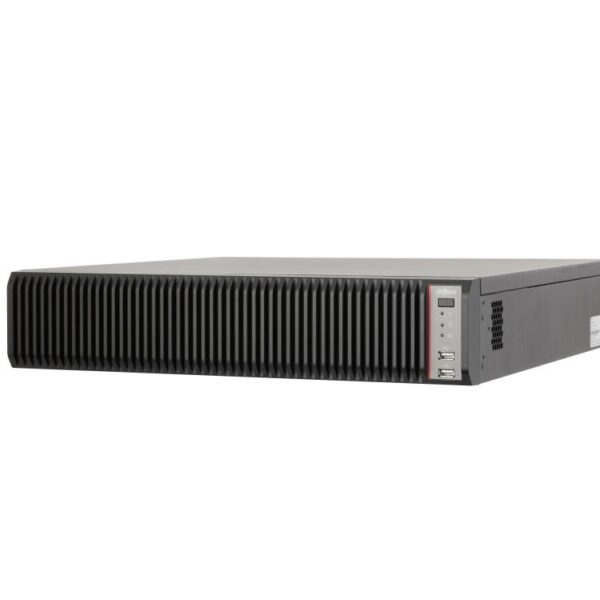

Server di videosorveglianza intelligente WizMind 2U 8 HDD
> Microcontrollore embedded industriale
> Banda in ingresso max 400 Mbps
> Accesso video IP a 128 canali
| Functions | |
| Human Capture | Video Metadata Image Search |
| System | |
| Main Processor | Industry embedded micro-controller |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| Ai Applications | |
| AI by Camera | object, fast moving, parking detection, crowd gathering, loitering, parking, and fence-crossing), people counting, smoking detection, call detection face detection, face recognition, video metadata, |
| AI by Device | IVS (tripwire, intrusion,crowd gathering, loitering detection, parking detection), plate comparison |
| Ivs | |
| IVS Performance (AI by | 24-channel 2 MP or 16-channel 4 MP with normal IP |
| Camera | |
| by Camera) (Channel | 64-channel |
| Human Face Detection | |
| Human Face Properties | mouth mask, and beard |
| Face Detection | 24-channel 2 MP or 16-channel 4 MP with normal IP |
| Camera | |
| Performance (AI by | 80-channel |
| Human Face Recognition | |
| Face Database Capacity | 50 face databases with 500,000 face pictures in total 24-channel 2 MP or 16-channel 4 MP with normal IP |
| Camera | |
| Performance (AI by | 80-channel with face detection IP camera (Totally 80 |
| Device)(Channel Number) | face pictures analyzed per second) |
| Performance (AI by | 80-channel |
| Anpr | |
| Plate Database Capacity | Supports allowlist and blocklist |
| Performance by ITC | 32-channel |
| Video Metadata | |
| Human Body Properties | bottom color, bag, rain coat, umbrella,hat, hairstyle, direction, hold a baby, mouth mask Vehicle type, vehicle color, plate color, logo, calling, |
| Vehicle Properties | seatbelt, ornament, region Non-motor vehicle type, non-motor vehicle color, |
| Non-motorized Vehicle | number of passengers, umbrella, rain coat, bag , sleeve |
| Properties | length, top color, hat, hair style, mouth mask |
| Metadata Performance | 24-channel 2 MP or 16-channel 4 MP with normal IP |
| Camera | |
| (AI by camera) (Channel | 32-channel |
| Video Parameters | |
| Remote Connection | 128-channel Incoming bandwidth: 400 Mbps |
| Network Bandwidth | recording bandwidth: 320 Mbps outgoing bandwidth: 96 Mbps 32MP/24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/10 |
| Resolution | 80p/960p/720p/D1/CIF/QCIF 1-channel 32MP/1-channel 24MP/2-channel 16MP/5- channel 12MP (20 fps)/6-channel 12MP (15 fps)/5- channel 8MP (30 fps)/10-channel 8MP (15 fps)/6- channel 6MP(30 fps)/8-channel 5MP(30 fps)/9-channel |
| Decoding Capability | 5MP (25 fps)/10-channel 4MP (30 fps)/15-channel 4MP (20 fps)/16-channel 3MP (25 fps)/10-channel 1080p (60 fps)/20-channel 1080p (30 fps)/30-channel 720p (30 fps) 1-channel VGA output, 4-channel HDMI output, VGA 1/ |
| Video Output | HDMI 1 outputs the same video source. Supports 4K output 1st Screen: Max.64-channel 2nd Screen: Max.16-channel |
| Multi-screen Display | 3rd Screen: Max.1-channel 4th Screen: Max.1-channel Onvif; RTSP; Sony; Panasonic; Axis; Arecont; Pelco; |
| Third-party Support | Canon; Samsung |
| Operating System | Embedded Linux OS |
| Operation Interface | WEB (PCAPP), local GUI |
| Compression | |
| Video Compression | Smart H.265+; Smart H.264+; H.265; H.264 |
| Audio Compression | G.711a; G.711u; PCM; G.726 |
| Protocol | |
| Mobile Phone | DMSS |
| Interoperability | ONVIF (Profile S, T and G); CGI; SDK |
| Browser | Chrome; PCAPP; IE9 or higher; Firefox NIC binding mode such as multiple-address mode, load |
| Network Mode | balance, fault-tolerance, etc |
| Record Playback | |
| Multiple-channel Playback | Max. 16-channel playback Search video detection/manual record/IO alarm/ |
| Record Search | intelligent event/all record file |
| Storage Medium | Internal HDD |
| Backup Method | HDD, peripheral USB storage device Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play |
| Playback Function | Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off |
| Storage | |
| HDD Group | 8 |
| RAID | RAID 0/1/5/6/10/50/60 |
| Storage Pool | N/A |
| Alarm | |
| General Alarm | Motion detect, tampering, local alarm IPC offline alarm, storage error, HDD full, IP conflict, |
| Anomaly Alarm | MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction Human face detection, human face recognition,entries frequency, video metadata (person/vehicle/non- |
| Intelligent Alarm | motor vehicle), IVS, plate recognition, people counting, smoking, call Record, snapshot (full image), local external alarm |
| Alarm Linkage | output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email |
| Peripheral Interface | |
| Audio Input | 1-channel, RCA port (reserved) 2-channel, RCA port, speaker output, audio linkage |
| Audio Output | output |
| Alarm Input | 16-channel |
| Alarm Output | 8-channel |
| Internal HDD | 8 slots, SATA3.0. Max. 16T/HDD |
| eSATA | 1 port |
| SAS | N/A |
| RS-232 | 1 port, for debug or transparent COM data 1 port, control peripheral PTZ and so on |
| RS-485 | Supports various protocols 4 ports |
| USB | 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel |
| HDMI | 4 ports; support 4K output |
| VGA | 1 ports |
| Power | |
| PoE | N/A |
| General Parameters | |
| Power Supply | 100V AC–240V AC 50-60Hz 38W (without HDD, idling) |
| Power Consumption | 105W (all HDDs connected) |
| Net Weight | 7.66 kg (16.89 lb) |
| Gross Weight | 10.24 kg (22.58 lb) Chassis: 439.7 mm × 446.2 mm × 89.0 mm |
| Dimensions | (17.31 " × 17.57 " × 3.50 ") Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8 |
| (W × L × H) | mm (with feet mat) (18.96 " × 17.57 " × 3.57 ") With Packaging: 562 mm × 599 mm × 235 mm |
| Packaging Dimensions | (22.13 " × 23.58 " × 9.25 ") Protection box: 491 mm × 584 mm × 631 mm |
| (W × L × H) | (19.33 " × 22.99 " × 24.84 ") |
| Operating Conditions | 0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH |
| Strorage Conditions | –20 °C to +70 °C (–4 °F to +158 °F) |
| Operating Altitude | 5000 m (16404.20 ft) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Installation Mode | Desktop/rack CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 |
