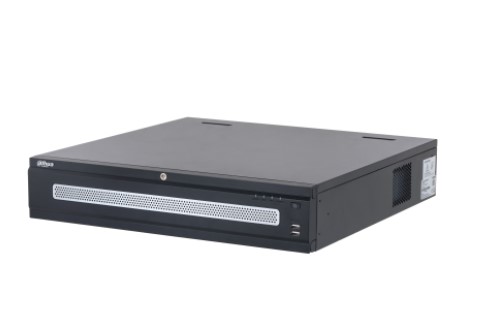

NVR AI WizMind 16 canali IP fino a 32 MP (encoding), 16 canali 4 MP (decoding), massima banda 512 Mbps, 4 uscite video (2 VGA + 2 HDMI), 16 ingressi e 8 uscite allarme, 1 ingresso e 2 uscite (RCA) audio, predisposto per montaggio di 8 Hard Disk SATA (fino a 20 TB cad.), RAID 0/1/5/6/10, Hot Swapping, 4 porte USB (2 2.0 e 2 3.0), 1 porta eSATA, 1 porta RS232, 2 porte RS485, 2 porte LAN 10/100/1000 Mbps, 16 canali protezione perimetrale, 8 canali face detection/recognition, 16 canali SMD Plus, 8 canali metadati video, 16 canali AcuPick, 2U, alimentazione 100-240 Vac <13 W
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); |
| AI by Camera | perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection |
| by Camera (Number of | All channels (36 targets/s) |
| Perimeter Protection | |
| by Recorder (Number of | 16 channels, 10 IVS rules for each channel |
| AI by Camera (Number of | All channels (32 targets/s) |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection | ： Sub screen 4K enabled 4 channels (up to 12 face |
| Performance of AI by | images/s each channel) ： |
| Recorder (Number of | Sub screen 4K disabled 8 channels (up to 12 face images/s each channel) |
| Performance of AI by | 16 channels |
| Face Recognition | |
| Face Database Capacity | total capacity of 44 G. Sub screen 4K enabled: 16-channel FD (by camera) + FR (by recorder),image stream: 32 face images/s |
| Face Recognition | 4-channel FD (by recorder) + FR (by recorder), video |
| Performance of AI by | stream: 16 face images/s |
| Recorder (Number of | Sub screen 4K disabled: 16-channel FD (by camera) + FR (by recorder),image |
| Channels) | stream: 32 face images/s 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Performance of AI by | 16 channels |
| Smd Plus | |
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| Video Metadata | |
| AI by Recorder (Number of | 8 channels, 23 attributes extraction. |
| AI by Camera (Number of | 16 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor Vehicle | 4 attributes |
| ANPR by Camera (Number | All channels (32 targets/s) |
| License Plate Database | 1. Create up to 20,000 plate numbers. |
| Capacity | 2. Blocklist and allowlist |
| Audio And Video | |
| Access Channel | 16 channels AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing |
| Network Bandwidth | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF;QCIF AI disabled: 2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps |
| Decoding Capability | AI enabled: 1-channel 32 MP@30 fps; 1-channel 24 MP@30 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 16-channel 1080p@30 fps 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Main screen: 1/4/8/9/16 |
| Multi-screen Display | Sub screen: 1/4/8/9/16 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
| Third-party Camera Access | Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-address; load balance; fault tolerance |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Hot Swapping | Yes |
| Alarm | |
| General Alarm | external alarm; network alarm; scene changing; PIR alarm; thermal alarm Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network |
| Anomaly Alarm | disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection Face detection; face recognition; video metadata |
| Intelligent Alarm | (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison Record; snapshot (panoramic); local alarm output; IPC |
| Alarm Linkage | external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels ） |
| Alarm Output | 8 channels (1-channel 12 V 1 A output 8 SATA ports. Each disk can contain up to 20 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 2 (1 port for half-duplex serial communication, 1 port |
| RS-485 | for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <13 W (without HDD) |
| Net Weight | 7.48 kg (19.38 lb) |
| Gross Weight | 10.2 kg (22.49 lb) 440.0 mm × 459.6 mm × 95.0 mm (17.32" × 18.09" × |
| Product Dimensions | 3.74") (W × D × H) 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × |
| Packaging Dimensions | 8.90") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; |
| Ordering Information | |
| Type | Model Description |
| NETWORK VIDEO | 16CH 2U 8HDDs WizMind DHI-NVR5816H-XI |
| RECORDER | Network Video Recorder 4 Bay eSATA Extension ESS1504C Cabinet |
| Accessories (Optional) | DHI-ARB1606 Alarm Box DHI-RailBracket60/L- Dahua Server Cabinet Rail Shaped Bracket |
| Accessories | |
| Optional: | DHI-RailBracket60/L- |
| ESS1504C | DHI-ARB1606 Shaped |
| 4 Bay eSATA Extension | Alarm Box Dahua Server Cabinet Rail |
| Cabinet | Bracket |
