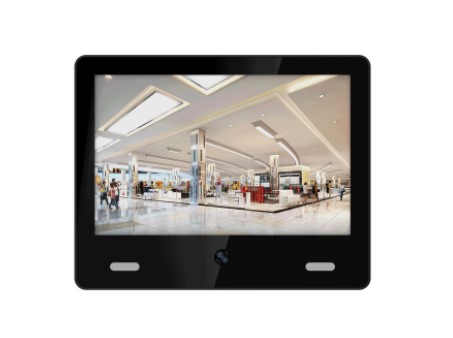

PVM (Public View Monitor) LED da 10.1" a parete, formato 16:10, risoluzione 1280×800, luminosità 250 nit, contrasto 1000:1, angolo di visione 170°/170°, telecamera da 2 MP, 1 RJ45 10/100 Mbps, 1 micro USB, 1 slot TF, 2 speaker 2 W, sistema operativo Linux, VESA 75×75 mm, alimentazione 12 Vdc/PoE <12 W
Datasheet
| Display | |
| Panel Dimensions | 10.1 inch |
| Backlight | LED |
| Resolution | 1280 (H) x 800 (V) |
| Viewable Size | 216.96mm x 135.6mm |
| Aspect Ratio | 16:10 |
| Brightness | 250 cd/m² (typ.) |
| Contrast | 1000:1 |
| Display Colors | 16.7 Million colors |
| Viewing Angle | 170° (H); 170° (V) |
| Response Time | 30ms (typ.) |
| Display Mode | Landscape/Portrait |
| Built-In System | |
| Processor | RV1126 Quad-core Cortex-A7 |
| Operating System | Linux |
| RAM | 1 GB |
| ROM | 8 GB |
| Interface | |
| Network Port | RJ45×1 10M/100M |
| Wi-Fi | No (Can be customized) |
| Speaker | |
| Built-in Speaker | 2 × 2 W |
| Camera | |
| Sensor | 1/2.9”, 2MP CMOS |
| Encoding Format | H.264 / H.265 |
| Effective Pixels | 1920×1080 |
| Lens | |
| Field of View | H: 78°; V: 48°; D: 85° |
| Integration Protocol | ONVIF |
| Recording Resolution | 1920×1080@25FPS |
| Motion Detection | Support |
| General | |
| Power Supply | DC12V±10%/POE 48V-56V±10% |
| Consumption (Typical) | 12W |
| Operating Temperature | 0°C to +40°C(+32°F to +104°F)(avoid direct sunlight) |
| Storage Temperature | -20°C to +60°C(-4°F to +140°F) |
| Operating Humidity | 10%–85% (RH), non-condensing |
| Storage Humidity | 10%–90% (RH), non-condensing |
| Product Material | Metal casing |
| Casing Color (Frame/Rear) | Black |
| Product Dimensions | 252mm × 200mm × 26mm |
| Packaging Dimensions | 305mm × 240mm × 75mm |
| Net Weight | 1.36kg |
| Gross Weight | 2.3kg |
| VESA | 75mm×75mm Mount bracket, User's manual, legal and regulatory |
| Accessory | information |
| Function | |
| Image Settings | wide dynamics, backlight compensation, strong light suppression, 3D noise reduction You can choose to record normally and trigger motion |
| Video | |
| Advertising | than 1GB in size The warning information supports warning pictures and |
| Warning Information | warning voices, and the logo picture can set the size and |
| and Logo | position of the picture |
| Description | |
| ADB/USB | It is used to download the firmware |
| TF | TF card slot (max 1TB) |
| LAN | RJ45, 100MB Alarm output interface. The default state is low level; high |
| ALARM OUT | level is the trigger state. Alarm input interface, two modes of open circuit or short |
| ALARM IN | circuit are optional. |
| GND | GND |
| NO | Normal open contact point of the relay |
| COM | Common contact point of the relay |
| NC | Normal close contact point of the relay Emergency mode trigger interface, external trigger level DC |
| EMERGENCY | 3-48V Face detection alarm output, the default state is low level; |
| FACE OUT | high level is the trigger state. Motion detection alarm output, the default state is low level; |
| MOTION OUT | high level is the trigger state. |
| GND | DC power GND |
| 12V | DC power 12V+ Pictures in the document are for reference only, and the actual product shall prevail. |
| Description | |
| A | Indicators white indicators |
| B | Screen 10.1 inch |
| C | Sensor 1080P |
| D | VESA Holes 75mm × 75mm |
| E | Wiring Duct TF card slot, alarm in and output, power, RJ45 etc. |
