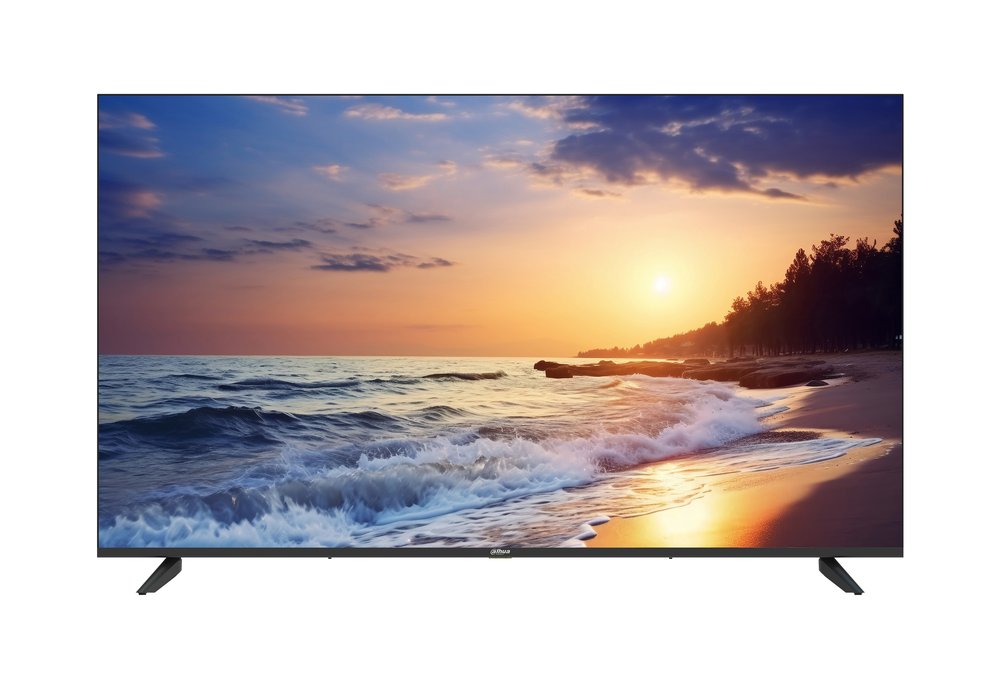

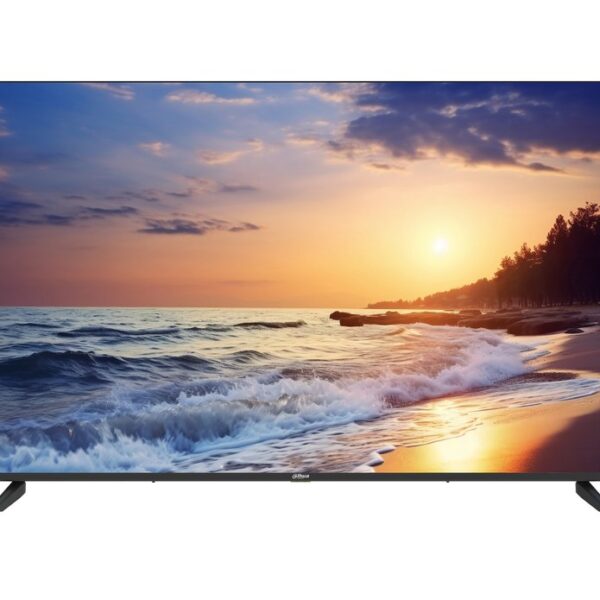

Monitor DLED da 55" 4K UHD formato 16:9, risoluzione 3840×2160, contrasto 5000:1, luminosità 400 cd/m2, angolo di visione 178°/178°, 2 HDMI 2.0, 2 USB 2.0, 1 VGA, 1 audio in, 1 RS232, 1 uscita audio, 2 speaker 10 W, VESA 200×300 mm, alimentazione 100~240 Vac <104 W
Datasheet
Manuali
| Display | |
| Model | DHI-LM55-F400N |
| LCD Technology | VA |
| Backlight | DLED |
| Screen Size | 55 inch |
| Aspect Ratio | 16:9 |
| Viewing Size | 1209.6 (W) × 680.4 (H) mm |
| Screen-to-Body Ratio | ≥95% |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Mode | Horizontal |
| Pixel Pitch | 0.315 mm × 0.315 mm |
| Pixels Per Inch | 80.7 |
| Resolution | 3840 (H) × 2160 (V) |
| Refresh Rate | 60 Hz |
| Display Color | 8 bit + FRC |
| Color Gamut | 72% NTSC |
| Brightness | 400 cd/m² (typ.) |
| Contrast Ratio | 5000:1 |
| Input Port | 1080@60 Hz), 2 × USB 2.0, 1 × Audio in, 1 × RS-232 in |
| Output Port | 1 × Audio out |
| Speaker | 2 × 10 W |
| Power Supply | 100–240 VAC (±10%), 50/60 Hz |
| Power Type | Built-in Power |
| Power Consumption | 72 W (basic), 98 W (typ.), 104 W (max) |
| Standby Power | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10%–85% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| General | |
| Product Dimensions | 3.21") (W × H × D), without base 1,320 mm × 805 mm × 125 mm (51.97" × 35.63" × |
| Package Size | 4.92") (W × H × D) |
| Frame Width | U/L/R/D: 1.1 mm/1.1 mm/1.1 mm/14.8 mm |
| Net Weight | 9.85 kg (21.72 lb) |
| Gross Weight | 13.20 kg (29.10 lb) |
| Casing Color | Black |
| Control Mode | Remote Control, RS-232 |
| Status Indicator Light | Yes |
| Wall Mount VESA | 200 mm × 300 mm (7.87" × 11.81") Power cord, base, HDMI cable, remote control, user's |
| Accessory | manual, legal and regulatory information etc. |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 55" UHD LED |
| LED Monitor | DHI-LM55-F400N Monitor |
