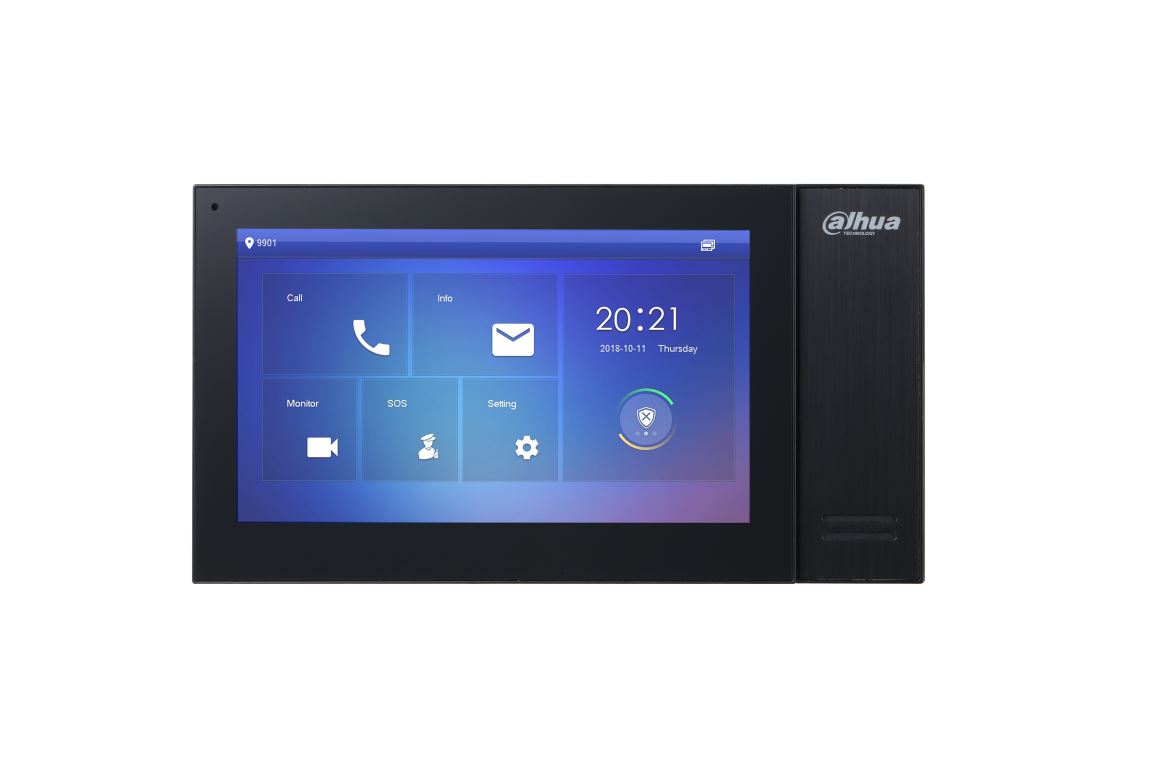

Monitor interno VTH IP 7" nero
Monitor interno videocitofonico IP con finiture nere, display LCD da 7", risoluzione 1024×600, 1 porta LAN 100 Mbps, touch screen capacitivo, 6 ingressi e 1 uscita allarme, mirco SD 8 GB embedded, montaggio a parete o desktop (con staffa VTM123), alimentazione 12 Vdc/PoE <6 W
Datasheet
| Main Processor | High performace embedded processor |
| Operating System | Embedded LINUX OS |
| Screen Type | Capacitive screen |
| Display | |
| Resolution | 1024 × 600 |
| Video Compression | H.264 |
| Audio Compression | G.711A/G.711U/PCM |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| Audio Mode | Support dual-way bidirectional talk |
| Audio Enhancement | Support echo cancellation/DNR |
| Audio Bit Rate | 16 kbps |
| Communication Mode | Full digital Support to receive and view notifications issued by |
| Information Release | center |
| Leave Videos or Text Messages | Support |
| DND Mode | Support to set DND period |
| Sub-station Quantity | 9 |
| Alarm Input | 6 channel (switch quantity) |
| Alarm Output | 1 channel |
| Network | |
| SOS Alarm | Support |
| Casing | PC+ABS |
| Appearance Color | Appearance Color |
| Power Supply | Power Supply |
| Installation | Wall mount Default bracket |
| Accessories | |
| Dimensions | (4.71" × 8.72" × 0.85") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH-95%RH |
| Power Consumption | Standby≤4W, work≤6W |
| Gross Weight | 0.35 Kg (0.77 lb) |
| Power supply mode | PoE Built-in 8GB SD card, maximum memory capacity |
