Modulo 5 tasti per VTO4202FB-P/VTO4103FB

Name: Modulo 5 tasti per VTO4202FB-P/VTO4103FB
Brand: Dahua
SKU: VTO4202FB-MB5
Price: 85.40 EUR
Availability: BackOrder

Dahua

COD: VTO4202FB-MB5 Categoria: Moduli espansione videocitofonia Tag: IP

85,40 € IVA inclusa

Prezzo precedente più basso negli ultimi 30 giorni: 170,80 €

Installatore o Rivenditore?
Registrati oppure Accedi per vedere il prezzo riservato.

Compara

Caratteristiche Specifiche tecniche Download

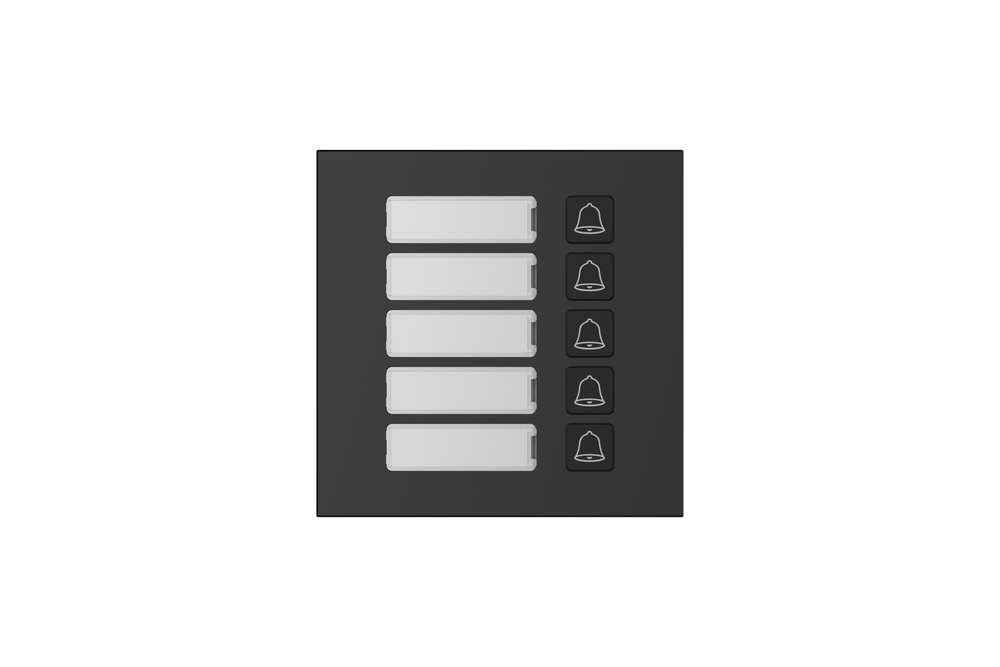

Modulo 5 tasti meccanici per VTO4202FB-P/VTO4103FB in alluminio IP65 antivandalo IK07, portanomi retroilluminati, alimentazione fornita da VTO4202FB-P <1 W

Datasheet

Scheda Tecnica

Manuali

Model	DHI-VTO4202FB-MB1
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.20")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤0.5 W
Gross Weight	0.18 kg (0.40 lb)
Model	DHI-VTO4202FB-MB2
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 30.50 mm (3.94" × 1.97" × 1.2")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤0.5 W
Gross Weight	0.17 kg (0.37 lb)
Model	DHI-VTO4202FB-MB5
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 100 mm × 30.50 mm (3.94" × 3.94" × 1.2")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤0.5 W
Gross Weight	0.31 kg (0.68 lb)
Model	DHI-VTO4202FB-MDB2
Mechanical
Number of Buttons	2
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (Provide power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (Provided with power by other modules)
Certifications
Product Dimensions	100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")
Protection	IK07; IP65 (Silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption	≤0.2 W (standby), ≤0.6 W (working)
Gross Weight	0.23 kg (0.51 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH)
Model	DHI-VTO4202FB-MDB4
Mechanical
Number of Buttons	4
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (Provide power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (Provided with power by other modules)
Certifications
Product Dimensions	100.0 mm × 50.0 mm × 26 mm (3.94" × 1.97" × 1.02")
Protection	IK07; IP65 (Silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption	≤0.2 W (standby), ≤0.6 W (working)
Gross Weight	0.24 kg (0.53 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH)
Model	DHI-VTO4202FB-MDB10
Mechanical
Number of Buttons	10
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (Provide power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (Provided with power by other modules)
Certifications
Product Dimensions	100.0 mm × 100.0 mm × 26 mm (3.94" × 3.94" × 1.02")
Protection	IK07; IP65 (Silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–3,000 m (0 ft–9,842.52 ft)
Power Consumption	≤0.2 W (standby), ≤0.6 W (working)
Gross Weight	0.33 kg (0.73 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH)
Model	DHI-VTO4202FB-MF
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 100 mm × 38.50 mm (3.94" × 3.94" × 1.52")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤0.5 W
Gross Weight	0.33 kg (0.73 lb)
Model	DHI-VTO4202FB-MI
System
Casing Material	Aluminum
General
Appearance Color	Black
Power Supply	5 VDC (Provided with power by other modules)
Certifications
Product Dimensions	100.0 mm × 100.0 mm × 28.5 mm (3.94" × 3.94" × 1.12")
Protection	IK07; IP65 (silicone sealant is needed for installation)
Operating Temperature	–30°C to +60°C (–22°F to +140°F)
Operating Humidity	10%–90% (RH), non-condensing
Operating Environment	Outdoor
Operating Altitude	0 m–3000 m (0 ft–9842.52 ft)
Power Consumption	≤0.5 W
Gross Weight	0.28 kg (0.62 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH), non-condensing
Model	DHI-VTO4202FB-MK
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 100 mm × 31 mm (3.94" × 3.94" × 1.22")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤0.5 W
Gross Weight	0.32 kg (0.71 lb)
Model	DHI-VTO4202FB-ML
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤2 W
Gross Weight	0.19 kg (0.42 lb)
Model	DHI-VTO4202FB-MN
Performance
Casing Material	Aluminum alloy
General
Appearance Color	Black
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Gross Weight	0.17 kg (0.37 lb)
Power Consumption	≤0.5 W
Gross Weight	0.32 kg (0.71 lb)
Model	DHI-VTO4202FB-MR
System
Main Processor	Embedded Processor
Function
Card Type	IC card
Rfid
Modulation Type	AM
Frequency Range	13.56 MHz
Max. Transmission	42dBuA/m @10m
Performance
Card Reading Distance	1 cm–3 cm (0.39"–1.18")
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤2 W
Gross Weight	0.16 kg (0.35 lb)
Model	DHI-VTO4202FB-MR1
System
Main Processor	Embedded Processor
Function
Card Type	ID card
Rfid
Modulation Type	AM
Frequency Range	125kHz
Max. Transmission	66dBuA/m @10m
Performance
Card Reading Distance	1 cm–3 cm (0.39"–1.18")
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 50.0 mm × 28.50 mm (3.94" × 1.97" × 1.12")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤2 W
Gross Weight	0.16 kg (0.35 lb)
Model	DHI-VTO4202FB-MS
System
Main Processor	Embedded Processor
Performance
Casing Material	Aluminum alloy
Port
Power Output	5 VDC (provides power for other modules)
General
Appearance Color	Black
Power Supply	5 VDC (provided by other modules)
Installation	Flush Mount;Surface Mount
Product Dimensions	100 mm × 100 mm × 28.50 mm (3.94" × 3.94" × 1.12")
Protection	IK07;IP65(silicone sealant is needed for installation)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH)
Power Consumption	≤2 W
Gross Weight	0.34 kg (0.75 lb)
Model	DHI-VTO4202FB-MV
Feture	It is used to install the Vigik module.
Performance
Casing Material	Aluminum alloy
General
Appearance Color	Black
Product Dimensions	100.0 mm × 50.0 mm × 6 mm (3.94" × 1.97" × 0.24")
Protection	IK07
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	10%–90% (RH, non-condensing)
Operating Environment	Outdoor
Operating Altitude	0 m–3,000 m (0 ft–9,842.52 ft)
Gross Weight	0.28 kg (0.62 lb)
Storage Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity	30%–75% (RH)
Dimensions (Mm[Inch])
100.0	[3.94]
50.0	DHI-VTO4202FB-MDB2 26.0 [1.02] 6.0 [0.24]
100.0	[3.94]
50.0	DHI-VTO4202FB-MDB4 26.0 [1.02] 6.0 [0.24]
100.0	[3.94]
100.0	DHI-VTO4202FB-MDB10
DHI-VTO4202FB-MR.DHI-VTO4202FB-MR1	DHI-VTO4202FB-MS DHI-VTO4202FB-MV
